EPRO SDM010

Description

Product Description

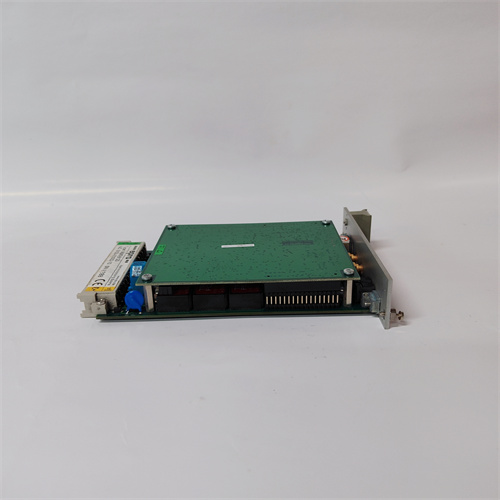

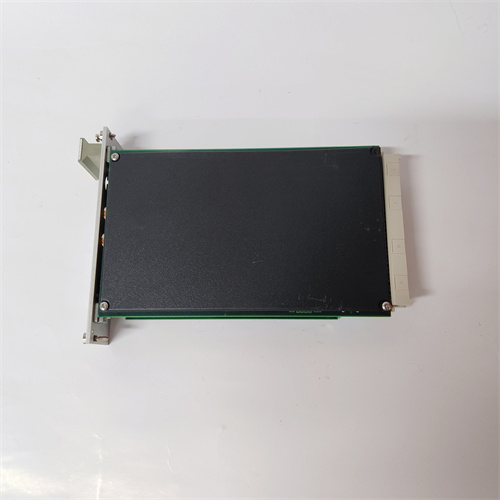

The EPRO SDM010 is a universal 4-channel monitoring module designed for continuous condition monitoring and protection of rotating machinery. Part of the EPRO MMS 6000 series, this module is a versatile front-end that accepts inputs from a wide variety of sensors, making it a core component for machinery health management systems. The primary function of the SDM010 is to acquire, condition, and process signals from vibration, position, speed, and other transducers, converting them into standardized data for analysis, display, and protective actions. Installing the EPRO SDM010 provides a reliable and flexible solution for safeguarding critical assets like turbines, compressors, pumps, and fans by detecting mechanical faults at an early stage.

Technical Parameters

• Device Type: Universal 4-Channel Monitoring Module (Vibration / Position / Speed).
• Manufacturer: EPRO (Part of Baker Hughes).
• Product Family: MMS 6000 Machinery Monitoring System.
• Input Channels: 4 independent, configurable channels.
• Compatible Sensor Types:
  • Vibration: Proximity probes (eddy current), velocity sensors, accelerometers (including IEPE).
  • Position: Proximity probes for axial position, differential expansion, eccentricity.
  • Speed: Magnetic pickups (MPU), proximity probes for keyphasor® (phase reference).
• Signal Processing: Simultaneous measurement of static (DC, e.g., gap voltage) and dynamic (AC, e.g., vibration) components. Integrates acceleration to velocity.
• Dynamic Range & Frequency Response: Wide range suitable for most machinery, typically from a few Hz to several kHz.
• Outputs: Provides conditioned analog outputs (e.g., 4-20 mA for vibration and position), digital alarms (Alert, Danger), and a buffered raw sensor signal for external analysis.
• Communication: Typically connects via a proprietary bus (e.g., to an EPRO PR 6424 converter) or integrates into larger EPRO/BN systems. May have Modbus or other digital interfaces depending on the system architecture.
• Configuration: Set via DIP switches or software for sensor type, measurement range, and alarm setpoints.

Advantages and Features

• Exceptional Versatility and Flexibility: The SDM010‘s ability to accept nearly any type of machinery sensor with simple configuration makes it a universal building block, reducing spare parts inventory and simplifying system design for diverse equipment.
• High Reliability and Robustness: Designed for continuous operation in harsh industrial environments with high immunity to electromagnetic interference (EMI), ensuring trustworthy measurements for protective functions.
• Comprehensive Signal Conditioning: Provides built-in power for sensors (e.g., -24 V DC for proximity probes, constant current for IEPE), filtering, and integration, delivering ready-to-use process variables.
• Early Fault Detection: By providing precise measurements of vibration, position, and speed, the EPRO SDM010 enables the detection of unbalance, misalignment, bearing wear, rubbing, and other common machinery faults long before catastrophic failure.
• Seamless System Integration: Acts as a perfect field interface for the broader EPRO MMS 6000 monitoring system and can often be integrated with other major systems like Bently Nevada or plant DCS/PLC networks.

Application Cases in Various Fields

• Steam & Gas Turbines (Power Generation): Monitoring radial vibration (X-Y probes), axial position, casing expansion, and speed for protection and efficiency optimization.
• Centrifugal & Reciprocating Compressors (Oil & Gas): Vibration monitoring to prevent blade and bearing failures, critical for upstream and midstream operations.
• Large Motors, Pumps, and Fans (Heavy Industry): Protecting drive trains in mining, chemical, and water treatment plants from mechanical degradation.
• Paper Machine Rolls (Pulp & Paper): Monitoring vibration and roll eccentricity to maintain product quality and prevent downtime.
• Geartoxes and Driven Equipment: Monitoring gearmesh frequencies and overall vibration to predict gear and bearing failures.

Comparison with Competing Products

The EPRO SDM010 competes with similar universal monitoring modules from other specialized vendors like Bently Nevada (3500 System) and Emerson (CSI 6500 ATG). Its key differentiators include:

• Sensor Agnosticism: Renowned for its exceptional flexibility in connecting to any major brand of sensor without external converters, often seen as more versatile than some competitor modules which may be optimized for their own sensor lines.
• Simplicity and Robustness: The EPRO SDM010 is often praised for its straightforward, robust design focused on core measurement integrity, sometimes contrasted with more complex, feature-rich (and costly) alternatives.
• Strong Heritage in Critical Machinery: EPRO, like Bently Nevada, has a decades-long reputation in the turbo-machinery sector, ensuring designs are proven for the most critical applications.

Selection Suggestions and Precautions

1. Define Measurement Points Clearly: Plan each channel’s purpose (e.g., radial vibration, keyphasor, position) and select the appropriate sensor type. The SDM010‘s flexibility is maximized with proper planning.
2. Verify System Compatibility: Ensure the SDM010 is compatible with the intended data acquisition system, whether it’s an EPRO MMS 6000 rack, a PR 6424 converter, or a third-party interface. Check communication and power requirements.
3. Proper Sensor Installation and Cabling: The module’s performance depends entirely on sensor signal quality. Follow strict guidelines for probe gap setting, cable routing (using shielded cables), and grounding to avoid noise.
4. Accurate Configuration: Correctly set the DIP switches or software parameters for sensor type, sensitivity, and measurement range. Incorrect settings will lead to faulty readings and potentially missed alarms.
5. Regular Calibration and Verification: Include the EPRO SDM010 channels in a periodic calibration schedule. Verify alarm setpoints and system response through functional testing to ensure the protection loop is always operational.
