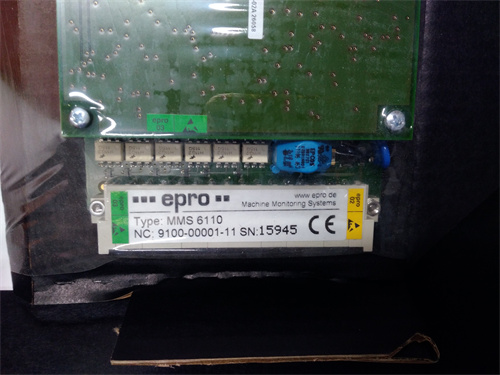

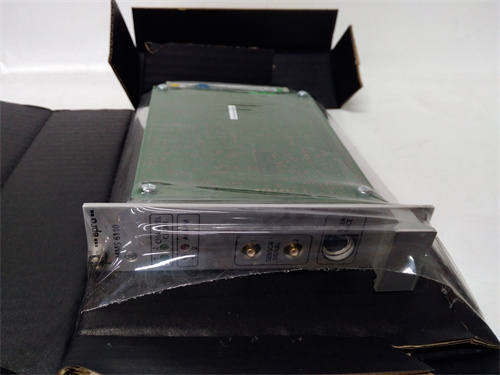

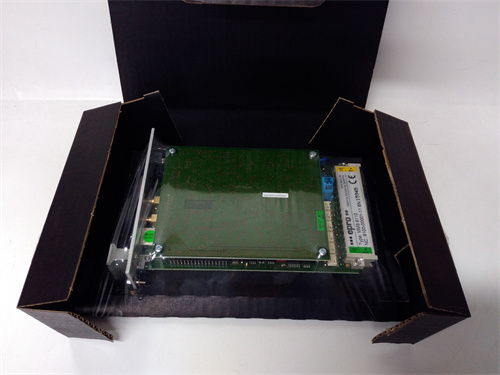

EPRO MMS6110

Description

EPRO MMS6110 Product Overview

EPRO MMS6110 is a specialized dual-channel shaft vibration monitor module designed by EPRO, a renowned leader in condition monitoring and protection systems for rotating machinery. As an integral component of the MMS 6000 series, this module provides continuous, real-time monitoring of radial shaft vibration relative to the machine casing. The EPRO MMS6110 is engineered to interface directly with eddy-current proximity probes, processing raw signals to deliver critical vibration data for predictive maintenance and machine protection. The EPRO MMS6110 is widely recognized in the turbomachinery industry for its precision, reliability, and compliance with API 670 standards. When safeguarding critical rotating assets such as turbines, compressors, and pumps, the EPRO MMS6110 represents a genuine, high-integrity monitoring solution.

Product Parameters and Technical Specifications

The technical specifications of the EPRO MMS6110 highlight its capabilities as a precision vibration monitoring instrument.

• Model Number: MMS6110
• Series: MMS 6000 (Modular Monitoring System)
• Product Type: Dual-Channel Shaft Vibration Monitor
• Input Channels: Two independent input channels for eddy-current proximity probes (typically EPRO PR642x series)
• Measurements: Radial shaft vibration (peak-to-peak amplitude), shaft relative position (gap voltage)
• Frequency Range: Typically 1 Hz to 10 kHz, covering the full range of machine vibration frequencies
• Outputs: Dual programmable current outputs (4-20 mA) per channel for vibration and position signals
• Alarm Relays: Multiple programmable alarm relays for warning, danger, and channel OK status
• Buffered Outputs: Provides raw probe signals for external analysis equipment (spectrum analyzers, data collectors)
• Communication: RS-232/485 interface for configuration and communication with higher-level systems
• Compliance: Designed to meet API 670 standard requirements for machinery protection systems
• Mounting: 19-inch rack-mountable Eurocard format for MMS 6000 series racks

Advantages and Core Features

The EPRO MMS6110 offers distinct advantages for machinery protection and condition monitoring applications. Its primary feature is the dual-channel independent operation, allowing two separate vibration measurements from a single module, maximizing rack space efficiency. The module provides true peak-to-peak vibration measurement based on full waveform analysis, ensuring accurate representation of machine condition regardless of waveform shape. Furthermore, the EPRO MMS6110 includes comprehensive self-diagnostics that continuously monitor probe integrity, cable condition, and internal electronics, automatically triggering alarms if any fault is detected. The module’s programmable architecture allows customization of measurement ranges, alarm setpoints, and time delays to match specific machine requirements. With its robust construction, the MMS6110 is designed for continuous operation in harsh industrial environments typical of power plants and refineries. The EPRO MMS6110 also features front-panel LED indicators for quick visual assessment of channel status and alarm conditions.

Application Cases in Key Industries

The EPRO MMS6110 is deployed across industries where rotating machinery reliability is critical to operations.

• Power Generation: Used on steam turbines, gas turbines, and generators in thermal, nuclear, and combined-cycle power plants to monitor shaft vibration and prevent catastrophic failures.
• Oil and Gas: Employed on high-speed compressors, pumps, and expanders in upstream production, midstream pipeline, and downstream refining applications.
• Petrochemical Processing: Integrated into critical rotating equipment in ethylene plants, refineries, and chemical facilities where unplanned downtime has significant financial impact.
• Aerospace Testing: Utilized in jet engine test cells to monitor vibration during development and certification testing.
• Marine Propulsion: Deployed on main propulsion turbines and generators aboard naval vessels and large commercial ships.

Competitive Comparison

When compared to competing machinery monitoring systems from Bently Nevada (3500 series) or Vibro-Meter (VM600 series), the EPRO MMS6110 offers specific advantages in certain applications. While Bently Nevada dominates the North American market, the EPRO MMS6110 is widely preferred in European and Asian installations, particularly where EPRO probes are already installed. Compared to the Bently 3500/40 vibration monitor, the MMS6110 offers similar functionality with slightly different configuration philosophy and user interface. The EPRO MMS6110 benefits from EPRO’s specialization in eddy-current probe technology, ensuring perfect compatibility with PR642x series probes. For facilities already using EPRO monitoring systems, the EPRO MMS6110 provides seamless integration with existing racks, power supplies, and communication modules, simplifying maintenance and sparing.

Selection Suggestions and Precautions

When selecting or deploying an EPRO MMS6110, several critical factors require careful consideration.

1. Probe Compatibility: Verify that your eddy-current probes (typically EPRO PR642x series) are compatible with the EPRO MMS6110 and that extension cables and connectors match the module’s input requirements.
2. System Configuration: Ensure the MMS6110 is properly configured for your specific machine type, including measurement ranges, alarm setpoints, and time delays before installation.
3. Rack Compatibility: Confirm that your MMS 6000 series rack has an available slot and adequate power supply capacity for the EPRO MMS6110.
4. Calibration Status: Check the calibration status of the MMS6110 and schedule recalibration if required for your measurement accuracy needs, particularly for safety-related applications.
5. Programming Software: Ensure access to the appropriate EPRO configuration software and interface cables for programming the EPRO MMS6110 module.
6. Environmental Considerations: Verify that the installation environment (temperature, vibration, contamination) falls within the module’s specified operating range for reliable long-term operation.
7. Genuine Sourcing: Source EPRO MMS6110 modules from authorized distributors to ensure authenticity, as counterfeit or improperly refurbished modules in protection applications can lead to undetected machine faults and catastrophic failures.
