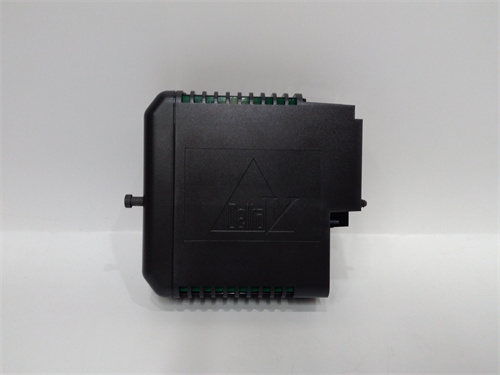

EMERSON VE4003S2B1

EMERSON VE4003S2B1 is an 8-channel 4-20mA HART analog input module for Emerson’s DeltaV DCS, built to integrate with PLC/DCS in oil & gas, chemical, power, and pharma industries. As a core I/O component, EMERSON VE4003S2B1 converts field instrument signals to digital data, supporting HART for smart device configuration and diagnostics.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

EMERSON VE4003S2B1 is an 8-channel 4-20mA HART analog input module for Emerson’s DeltaV DCS, built to integrate with PLC/DCS in oil & gas, chemical, power, and pharma industries. As a core I/O component, EMERSON VE4003S2B1 converts field instrument signals to digital data, supporting HART for smart device configuration and diagnostics. EMERSON VE4003S2B1 features 16-bit A/D conversion, channel isolation, and industrial-grade durability, ensuring reliable data acquisition in harsh conditions. Its plug-and-play DeltaV compatibility and HART support make EMERSON VE4003S2B1 ideal for upgrading legacy I/O or building new setups. Whether monitoring flow, pressure, or temperature, EMERSON VE4003S2B1 delivers precise, real-time data to optimize process control and reduce operational risks. It pairs with the KJ4001X1-CA1 termination block for seamless installation, further enhancing its usability in industrial environments.

Technical Parameters EMERSON VE4003S2B1

Parameter Item Parameter Value
Product Model EMERSON VE4003S2B1
Product Type 8-channel 4-20mA HART Analog Input Module (DeltaV Series 2)
Number of Channels 8 isolated channels
Input Signal 4-20mA current (HART-enabled); 1-22.5mA full range
Communication HART, DeltaV LocalBus
Accuracy ±0.1% of span (over temp range)
Resolution 16-bit A/D converter
Isolation Channel-to-channel, channel-to-ground
Power Supply 24VDC field circuit (300mA max per card)
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Termination Block KJ4001X1-CA1 (paired with KJ3222X1-BA1)
Weight 0.09kg (0.20 lbs)
Protection Rating IP20

Advantages and Features EMERSON VE4003S2B1

  1. 8-Channel High Density: EMERSON VE4003S2B1 fits 8 isolated channels in a compact form to maximize I/O rack space.
  2. HART Communication: Supports HART for remote configuration, calibration, and diagnostics without process disruption.
  3. High Precision: 16-bit resolution and ±0.1% accuracy ensure consistent, reliable measurements.
  4. Industrial-Grade Durability: Operates from -40°C to +70°C with channel isolation for harsh industrial settings.
  5. Seamless DeltaV Integration: Plug-and-play with DeltaV systems reduces setup time and ensures compatibility.

Application Cases

  1. Chemical Plant Process Monitoring: A petrochemical plant used EMERSON VE4003S2B1 to monitor 8 pressure transmitters. HART diagnostics detected a failing unit early, avoiding a 3-hour shutdown and $150k in losses.
  2. Power Plant Boiler Control: A 600MW plant integrated EMERSON VE4003S2B1 for temperature/flow monitoring. Its accuracy maintained stable boiler operation during load changes, cutting fuel waste by 8%.
  3. Pharmaceutical Batch Processing: A drugmaker deployed EMERSON VE4003S2B1 for precise flow control. HART allowed remote calibration, reducing maintenance time by 40% and improving batch consistency.

Competitor Comparison

Comparison Item EMERSON VE4003S2B1 Honeywell HC900 AI Module Siemens S7-1500 AI 8×4-20mA
Channels 8 (4-20mA HART) 4 (4-20mA) 8 (4-20mA, no HART)
Communication HART, DeltaV LocalBus Modbus RTU PROFINET
Accuracy ±0.1% of span ±0.2% of span ±0.15% of span
Isolation Channel-to-channel No Channel-to-channel
Operating Temp -40°C to +70°C -20°C to +60°C -25°C to +60°C
Compatibility DeltaV, PLC, DCS HC900 only S7-1500 only
Estimated Price (USD) ~$2,200 ~$1,800 ~$2,000

Selection Suggestions

  1. Choose EMERSON VE4003S2B1 for DeltaV users to leverage seamless LocalBus integration and HART smart device support.
  2. Select EMERSON VE4003S2B1 for process industries needing 8-channel 4-20mA input with diagnostic capabilities.
  3. Opt for EMERSON VE4003S2B1 in harsh environments (-40°C to +70°C) for reliable long-term operation.
  4. Use EMERSON VE4003S2B1 when upgrading to HART-enabled systems to improve maintenance efficiency.

Precautions

  1. Pair EMERSON VE4003S2B1 with the KJ4001X1-CA1 termination block for proper signal/power connections.
  2. Use HART-compatible instruments to unlock EMERSON VE4003S2B1’s full diagnostic and configuration features.
  3. Ensure stable 24VDC power (300mA max per card) to prevent signal drift or module malfunction.
  4. Follow DeltaV LocalBus guidelines for installation to ensure reliable communication with the controller.
