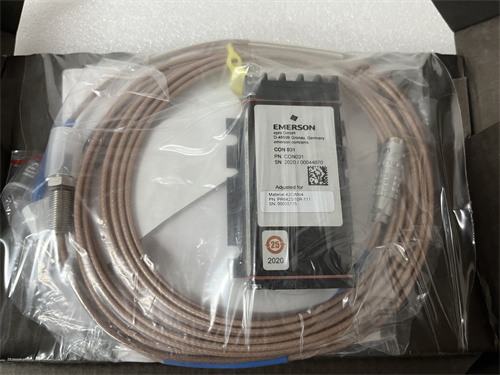

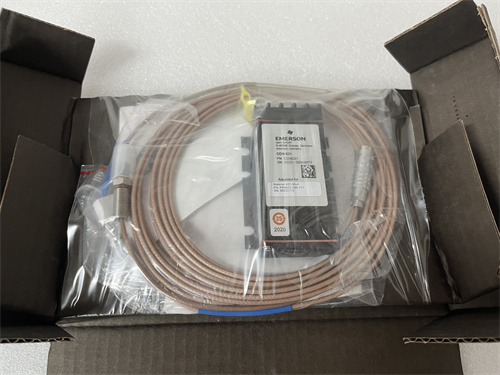

EMERSON CON01

Description

Product Overview

Technical Parameters of EMERSON CON01

• Device Type: Industrial signal concentrator for Emerson DeltaV/Ovation DCS.
• Analog Input Specifications:
  • Quantity: 8 channels
  • Signal Type: 4–20 mA DC
  • Resolution: 16 bits
  • Accuracy: ≤±0.05% of full scale (at 25 °C)
  • Isolation: 1500 V AC (between channels, inputs, and outputs)
  • Max Input Current: 30 mA (overload protection)
• Discrete I/O Specifications:
  • Inputs: 4 channels, 24 V DC ±10%, sensitivity ≤5 mA
  • Outputs: 4 channels, 24 V DC, max output current 1 A (configurable NO/NC)
  • Protection: Built-in 1.2 A fuse per output
• Communication Interfaces:
  • Emerson DCS Connection: RS485 (Modbus RTU), baud rate 9600–115200 bps
  • Configuration: USB 2.0 (for PC connection to Emerson AMS Device Manager)
• Electrical Parameters:
  • Power Supply: 24 V DC ±10%
  • Power Consumption: ≤5 W (no output load); ≤8 W (max output load)
  • EMC Protection: Immunity per EN 61000-6-2, emissions per EN 61000-6-4
  • Temperature Drift: ≤±50 µV/°C (0 °C – +60 °C)
• Mechanical Parameters:
  • Mounting Type: DIN rail (35 mm width × 100 mm depth × 90 mm height)
  • Protection Class: IP20 (per EN 60529)
  • Housing Material: UL94 V-0 plastic (flame-retardant, chemical-resistant)
  • Indicators: LEDs for POWER (power), ANALOG (analog input activity), DIGITAL (discrete I/O activity), ERROR (fault)
• Operating Limits:
  • Operating Temperature: 0 °C – +60 °C
  • Storage Temperature: -25 °C – +70 °C
  • Relative Humidity: 5–95% (non-condensing)
  • Vibration Resistance: 10–500 Hz (0.15 mm amplitude, per IEC 60068-2-6)
  • Shock Resistance: 30 G (11 ms duration, per IEC 60068-2-27)
• Compatibility:
  • DCS/PLC: Emerson DeltaV, Emerson Ovation, Siemens S7-1500 (via Modbus RTU)
  • Sensors: Emerson Rosemount 3144P temperature sensors, Rosemount 3051 pressure sensors, Emerson Radar Master level transmitters
  • HMI Panels: Emerson DeltaV Operate, WEINTEK CMT2109X2
  • Configuration Software: Emerson AMS Device Manager v14.0+, web interface (for quick status checks)

Advantages and Features of EMERSON CON01

1. 1500 V AC Signal Isolation — Protection Against Distortion and Ground Loops: The isolated analog inputs of EMERSON CON01 ensure data accuracy in systems with varying potentials. In an oil and gas facility, where oil level sensors are mounted on tanks with +300 V potential (while the Emerson DeltaV DCS operates at 0 V ground), EMERSON CON01 blocks cross-circuit current flow—sensor signals remain undistorted, and the DCS accurately tracks oil levels. Without isolation, signals would be distorted by 5–10%, leading to incorrect pump control.
2. Real-Time Diagnostics — Minimize Downtime: EMERSON CON01’s diagnostic function reduces production downtime. In a power plant, where the module collects data from 4 turbine temperature sensors, a broken sensor cable triggers an immediate error signal to the DCS—technicians locate and replace the cable in 20 minutes. Without diagnostics, operators would only notice the issue when turbine temperature deviates, risking overheating and equipment failure.
3. High Accuracy (≤±0.05%) — Reliability for Critical Processes: The precision of EMERSON CON01 is critical for processes with strict tolerances. In a pharmaceutical chemical plant, during drug synthesis, the module collects signals from a temperature sensor (4–20 mA, corresponding to 20 °C – 80 °C). At an actual temperature of 50 °C, the sensor sends a 12 mA signal, and EMERSON CON01 transmits it to the DCS as 12.0006 mA (error ≤±0.005%). This allows the DCS to regulate temperature precisely, ensuring drug quality (temperature tolerance ≤±0.1 °C).
4. Compact Design & Emerson DCS Compatibility — Space Savings and Easy Integration: With a 35 mm width and specialized design for Emerson DeltaV/Ovation, EMERSON CON01 simplifies deployment. In a food processing plant using the Emerson DeltaV DCS for packaging line control, two EMERSON CON01 modules (aggregating 16 analog signals) occupy only 70 mm of DIN-rail space—far less than competing concentrators (45 mm width, requiring 90 mm). Integration via Modbus RTU takes 30 minutes, with no additional adapters needed.
5. Vibration Resistance & Harsh Environment Durability — Long Service Life: Compliant with IEC 60068-2-6 vibration standards and featuring a UL94 V-0 housing, EMERSON CON01 performs reliably in metallurgical and oil and gas settings. In a metallurgical workshop, where the module operates near crushing equipment (vibrations up to 0.15 mm), EMERSON CON01 maintains pressure sensor signal accuracy of ≤±0.05%—internal components remain undamaged, and the housing blocks dust and debris. The module’s Mean Time Between Failures (MTBF) is ≥60,000 hours.

Application Cases of EMERSON CON01 Across Industries

• Oil and Gas (Oil Terminal — Fuel Tanks): At an oil terminal, EMERSON CON01 monitors oil levels in 8 tanks. The module connects its analog inputs to 8 Emerson Radar Master level transmitters (4–20 mA signal: 4 mA = empty, 20 mA = full) and links to the Emerson DeltaV DCS via RS485 (Modbus RTU). The 1500 V AC isolation of EMERSON CON01 prevents signal distortion from tank ground loops. When oil reaches 90% capacity (18.4 mA signal), the module sends a command to the DCS, which stops the tank-filling pump. Real-time diagnostics alert operators to issues—for example, if a level transmitter sensor becomes contaminated, EMERSON CON01 triggers an error, prompting technician cleaning.
• Chemical Industry (Plastic Production Reactor): In a chemical plant, EMERSON CON01 collects reactor process data. Its analog inputs connect to 6 sensors: 4 Rosemount 3144P temperature sensors and 2 Rosemount 3051 pressure sensors. Discrete inputs link to 2 valve position sensors, and the module communicates with the Emerson Ovation DCS via Modbus RTU. If temperature exceeds 75 °C (14 mA signal), the DCS closes the hot steam valve via the module’s discrete outputs; if pressure drops below 5 MPa (8 mA signal), it opens the inert gas valve. Signal isolation ensures data remains undistorted by reactor electromagnetic interference.
• Power Industry (Hydropower Plant — Turbine Unit): At a hydropower plant, EMERSON CON01 monitors turbine parameters. Its analog inputs connect to 4 sensors: 2 oil temperature sensors and 2 vibration sensors (both 4–20 mA). Discrete outputs link to alarm beacons (for parameter overruns). The module sends data to the Emerson DeltaV DCS—if oil temperature exceeds 65 °C (16 mA) or vibration exceeds 0.1 mm (18 mA), EMERSON CON01 activates the beacon, and the DCS reduces turbine load. Real-time diagnostics enable quick resolution of issues like a broken vibration sensor cable—technicians fix the problem in 25 minutes without stopping the turbine.

Comparison with Competing Products

Selection Recommendations & Precautions

• Selection Tips:
  1. Choose EMERSON CON01 if you use Emerson DeltaV/Ovation DCS—native compatibility eliminates adapter costs.
  2. Prioritize EMERSON CON01 for critical processes (pharmaceuticals, oil refining) requiring ≤±0.05% accuracy and 1500 V AC isolation.
  3. Opt for EMERSON CON01 in space-constrained cabinets (35 mm width) or vibration-prone environments (metallurgy, mining).
• Precautions:
  1. Ensure the power supply matches 24 V DC ±10%—overvoltage will damage the module.
  2. Use shielded cables for analog inputs to reduce electromagnetic interference (critical in industrial settings with motors/reactors).
  3. Calibrate EMERSON CON01 via Emerson AMS Device Manager annually—environmental factors (temperature, humidity) may degrade accuracy over time.
  4. Avoid mounting the module near heat sources (e.g., furnace vents) or areas with condensation—operate within 0 °C – +60 °C and 5–95% non-condensing humidity.
