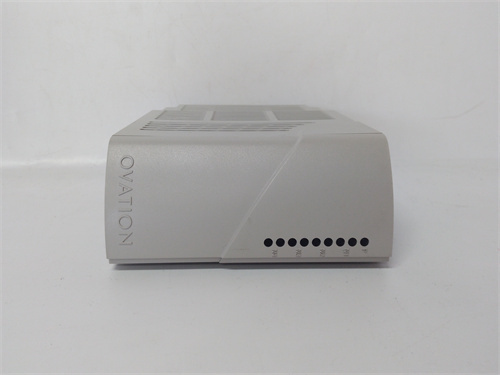

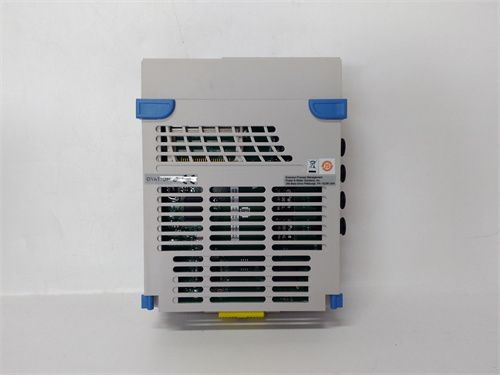

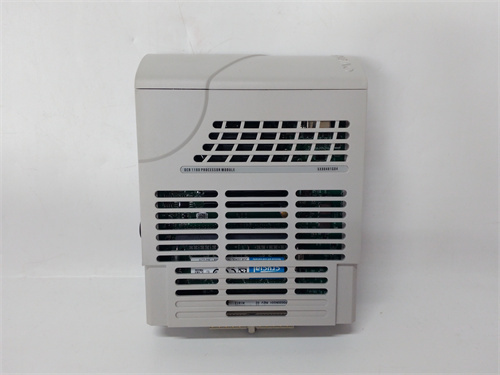

EMERSON 5X00481G04

Description

Product Description

The EMERSON 5X00481G04 is a high-performance input/output (I/O) module designed for Emerson’s Ovation distributed control system (DCS), specifically for safety-critical applications within the Ovation SIS (Safety Instrumented System) family. This module is engineered to interface with field devices in processes requiring the highest levels of safety integrity, such as Emergency Shutdown (ESD) and Fire & Gas (F&G) systems. The EMERSON 5X00481G04 provides a configurable set of digital or analog I/O channels with built-in diagnostics and redundancy support to achieve Safety Integrity Levels (SIL 2/SIL 3 per IEC 61508/61511). Its primary role is to reliably acquire signals from safety sensors (e.g., pressure switches, flame detectors) and execute commands to final elements (e.g., shutdown valves) based on logic from the safety controller. The robust and fault-tolerant design of the EMERSON 5X00481G04 makes it a cornerstone for protecting people, assets, and the environment in hazardous process industries. Integrating this specialized module, as per the EMERSON 5X00481G04 (https://www.example-link-emerson-product.com) specifications, is a critical step in implementing a certified safety instrumented function (SIF).

Product Parameters / Technical Specifications

• Manufacturer: EMERSON
• Product Family: Ovation SIS (Safety Instrumented System) I/O
• Module Type: Safety-rated Digital or Analog I/O Module
• Part Number: 5X00481G04
• I/O Type and Channels: Likely a 16-channel digital input (DI) module or an 8-channel analog input (AI) module, designed for safety applications. The “G04” suffix defines the exact type and configuration.
• Safety Certification: Certified for use in SIL 2 and SIL 3 safety loops.
• Diagnostics: Comprehensive on-board diagnostics for fault detection, including channel-level diagnostics for open wire, short circuit, out-of-range, and internal hardware faults.
• Redundancy Support: Designed to be used in redundant pairs (e.g., 1oo2, 2oo3 voting) to eliminate single points of failure and enhance system availability.
• Isolation: High degree of electrical isolation between channels and from the system bus to prevent fault propagation.
• Communication: Interfaces with the Ovation SIS controller via a secure, high-speed backplane bus.
• Configuration: Configured using Emerson’s Ovation SIS engineering tools, where safety logic and I/O parameters are defined.
• Power Supply: Requires power from the Ovation SIS rack, with possible external power for field circuits.

Advantages and Key Features

• Safety-Certified Design: The EMERSON 5X00481G04 is engineered and certified for safety-critical applications, providing assured reliability and diagnostic coverage required for SIL ratings.
• High Diagnostic Coverage (DC): Its extensive diagnostics enable the detection of dangerous failures, which is a fundamental requirement for achieving high Safety Integrity Levels.
• Fault Tolerance and Availability: Built-in support for redundant configurations ensures the safety function remains available even if a single module fails.
• Seamless Ovation SIS Integration: As a native component, it is fully supported within the Ovation SIS engineering and operational environment, ensuring correct configuration and system integrity.
• Robust Industrial Construction: Designed to withstand the electrical noise and environmental conditions of industrial plants, particularly in critical areas like oil & gas and chemical processing.

Application Cases in Various Fields

• Oil & Gas (ESD Systems): Monitoring critical pressure and temperature switches on a wellhead or pipeline and initiating a shutdown via safety valves.
• Chemical/Petrochemical Plants: Reading signals from toxic gas detectors or high-level switches in reactors to activate emergency isolation and mitigation systems.
• Power Generation (Burner Management): Providing safety-rated I/O for flame detection and fuel valve permissives in boiler protection systems.
• Pharmaceutical Manufacturing: Ensuring safety interlocks for reactor containment systems where over-pressure or temperature could lead to hazardous conditions.
• LNG Facilities: Interfacing with safety devices for leak detection and emergency shutdown in liquefaction and storage areas.

Comparison with Competing Products

The EMERSON 5X00481G04 competes with safety-rated I/O modules from other safety system specialists like HIMA (HIMatrix), Triconex (Tricon), and Siemens (S7-400F/FH). Its primary advantage is its deep integration within the Emerson Ovation DCS ecosystem, allowing for a tightly coupled control and safety architecture that can simplify engineering and operation for plants standardized on Ovation. Compared to using standard DCS or PLC I/O in a safety application, the 5X00481G04 provides the necessary diagnostic coverage, redundancy, and third-party certification that generic modules cannot offer.

Selection Suggestions and Precautions

• Selection Advice: Select the EMERSON 5X00481G04 when designing or expanding an Ovation-based Safety Instrumented System (SIS) that requires certified SIL 2 or SIL 3 I/O functionality. It is the appropriate choice for connecting critical sensors and actuators within a safety loop. The exact I/O type (DI or AI) and channel count must be verified based on the “G04” suffix and system documentation.
• Precautions:
  1. Safety Lifecycle Compliance: The use of this module must be part of a full safety lifecycle (IEC 61511), including a Process Hazard Analysis (PHA) and Safety Requirements Specification (SRS).
  2. Wiring and Separation: Safety I/O wiring must be physically segregated from standard control system wiring. Use dedicated cable trays and follow applicable standards (e.g., ISA 84, IEC 61511) for installation.
  3. Configuration and Proof Testing: The module must be correctly configured in the Ovation SIS software. Crucially, the entire safety loop must undergo regular proof testing to maintain the designed Safety Integrity Level.
  4. Bypass Management: Any temporary bypass of a channel or loop for maintenance must follow a strict Management of Change (MOC) and bypass approval procedure.
  5. Genuine and Certified Parts: Always use genuine Emerson/Ovation spare parts. The use of uncertified or counterfeit components invalidates the safety certification and compromises the integrity of the Safety Instrumented Function (SIF).
