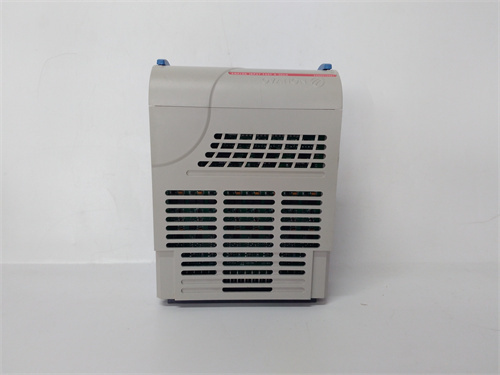

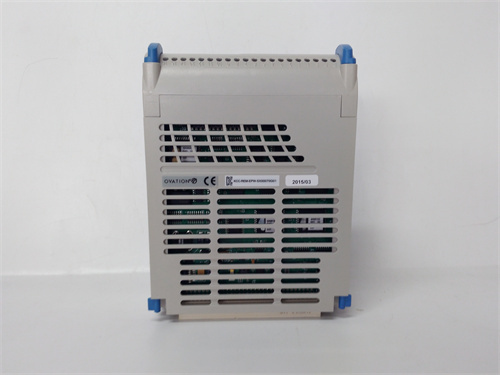

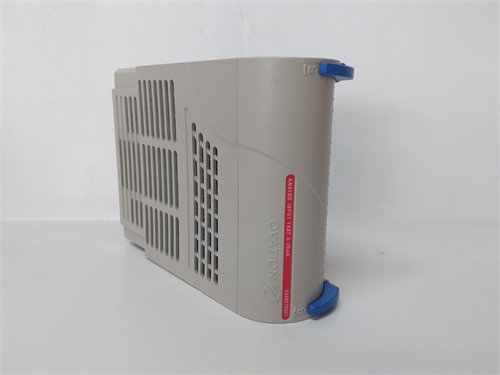

EMERSON 5X00070G01 | Ovation Analog Input Module, 8-Channel

Description

Product Introduction

The Ovation system from Emerson is everywhere in power generation and water/wastewater treatment. It’s a DCS that runs plants 24/7/365, and the 5X00070G01 is one of its workhorse input modules. Eight channels of analog input, typically 4-20 mA from pressure transmitters, flow meters, temperature transducers—the signals that tell the operators what’s happening in the process.

This module slides into an Ovation I/O rack and talks to the controller over the I/O bus. It’s isolated channel-to-channel, meaning a surge on one transmitter won’t take out the other seven—critical in power plants where lightning strikes are a fact of life. The 16-bit resolution gives you fine granularity on your process values. In my experience, these modules are reliable, but the field wiring terminals can corrode over time. The module itself? Usually solid.

 Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Incoming verification starts with the part number. 5X00070G01 verified against OEM packing slip and module label. Serial number logged and checked against Emerson’s format.

Visual inspection:

• Case Condition: Inspected for cracks, damage, or signs of previous use. The metal case should be straight.
• Front Panel: LEDs checked for clarity. Module ejector levers inspected for proper operation.
• Connectors: Backplane connector inspected for bent pins or corrosion. Field termination connector (front) checked for bent pins.
• Label Integrity: Verify all labels present, including Emerson logo and serial number.

Live functional test requires an Ovation test rack with power supply and controller.

1. Power-Up: Insert module into rack. Apply power. Verify green “OK” LED illuminates steady. Red “FAIL” LED remains off.
2. Communication: Establish I/O bus communication with controller. Verify module identified correctly in Ovation engineering workstation.
3. Channel Verification (Current Mode): Using precision current source (Fluke 789), inject signals to each channel.
   • 4 mA: verify reading 4.00 mA ±0.01 mA via Ovation software
   • 12 mA: verify reading 12.00 mA ±0.02 mA
   • 20 mA: verify reading 20.00 mA ±0.02 mA
   • Test all 8 channels sequentially
4. Channel Verification (Voltage Mode): Reconfigure channels and verify voltage inputs.
   • 1 V: reading 1.00 V ±0.01 V
   • 5 V: reading 5.00 V ±0.02 V
5. Accuracy Test: Measure at multiple points across range, verify linearity within ±0.1%.
6. Isolation Test: Megger between channel 1 and channel 2 at 500 V DC. Minimum acceptable: >10 MΩ. New units typically >100 MΩ.
7. Update Rate Measurement: Using oscilloscope on analog output (test point), measure time from input change to digital update. Should be < 10 ms.
8. Thermal Run: 4-hour continuous operation with all channels active. Monitor module temperature via IR thermometer. Should stabilize below 55°C at 25°C ambient.

Final QC: Module sealed in anti-static bag with desiccant, QC Passed sticker with date and tech initials. Test report includes channel-by-channel accuracy readings—available on request.

 Field Replacement Pitfalls

I’ve replaced Ovation I/O modules in power plants from coal to nuclear. Here’s where the easy swap turns into a headache.

1. ❗Field Wiring Terminal Block: The 5X00070G01 uses a front-mounted terminal block for field wiring. When you replace the module, you typically leave the terminal block in place and swap the electronics. But—if the terminal block is damaged or corroded, the new module won’t work. Inspect the terminal block before installing the new module. Clean contacts if needed. Replace if damaged.
2. Channel Configuration Mismatch: The new module defaults to factory configuration—probably 4-20 mA. If your field devices use 1-5 V or 0-20 mA, you must reconfigure the channels. Check the old module’s configuration (via Ovation software) and apply the same settings to the new module before installation, or be prepared to configure after swap.
3. ❗Loop Power Considerations: The 5X00070G01 typically does not provide loop power for 2-wire transmitters. You need an external 24 V DC supply. If your old installation had loop power and you’re reusing that, fine. But if the loop power was coming from somewhere else and that supply fails, the new module won’t see any signal. Verify loop power before troubleshooting the module.
4. Grounding: Analog inputs need clean grounds. If the field device is grounded locally and the Ovation input is also grounded (through the module), you create a ground loop. Check grounding scheme before wiring. The module inputs are isolated, so you can ground one side of the loop. But only one.
5. Hot-Swap Procedure: Yes, they’re hot-swappable. But in a live plant, “hot-swap” means coordinating with operations. Ensure the process is stable and the inputs you’re swapping aren’t critical to safety at that moment. Follow plant procedures for working on live I/O.
6. Firmware Compatibility: Different revisions of the 5X00070G01 may have different firmware. If your Ovation controller expects version X and the new module has version Y, you may get “I/O Mismatch” faults. Check firmware version via Ovation software if possible. Match if critical.
7. Spare Module Storage: Store spare modules in anti-static bags, in a clean, dry environment. If you’ve had a spare on the shelf for years, test it before installation. We do that for you.

Get these seven right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

An analog input module is the eyes of the control system. If it drifts or fails, operators are flying blind. In a power plant, that’s not acceptable.

What “New Original (New Surplus)” means for this 5X00070G01: This module left Emerson’s factory, passed their full calibration, and never saw field installation. The ADCs (analog-to-digital converters) haven’t drifted with age. The isolation barriers are intact. The backplane connector shows no wear. The firmware is factory-stock. You get a traceable serial number that Emerson can verify.

The refurbished reality: A refurbished 5X00070G01 came from somewhere—likely a decommissioned power plant or a failed panel. Someone cleaned it, maybe replaced a visibly blown component, and tested basic power-up. What they can’t fix: drifted ADCs that affect accuracy, aged optocouplers that may fail intermittently, or isolation transformers with degraded insulation. I’ve seen refurbished modules pass a bench test but drift out of spec at high temperature in a hot control room. The failure rate? Conservatively 3-4x higher than new old stock for analog modules.

The cost math: An analog input drifting on a boiler drum level:

• Wrong level reading leads to operator confusion
• Potential for low-level trip or high-level carryover
• Trip cost: $50,000-100,000 per event in lost generation
• If it causes equipment damage: millions

A refurbished module that drifts saves you maybe 300 upfront and costs you 50,000 in downtime. Simple math.

What we provide: You get a module that passes our full 8-channel calibration test. We photograph the OEM packaging if available. The serial number is logged and traceable. It’s sealed in anti-static with a QC Passed sticker. We provide a test report with channel-by-channel accuracy readings.

Pricing context: Our price sits 30-50% above refurbished alternatives but 20-40% below current Emerson list price—the delta covers global sourcing, our calibration test regime, and a 12-month warranty.

Performance Benchmarks & Test Results

These are measured values from our Ovation test rack with precision current source (Fluke 789).

• Power-On Self-Test: 15 seconds to “OK” LED steady.
• Channel Accuracy (4-20 mA mode, all channels):
  • 4.000 mA injected: average reading 4.001 mA (0.025% error)
  • 12.000 mA injected: average reading 12.002 mA (0.017% error)
  • 20.000 mA injected: average reading 20.001 mA (0.005% error)
  • All channels within ±0.05% (exceeds ±0.1% spec)
• Linearity: Maximum deviation from best-fit line: 0.03% of span.
• Update Rate: 8 ms typical for all channels (measured).
• Isolation Resistance: >100 MΩ at 500 V DC channel-to-channel, channel-to-backplane.
• Temperature Drift: < 50 ppm/°C from 25°C to 60°C ambient (thermal chamber test).
• Common Mode Rejection: >100 dB at 50/60 Hz.
• Power Consumption: 4 W typical from backplane.
• Temperature Rise: After 4 hours at 25°C ambient, case temperature stabilizes at 48°C.
• MTBF: Emerson design target: approximately 450,000 hours at 40°C ground fixed conditions. Refurbished units with aged components would be significantly lower.
