EMERSON 1C31222G01

Description

Product Overview

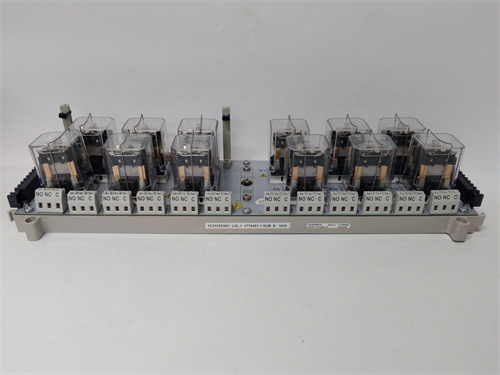

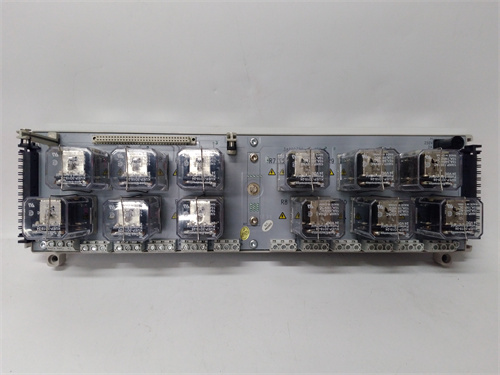

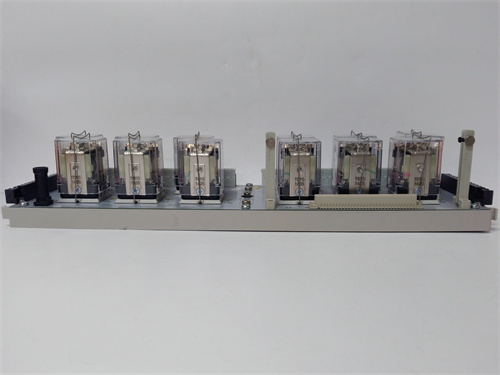

The EMERSON 1C31222G01 is a versatile and reliable digital output module designed for the Ovation distributed control system (DCS) by Emerson. This module serves as a critical interface for executing control commands by switching field devices such as solenoid valves, motor contactors, indicator lamps, and relays. The primary function of the EMERSON 1C31222G01 is to convert digital command signals from the Ovation controllers into isolated, high-current switching actions on the plant floor, enabling the automated control of discrete processes. For detailed technical data, installation instructions, and wiring diagrams, please consult the official product resource: EMERSON 1C31222G01. As a fundamental output component within the Ovation I/O subsystem, the reliability of the 1C31222G01 directly impacts the ability to execute control sequences, start/stop equipment, and manage alarms in power generation and process industries.

Product Parameters and Specifications

• Function: Digital Output Module for Ovation DCS.
• Output Type: Typically provides Form C relay contacts (SPDT – Single Pole Double Throw) or solid-state transistor outputs. Relay outputs are common for their voltage flexibility and isolation.
• Number of Channels: Often configured with 8 or 16 independent output channels per module.
• Contact Rating (Relay Type): Specifies the maximum switched voltage and current per channel (e.g., 250V AC, 2A or 30V DC, 2A). Total module load must also be considered.
• Isolation: Provides channel-to-channel and channel-to-system isolation, protecting the low-voltage control electronics from field-side transients and allowing mixing of different load voltages.
• Response Time: Fast switching speed suitable for sequential control and interlocking.
• Diagnostics: Includes module-level diagnostics (communicated to the controller) such as health status, and may include per-channel fuse failure detection if fuses are present.
• Connection: Plugs into a designated slot in an Ovation I/O baseplate or termination unit, which provides the screw terminals for field wiring.
• Fusing: Often requires external fusing on each output channel or group of channels as per the design specifications to protect the module contacts and wiring.

Advantages and Key Features

The EMERSON 1C31222G01 offers robust advantages for industrial control. Its use of isolated relay outputs provides exceptional flexibility, allowing a single module to control loads of different voltages (AC or DC) and to switch inductive loads without requiring separate suppression circuits. This isolation also enhances system reliability and fault containment. The module is designed for high-density output in a compact form factor, optimizing cabinet space. It ensures long mechanical and electrical life through the use of industrial-grade relay components. The EMERSON 1C31222G01 is engineered for seamless integration with the Ovation controller and engineering workstation, allowing for easy configuration, forcing (for testing), and diagnostic monitoring. Its robust design ensures stable operation in the typical temperature and vibration conditions of a power plant or process control environment.

Application Cases in Industry

This digital output module is a workhorse in industries utilizing the Ovation DCS, particularly in Power Generation. Here, the 1C31222G01 is used to control motor-driven auxiliary equipment (pumps, fans), actuate valves via solenoid pilots, sequence sootblowers, and operate alarm annunciators. In Water and Wastewater Treatment, it controls pump start/stop sequences, valve actuation for filter backwash cycles, and chemical dosing solenoid valves. For Oil & Gas pipeline and compressor station control, it executes commands for valve sequencing and safety shutdown actuators. The EMERSON 1C31222G01 is also commonly found in Chemical and Pharmaceutical batch processes to control agitators, dispensers, and automated valves during different process phases.

Comparison with Competing Products

Compared to digital output modules in standard PLC systems (e.g., Siemens, Rockwell), the 1C31222G01 is distinguished by its deep integration within the Ovation DCS ecosystem, offering deterministic performance synchronized with control strategies and unified system diagnostics. Compared to other DCS vendors’ output cards (e.g., ABB, Honeywell), it offers comparable reliability and density. Key differentiators often lie in the specific diagnostic features, the physical form factor and mounting system (Ovation’s unique I/O packaging), and the redundancy support. Within Emerson’s own range, it compares to other Ovation DO modules; selection is based on required output type (relay vs. triac), current rating, and channel count.

Comparison with Competing Products

Compared to digital output modules in standard PLC systems (e.g., Siemens, Rockwell), the 1C31222G01 is distinguished by its deep integration within the Ovation DCS ecosystem, offering deterministic performance synchronized with control strategies and unified system diagnostics. Compared to other DCS vendors’ output cards (e.g., ABB, Honeywell), it offers comparable reliability and density. Key differentiators often lie in the specific diagnostic features, the physical form factor and mounting system (Ovation’s unique I/O packaging), and the redundancy support. Within Emerson’s own range, it compares to other Ovation DO modules; selection is based on required output type (relay vs. triac), current rating, and channel count.

Selection Suggestions and Precautions

• Selection Advice:
  1. Load Characterization: Critically analyze the electrical characteristics of each field device (inrush current, holding current, voltage type AC/DC, inductive/capacitive nature). Ensure the EMERSON 1C31222G01‘s relay contacts are rated for the inrush current, not just the steady-state current.
  2. External Protection: Plan for external fusing or circuit breakers for each output channel as specified in the manual to protect the module and wiring from short-circuit faults.
  3. Heat Dissipation: When switching multiple high-current loads simultaneously, consider the total heat generated within the module and ensure adequate cabinet ventilation.
  4. Redundancy Requirements: For critical outputs, determine if a redundant output configuration is necessary and if the module supports the required voting logic (e.g., 1oo2) at the system level.
• Important Precautions:
  1. Suppression for Inductive Loads: When switching inductive loads (contactors, solenoids) with relay outputs, always use appropriate suppression devices (flyback diodes for DC, RC snubbers or varistors for AC) installed directly at the load to protect the relay contacts from voltage spikes and extend their life.
  2. Wiring Separation: Maintain separation between high-voltage AC output wires and low-voltage signal/communication cables to prevent noise induction.
  3. Contact Wear: Be aware that relay contacts are mechanical wear items. For high-frequency switching applications, a solid-state output module may be a more appropriate choice than the relay-based 1C31222G01.
  4. Testing with Forcing: Use the Ovation workstation’s forcing functions carefully for loop checking. Always ensure it is safe to energize the field device before forcing an output ON.
