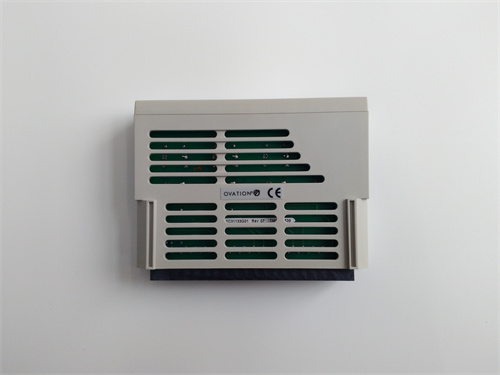

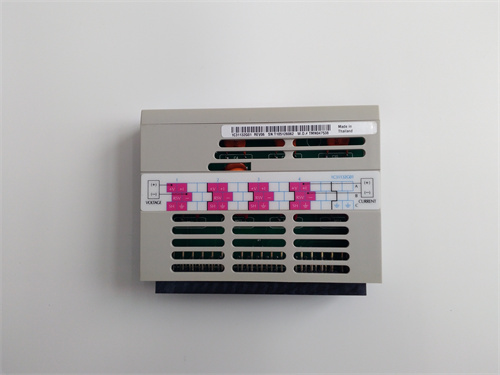

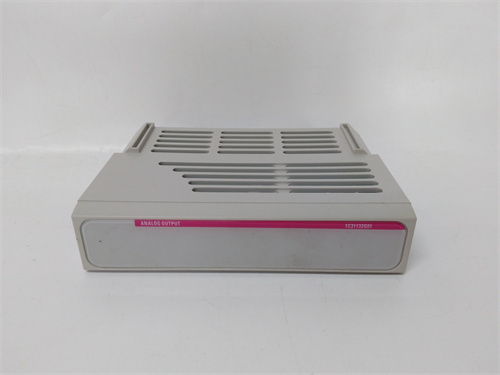

EMERSON 1C31132G01 | Analog Input Module, 8 Channels, 4-20 mA

Description

Product Introduction

That coal-fired plant in West Virginia—the one with the WDPF system that’s been running since the 80s—had a drum level trip last fall. The operators said the level was normal, but the control system saw low level and shut down the boiler. The techs checked the DP cell, the wiring, even the impulse lines. Nothing. I pulled the 1C31132G01 from the rack and bench-tested it. Channel 3 had a bad input amplifier—it was reading 8 mA when the input was 12 mA. That translated to a 30% error in drum level. One bad op-amp, one 1,500 module, one 50,000 outage.

The EMERSON 1C31132G01 is an 8-channel analog input module from the WDPF I/O family. It’s designed to interface with 4-20 mA transmitters—pressure, flow, level, temperature. Each channel is optically isolated from the backplane and from each other, so a surge on one input won’t take out the whole module. The module can provide 24V loop power for 2-wire transmitters (selectable per channel). It converts the current to a digital value with 12-bit resolution and makes it available to the control system. In a power plant, it’s reading everything from boiler drum level to feedwater flow to steam pressure.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

An analog input module gets a full calibration. Here’s our process.

1. Incoming Verification
   • Match the model: 1C31132G01. (There are variants—this is the standard version.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the terminal block—no cracks.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the loop power jumpers are set correctly (we set to customer preference or default to external).
2. Power-On Self-Test
   • Install the module in a WDPF test rack with a known-good power supply and processor.
   • Apply rack power—watch the “OK” LED.
   • Connect to the engineering workstation, verify the module is recognized.
3. Input Accuracy Test
   • Connect a precision current source (Fluke 753) to each channel.
   • Inject 4.00, 12.00, and 20.00 mA.
   • Read the value from the processor.
   • Must be within ±0.05 mA at each point.
   • Test all 8 channels simultaneously—no crosstalk.
4. Loop Power Test
   • For channels configured with loop power, measure the voltage at the terminals (no load).
   • Should be 24V ±1V.
   • Connect a 250Ω load—current should be limited to appropriate value.
5. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
6. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all inputs at 12 mA.
   • Monitor readings for drift—must stay within spec.
7. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—channel calibration results, loop power verification.

Field Replacement Pitfalls

I’ve swapped these in power plants, refineries, and chemical plants. Here’s where people go wrong.

❗Loop Power Selection
The module can provide 24V loop power, but it’s selectable per channel via jumpers. If you have a 2-wire transmitter and forget to set the jumper, the transmitter won’t power up. If you have a 4-wire transmitter and set the jumper, you’ll have 24V on the terminals—not a problem, but unnecessary. Check the jumpers.

Input Polarity
The inputs are polarity-sensitive. If you reverse the wires, you’ll get a negative reading (or zero). Most transmitters are polarity-sensitive too. Check the wiring diagram.

250Ω Burden
The input impedance is 250Ω. That means at 20 mA, there’s 5V across the input. If your transmitter can’t drive that much voltage (unlikely), you’ll have problems. Most 2-wire transmitters are designed for 24V loops and can handle 5V drop easily.

Grounding
The inputs are isolated, but the shields should be grounded at one end only—usually at the module. Grounding both ends creates ground loops.

Channel Configuration
Some versions of this module require configuration for each channel (e.g., loop power on/off). If you replace a module without setting the jumpers the same way, your channels may not work. Document the old module’s jumper settings before removal.

Nail these five, and your 1C31132 will measure accurately for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by Emerson (Westinghouse), packed in its original box, and never installed. The analog components have zero hours, the jumpers are as shipped, and the terminal block has never been wired.

Refurbished risk in plain terms
A refurbished WDPF analog module often comes from a decommissioned plant. The analog components may have drifted, the loop power supply may be weak, and the terminal block may have corrosion. A refurbisher tests it at a few points and calls it good. In the field, at different temperatures, it may be inaccurate.

Real cost of a refurbished failure
If a pressure reading is off by 2%, it might not trip anything—but it could cause the process to run inefficiently. Over a year, that inefficiency can cost tens of thousands. If it causes a trip, the cost is even higher.

What we provide as proof

• Emerson/Westinghouse box (or photos).
• Serial number recorded.
• Channel calibration results.
• Loop power verification.
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” WDPF modules and 25% below the original list price. That pays for the full calibration, the thermal test, and the warranty.

Performance Benchmarks & Test Results

Test conditions: WDPF test rack, Fluke 753 source, ambient 24 °C.

We keep the full calibration data—ask, and we’ll email the PDF.
