EMERSON 1C31129G03

Description

Product Overview and Description

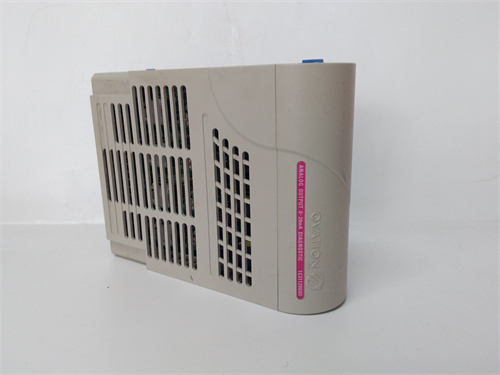

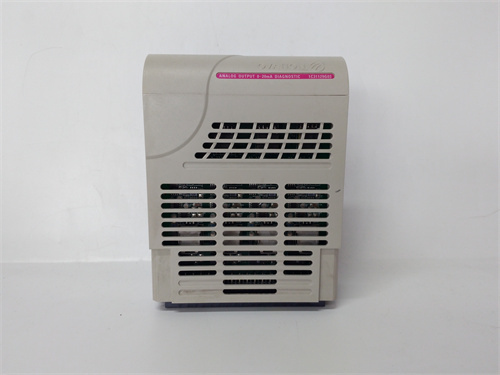

The EMERSON 1C31129G03 is a high-performance analog output module manufactured by Emerson Process Management for their Ovation distributed control system (DCS). This module is part of Emerson’s extensive line of reliable I/O hardware, designed to provide precise command signals to final control elements in demanding process environments. The primary function of the EMERSON 1C31129G03 is to convert digital control signals from the Ovation controller into highly accurate analog current outputs, typically the industry-standard 4-20mA signal, used to drive field devices such as control valve positioners, variable frequency drives (VFDs), and other proportional actuators.  Integrating this module into an Ovation I/O shelf is a standard procedure for building robust control loops. The accuracy and reliability of the EMERSON 1C31129G03 are critical for ensuring that process variables like flow, pressure, and level are maintained at their precise setpoints.

Detailed Product Parameters

• Function: Analog Output Module for the Emerson Ovation DCS.
• System Compatibility: Designed for installation in an Ovation I/O shelf or module base unit, connecting directly to the Ovation controller network via a high-speed backplane.
• Output Channels: Typically provides multiple isolated 4-20mA DC output channels (e.g., 4, 8, or 16 channels per module, depending on the specific variant indicated by the G03 suffix).
• Output Resolution: High resolution (e.g., 16-bit) ensuring smooth and precise control signal generation.
• Accuracy: High accuracy specification (e.g., ±0.1% of full scale) critical for fine process control.
• Isolation: Provides channel-to-channel and channel-to-system isolation to prevent ground loops, noise interference, and to limit fault propagation.
• Load Compliance: Capable of driving a specified maximum load resistance (e.g., 750 ohms) on each output loop, ensuring it can operate standard field devices over long cable runs.
• Diagnostics: Includes onboard diagnostics for fault detection (open circuit, short circuit, module health) which are reported back to the Ovation controller for alarm generation.
• Connections: Interfaces to field wiring via a removable terminal block or connector on the front of the module.

Key Advantages and Features

1. High Precision and Stability: The EMERSON 1C31129G03 is engineered for exceptional output accuracy and long-term drift stability, which is fundamental for maintaining tight control over continuous processes and ensuring product quality and efficiency.
2. Advanced Diagnostic Capabilities: Comprehensive fault detection for each channel allows for rapid troubleshooting and predictive maintenance. The system can alert operators to a failing valve positioner or wiring issue before it causes a process deviation.
3. Robust Isolation: The electrical isolation built into each channel protects the sensitive DCS electronics from disturbances in the field wiring and allows for flexible grounding schemes in the plant, enhancing overall system noise immunity and safety.
4. Seamless Ovation Integration: As a native Ovation component, the module is automatically recognized by the system software. Configuration of scaling, alarm limits, and diagnostics is handled within the unified Ovation Developer Studio environment, streamlining engineering.
5. High Density and Modularity: By providing multiple output channels in a single module slot, the EMERSON 1C31129G03 helps maximize I/O density within a control cabinet, saving space and reducing hardware costs for large systems.

Primary Application Fields and Use Cases

This module is a core component in process industries utilizing the Emerson Ovation DCS for supervisory and regulatory control.

• Power Generation (Thermal & Renewable): Controlling feedwater valves, turbine inlet valves, damper actuators, and sootblower sequences in fossil fuel plants, as well as pitch control in wind turbines.
• Oil & Gas Refining: Manipulating flow control valves on distillation columns, reactor feed lines, and product blending systems.
• Chemical & Pharmaceutical Manufacturing: Precisely dosing reagents via control valves, regulating reactor temperature through coolant valves, and controlling pressure in batch processes.
• Use Case Example: In a coal-fired power plant’s boiler control system, multiple EMERSON 1C31129G03 modules are used. One module might be dedicated to controlling the forced draft (FD) and induced draft (ID) fan inlet vanes to maintain furnace pressure. The Ovation controller calculates the required vane position, and the module outputs the corresponding 4-20mA signal to the actuator. The module’s high accuracy ensures efficient combustion and safe pressure levels, while its diagnostics can warn of a stuck vane or actuator failure.

Comparison with Competing Products

• vs. Standard PLC Analog Output Cards: Cards for PLCs like Siemens S7-1200/1500 or Allen-Bradley Compact/ControlLogix offer similar functionality but are designed for a different architecture and software ecosystem. The EMERSON 1C31129G03 is optimized for the high availability, networking, and integrated diagnostics of the Ovation DCS platform.
• vs. Generic Analog Output Signal Conditioners: Standalone isolators and transducers can perform signal conversion but create a more complex, decentralized system with additional wiring, power supplies, and points of failure. The Ovation module is a centralized, software-configured solution.
• vs. Other DCS Vendor I/O (e.g., Honeywell, Yokogawa): Each major DCS provider has its own proprietary I/O module design. The EMERSON 1C31129G03 is only compatible with the Emerson Ovation system and is not physically or electrically interchangeable with modules from other DCS platforms.

Selection Suggestions and Important Precautions

• Selection Advice: The EMERSON 1C31129G03 is selected based on the Ovation system design, specifically the need for analog current outputs. The exact channel count and revision (G03) must match the project’s I/O list and spare parts strategy. Verify compatibility with the specific Ovation I/O base unit or shelf.
• Precaution – Field Wiring Practices: Adhere to Emerson’s guidelines for analog output wiring, including the use of twisted-pair shielded cables, proper shield grounding at the DCS cabinet only, and separation from AC power and high-voltage circuits.
• Precaution – Load Verification: Before commissioning, verify that the total loop resistance (wire resistance + field device impedance) for each channel does not exceed the module’s specified load compliance limit to ensure proper signal level.
• Precaution – Hot Swapping: While Ovation systems often support module hot-swap, this procedure must be followed precisely as per the manual. Incorrect removal/insertion can cause communication faults or damage.
