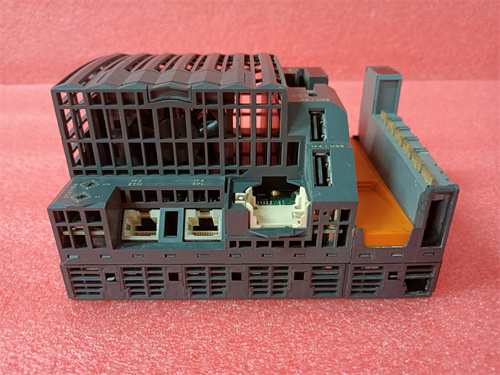

B&R X20CP1486

Description

Product Description

The B&R X20CP1486 is a high-performance central processing unit (CPU) module from B&R Industrial Automation’s flagship X20 system. This powerful controller is engineered for demanding automation tasks that require substantial computational power, deterministic response, and advanced connectivity. As the core of an X20 control system, the X20CP1486 executes user programs, manages real-time data exchange with distributed I/O modules, and orchestrates complex motion control and machine logic. Its design integrates a powerful processor with ample memory and integrated interfaces, making it suitable for sophisticated applications in packaging, plastic injection molding, and advanced machine building. Deploying the B&R X20CP1486 CPU provides a scalable and future-proof platform, capable of handling everything from simple logic to integrated CNC and robotics within a unified, seamlessly integrated Automation Studio software environment.

Technical Parameters and Features

• Device Type: Central Processing Unit (CPU) for the B&R X20 System.
• Processor & Performance: Features a high-performance multi-core processor capable of handling complex PLC, motion, and HMI tasks. Offers deterministic, real-time cycle times suitable for high-speed automation.
• Memory: Equipped with significant work memory and non-volatile memory for storing user programs, data, and system firmware.
• Integrated Interfaces:
  • Ethernet: Multiple integrated Ethernet ports (typically 2x or more) supporting POWERLINK (for deterministic I/O and motion networking) and standard TCP/IP (for SCADA and IT communication).
  • USB: At least one USB port for programming, maintenance, and connecting peripherals.
• Real-Time Capabilities: Native support for B&R’s real-time Ethernet POWERLINK, enabling precise synchronization of I/O and drives with nanosecond accuracy.
• Expansion Capability: Connects to local and remote X20 I/O stations via built-in interfaces or optional fieldbus couplers, allowing for highly distributed system architectures.
• Programming Environment: Programmed and configured exclusively with B&R’s integrated Automation Studio development suite, which supports all IEC 61131-3 languages, C/C++, and structured text.

Advantages and Key Features

• Integrated Automation Platform: The B&R X20CP1486 is the heart of a unified system where PLC, motion control, safety, and HMI are programmed in a single software project, eliminating integration headaches between disparate subsystems.
• High-Performance and Determinism: With its powerful processor and native POWERLINK integration, this CPU delivers the speed and precise timing required for the most challenging high-speed and synchronized multi-axis applications.
• Scalable and Modular Architecture: The X20 system built around the X20CP1486 allows for easy system expansion by simply adding I/O, drive, or communication modules to the bus, adapting to growing machine requirements.
• Powerful Connectivity: Its multiple, high-speed Ethernet interfaces simplify network architecture by separating real-time machine network traffic from plant-level data exchange on a single physical medium.
• Robust Industrial Design: Built to withstand industrial environments with a wide operating temperature range, high immunity to vibration and electrical noise, ensuring reliable operation.

Application Case Studies in Various Fields

• Packaging Machinery: Serves as the main controller for high-speed form-fill-seal machines, synchronizing servos for film feed, filling, and cutting with millisecond precision, managed entirely from the X20CP1486.
• Plastics Processing: Controls complex injection molding machines, handling sequence logic, closed-loop hydraulic control, temperature regulation, and integrated robotic part removal within one CPU.
• Printing and Converting: Manages web tension control, registration, and synchronized printing stations in rotary printing presses, where the deterministic network of the B&R X20CP1486 is critical.
• Automated Test Stands: Coordinates multiple actuators, data acquisition modules, and safety interlocks for endurance and performance testing in automotive or aerospace component validation.

Comparison with Competing Products

Compared to traditional PLCs from Siemens (S7-1500) or Rockwell (ControlLogix), the B&R X20CP1486 distinguishes itself through its deeply integrated architecture:

1. Software and Hardware Unity: Unlike competitors where motion control often requires a separate module/card and software (e.g., Siemens T-CPU, Rockwell Kinetix), the B&R X20CP1486 natively handles complex motion tasks within the same CPU and engineering tool.
2. Network Philosophy: Its reliance on open-standard, deterministic POWERLINK for I/O and drives offers a different approach than proprietary backplanes or fieldbus systems, often providing higher synchronization performance and flexibility.
3. Development Environment: Automation Studio provides a single, deeply integrated environment for all automation tasks, which contrasts with the multiple, loosely coupled software packages typically required to achieve similar functionality with other brands.

Selection Advice and Important Notes

• Assess Performance Needs: Evaluate the complexity of your application, including the number of I/O points, motion axes, and communication tasks to ensure the X20CP1486‘s performance metrics (cycle time, memory) are sufficient.
• Plan the Network Architecture: Design your POWERLINK network topology carefully, considering cycle time requirements and cable lengths. The CPU’s integrated master capability simplifies this but requires planning.
• Invest in Training: The powerful and unified Automation Studio platform has a learning curve. Effective use of the B&R X20CP1486 requires training or experience with B&R’s methodology.
• Verify Module Compatibility: Ensure all planned X20 I/O, safety, and communication modules are compatible with the CPU and the chosen system firmware version.
• Consider Safety Integration: For machines requiring functional safety, plan for integrated SafeLOGIC or X20 safe I/O modules, which can be programmed within the same Automation Studio project as the standard X20CP1486 logic.
