BENTLY 76449-02U | 3500/42M Proximitor/Seismic Monitor

Description

Product Introduction

The compressor trips on high vibration. The display shows 4.5 mils. The field meter shows 2.8. You pull the 3500/42M and swap it. The numbers line up.

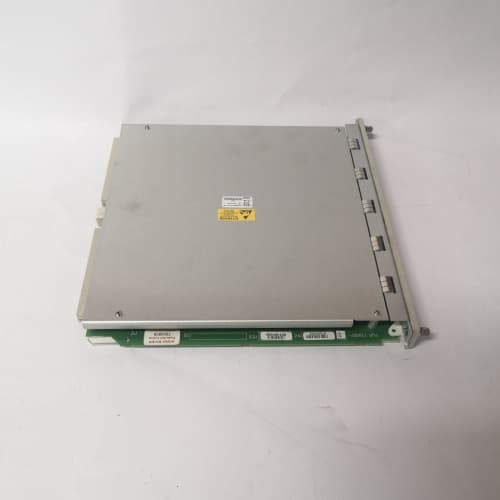

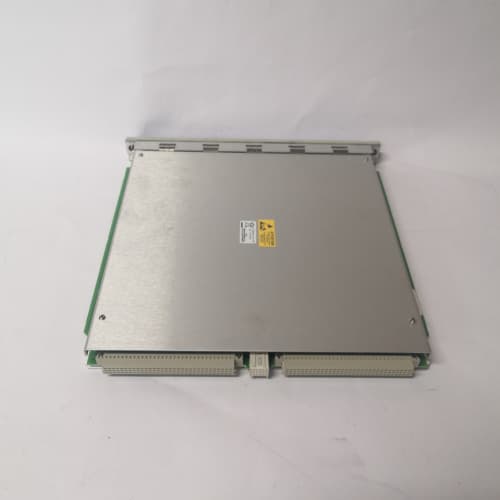

That’s the BENTLY 76449-02U—the 3500/42M Proximitor/Seismic Monitor. Four channels. It takes signals from proximity probes (for shaft position) and accelerometers (for case vibration) and turns them into readings the 3500 rack uses for protection. When a channel drifts, the machine trips for no reason. When it fails, the machine keeps running until something breaks.

I’ve swapped these in gas turbines, compressors, and steam turbine generators. The module is accurate when it’s new. The drift is minimal. The failure mode is usually input channel drift—one channel starts reading 10% high, the alarm trips early, and the unit shuts down. The fix is swapping the module. The rack stays. Ten minutes, if the spare is on the shelf.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Vibration modules are critical. If they drift, turbines trip.

1. Incoming Verification
   This batch came from a Bently authorized distributor’s final 3500 stock. Sealed boxes. Serial numbers traceable to 2016–2019 production.
2. Visual Inspection
   First: the edge connector. Gold fingers should be bright, no scoring. Next: the front panel—no scratches, no missing screws. Also check the labeling for wear. If it’s been used before, the rack slots will show it.
3. Live Functional Test
   We test the 76449-02U in a 3500 test rack with a precision signal generator and calibrated shaker table. Procedure:
   • Power‑up: verify all channel LEDs cycle, module OK
   • Proximity test: inject 50 mV/mil signal (simulated), verify reading matches
   • Proximity sweep: 0–200 mils in 20 mil steps, verify linearity
   • Seismic test: inject 1 in/s sine wave at 60 Hz, verify reading matches
   • Seismic sweep: 0.1–5 in/s, verify linearity
   • Filter test: verify programmable filters roll off at set frequencies
   • All four channels: run simultaneously, verify no cross‑talk
   • Soak test: run all channels at 50% range for 1 hour, monitor for drift
4. Alarm Test
   Set alert at 2 mils, danger at 4 mils. Sweep input from 1 to 5 mils, verify alarms trigger at correct thresholds.
5. Final QC & Packaging
   Passed modules go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, linearity results, and alarm verification.

Field Replacement Pitfalls

Vibration modules are sensitive. Here’s where field techs get burned.

1. Input type mismatch.
   The 3500/42M can be configured for proximity probes or seismic sensors. The configuration is in software, not jumpers. If you plug in a module set for proximity and feed it accelerometer signals, the readings will be wrong. I’ve seen a plant with vibration readings that were 50% low because the module was configured wrong. Check the config before you install.
2. ❌ Probe gap.
   Proximity probes need a specific gap. If the gap is off, the signal amplitude is wrong. The module will read high or low. I’ve seen a turbine trip on high vibration because a probe gap drifted and the module read 50% high. The module was fine. The probe was the problem.
3. Shield grounding.
   Proximity probe signals are low‑voltage. If the cable shield is grounded at both ends, you get ground loops. The module will see noise. The reading will be jumpy. I’ve seen a plant with erratic vibration readings that traced back to a shield grounded at both ends. Ground at one end only.
4. Filter settings.
   The module has programmable filters. If the filters are set wrong, the module will read the wrong frequencies. I’ve seen a plant chasing a 1× vibration alarm that turned out to be a 2× signal—the filter was set too wide. The module was fine. The configuration was wrong.
5. Firmware mismatch.
   The 3500/42M has internal firmware. Different revisions have different signal processing characteristics. If you swap in a module with older firmware, it may work—or it may not. I’ve seen a module that passed all tests but failed the alarm test because the firmware didn’t support the faster response time needed for the machine. Match the firmware revision.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this BENTLY 76449-02U was built by Bently, never installed, and never repaired. The input circuits are fresh. The internal oscillator hasn’t drifted. The edge connector has never been mated.

Refurbished 3500/42M modules are risky. The input conditioning circuits are sensitive. A refurb module might have been in a plant where it got hit by lightning—it still works, but the linearity is off. I’ve seen a refurb module that passed a 2 mil test but failed at 10 mils. The machine tripped for no reason twice before they found the module.

What we provide:

• Traceable serial number (matches Bently production records)
• 4‑channel proximity test (0–200 mils, 10% increments)
• 4‑channel seismic test (0–5 in/s, 10% increments)
• Filter verification
• Alarm threshold test
• 1‑hour soak test at 50% range
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new module would cost if Bently still made them. You’re paying for the test, the warranty, and the certainty that the vibration reading isn’t going to drift.

Performance Benchmarks & Test Results

All tests performed on 3500 test rack, 25 °C ambient.

Thermal performance note:
At 55 °C ambient, the proximity reading drifts about 0.5 mil at 10 mils. Still within spec. The seismic reading drifts about 0.1 in/s at 2 in/s. If your machine has tight vibration limits, let the module warm up for an hour before you trust the readings.

One more thing from the field:
The 76449-02U has a small test point on the front edge—TP1. It’s the internal reference. If you’re seeing drift across all channels, probe TP1. Should be 5.000 V ±5 mV. If it’s off, the whole module is drifting. Swap it. I’ve seen a plant chase a vibration issue for weeks before someone checked the reference. The module was soft. The machine was fine.
