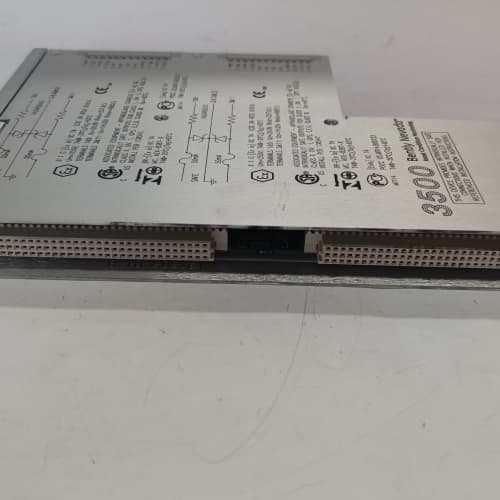

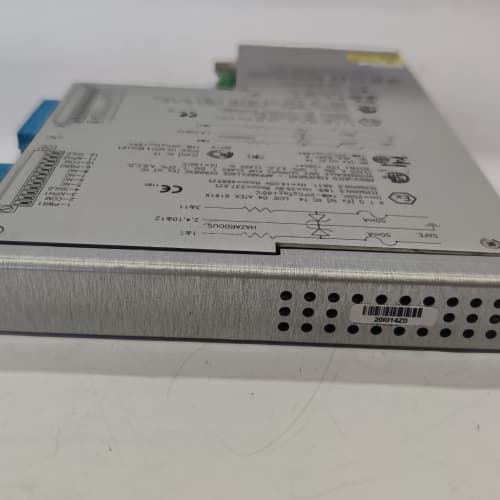

BENTLY 3500/94 145988

Description

Product Description

The BENTLY 3500/94 145988 is a critical Power Distribution Module for the Bently Nevada 3500 machinery condition monitoring and protection system. This module, often referred to as a Termination/Transducer Power Supply Panel, is not a monitoring module but a vital infrastructure component. Its primary function is to provide clean, regulated, and isolated power to all the proximity probes (typically eddy current transducers) connected to the 3500 rack. The module also serves as the centralized termination point for the coaxial cables from these probes, organizing the field wiring before it connects to the individual monitor modules (like the 3500/42M). By centralizing power distribution and signal termination, the BENTLY 3500/94 simplifies cabinet wiring, improves signal integrity, and enhances system reliability. The proper operation of the 145988 module is fundamental to ensuring that all vibration and position probes receive consistent and reliable excitation power, which is essential for accurate machinery protection.

Product Parameters

• Module Type: Termination Panel / Transducer Power Distribution Module
• Compatible System: Bently Nevada 3500 Rack System
• Primary Function:
  1. Distributes -24V DC (or other rated) power to multiple proximity probes.
  2. Provides a centralized termination point for transducer coaxial cables.
• Number of Channels: Typically supports a specific number of probe connections (e.g., 16 channels).
• Input Power: Accepts a primary power input (e.g., 24V DC or 125V DC) from the system power supply.
• Output Power: Provides isolated, regulated -24V DC output to each connected probe.
• Termination: Includes high-quality coaxial connectors (e.g., BNC, TNC) or terminal blocks for each channel.
• Fusing: Each output channel is individually fused to protect the module and the connected monitor from field wiring faults.
• Status Indicators: May include LEDs for overall power status.
• Mounting: Installs in a dedicated slot or space within the 3500 rack enclosure.

Advantages and Features

• Simplified and Organized Wiring: The BENTLY 3500/94 145988 dramatically cleans up cabinet wiring by providing a single, organized termination point for all probe cables, reducing clutter and potential for wiring errors.
• Consistent and Reliable Probe Power: It ensures that every connected proximity probe receives stable and identical excitation voltage, which is critical for obtaining consistent, calibrated measurements across all vibration and position channels.
• Individual Channel Protection: The per-channel fusing protects the sensitive (and expensive) monitor modules downstream from damage caused by short circuits or faults in the field wiring or the probe itself.
• Enhanced System Maintainability: By centralizing connections, troubleshooting and replacing probes or cables becomes much easier and faster, minimizing machine downtime.
• Improved Signal Integrity: Proper termination and high-quality connectors help maintain signal quality from the probe to the monitor, reducing noise and ensuring accurate data.

Application Cases in Various Fields

• Gas Turbine Protection: A 3500/94 module in a turbine monitoring rack powers and terminates all the X and Y proximity probes for radial vibration, thrust position probes, and Keyphasor probes on a turbine-generator shaft line.
• Compressor Stations: Used in monitoring systems for large centrifugal or axial compressors in oil & gas pipelines, providing power to probes measuring rotor dynamics and casing vibration.
• Hydroelectric Turbines: Organizes and powers the numerous proximity probes used to monitor guide bearing wear and shaft runout on large vertical turbines.
• Critical Pump Trains: In refinery or chemical plant critical pump trains, it manages the power and connections for vibration probes on the pump and motor bearings.

Comparisons with Competing Products

1. Vs. Discrete Wiring to Each Monitor Module: Without a 3500/94, each probe cable would need to be routed and connected directly to its monitor module. This is messy, prone to errors, and makes tracing wires difficult. The termination panel provides a standardized, engineered solution.
2. Vs. Generic Terminal Blocks and Power Supplies: Using generic DIN-rail terminal blocks and separate power supplies could achieve similar electrical connections but would lack the optimized integration, specific coaxial connectors, individual channel fusing, and form factor designed for the 3500 system. It would also not be a recognized part of the certified protection system.
3. Vs. Other OEM’s Termination Solutions (e.g., Emerson CSI): Competing machinery monitoring systems have their own termination assemblies. The BENTLY 3500/94 145988 is the purpose-built, recommended component for the Bently Nevada 3500 system, ensuring compatibility and performance as specified in API 670.
4. Key Differentiator: It is an integrated wiring and power distribution hub specifically designed to support the dense I/O requirements of high-channel-count machinery protection systems, improving both reliability and serviceability.

Selection Suggestions and Precautions

1. Verify Channel Count and Connector Type: Select the 3500/94 module based on the number of probes you need to connect. Also, confirm the connector type (BNC or TNC) matches the probes and monitor module connectors in your system.
2. Match Power Supply Requirements: Ensure the input voltage rating of the termination panel matches the available power supply in your 3500 rack (e.g., 24V DC from a 125800-01 power supply).
3. Correct Fuse Rating: Use only the fuse size and type specified by Bently Nevada for each channel. An incorrect fuse can fail to protect the system or cause nuisance blown fuses.
4. Proper Cable Routing and Strain Relief: When connecting field cables, provide proper strain relief and avoid sharp bends in the coaxial cables. Route power and signal cables separately to minimize noise coupling.
5. Grounding: Follow Bently Nevada’s instructions for grounding the shield of the coaxial cables and the panel itself. Proper grounding is essential for noise immunity.
6. Documentation: Clearly label each channel on the BENTLY 3500/94 panel corresponding to the machine point (e.g., “Turbine DE X Probe”). This is invaluable for future troubleshooting and maintenance.
7. Spare Fuses: Keep a set of spare fuses for the 145988 module readily available. A blown fuse on a critical channel will disable that measurement point.
