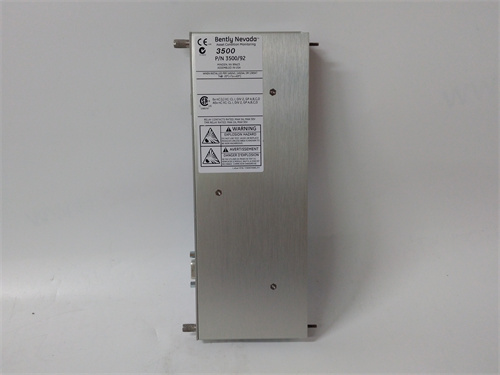

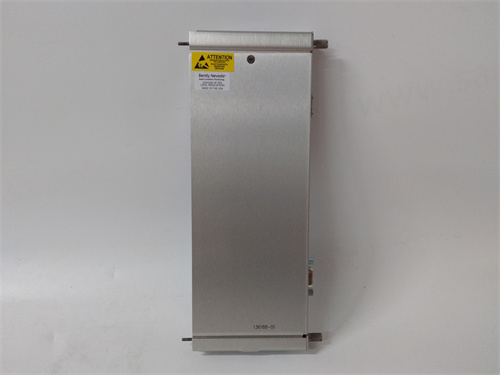

BENTLY 3500/92 136188-01

Description

Product Description
The BENTLY 3500/92 136188-01 is a critical system component within the Bently Nevada 3500 Series Machinery Protection System. This module is specifically the Communications Gateway for the 3500 rack system, serving as the vital interface between the monitoring system and external plant networks. The BENTLY 3500/92 is the functional model, while 136188-01 is the precise factory order code for the specific hardware revision. The primary role of this module is to act as a data concentrator and protocol translator. It collects real-time vibration, position, speed, and process data from all other modules in the 3500 rack (such as vibration monitors and relay modules) and makes this information available to plant Distributed Control Systems (DCS), PLCs, and asset management software via industrial protocols like Modbus RTU, Modbus TCP/IP, or Ethernet Global Data (EGD). For reliability engineers and system integrators, the 3500/92 136188-01 is the essential bridge that transforms raw machinery protection data into actionable intelligence for the wider plant control and information systems. The functionality and reliability of this communications gateway are paramount for integrated plant operations and condition-based maintenance strategies.

Product Parameters

• Module Type: Communications Gateway / Interface Module.
• Product Family: Bently Nevada 3500 Series.
• Functional Model: 3500/92.
• Order Code: 136188-01 (specific hardware revision).
• Mounting: Occupies a single slot in a Bently Nevada 3500 series rack (e.g., 3500/15, 3500/25).
• Data Source: Connects to the rack’s internal high-speed bus to gather data from all monitoring modules in the same frame.
• Communication Ports: Typically includes:
  • One or two RS-232/485 serial ports for Modbus RTU or other serial protocols.
  • One or two Ethernet ports (10/100Base-T) for Modbus TCP/IP, EGD, or OPC communication.
• Supported Protocols: Modbus RTU (Master/Slave), Modbus TCP/IP Server, Ethernet Global Data (EGD) for GE PLCs, and often proprietary protocols for direct historian connectivity.
• Configuration: Configured using Bently Nevada’s dedicated 3500 Rack Configuration Software.

Advantages and Features

• Unified Data Gateway: Provides a single, reliable point of access for all machinery health data from a 3500 rack, simplifying integration with plant DCS/SCADA and CMMS systems.
• Protocol Flexibility: Supports the most common industrial protocols, allowing seamless connectivity to control systems from major vendors like Emerson, Siemens, Rockwell, and GE.
• High Data Integrity: Ensures deterministic and reliable data transmission from the protection system to the plant network, which is critical for accurate monitoring and logging.
• Enhanced Diagnostic Visibility: Enables the remote viewing of detailed channel-level data, alerts, and module status from the control room, far beyond simple alarm contacts.
• System Scalability: A single 3500/92 gateway can handle the data from a fully populated rack, supporting comprehensive monitoring of a critical machine train.

Application Cases in Application Fields

• Power Generation (Gas/Steam Turbine Monitoring): The 3500/92 136188-01 module transmits vibration, speed, and temperature data from the turbine protection system to the plant DCS for operator display and to a historian for long-term trend analysis and performance calculation.
• Oil & Gas (Centrifugal Compressor Trains): Integrates the machinery protection system for a critical synthesis gas or pipeline compressor into the main plant control system, allowing operators to see real-time vibration levels alongside process parameters.
• Petrochemical (Large Pump & Fan Monitoring): Provides the data link for a network of 3500 racks monitoring large, critical pumps and fans, feeding data into a centralized plant asset management (PAM) system for predictive maintenance.
• Pulp & Paper (Turbine & Gearbox Monitoring): Connects the protection system for a large turbine-driven generator or a critical gearbox to the mill-wide control system for integrated supervisory control and data acquisition.

Comparisons with Competing Products
The BENTLY 3500/92 136188-01 competes with communication interfaces from other machinery monitoring vendors, such as the Emerson (CSI) Asset Management Interface (AMI), or generic protocol converters. Its primary advantage is its native, high-fidelity integration within the 3500 ecosystem. Unlike a generic Modbus gateway, the 3500/92 is designed specifically to understand the 3500 data structure, providing access to comprehensive point lists, status information, and diagnostic data with minimal configuration effort. Competing solutions may require significant custom mapping and may not support all data types or protocols as seamlessly. It is the recommended and supported path for 3500 system integration.

Selection Suggestions and Precautions

1. Protocol Requirements: Clearly define the required protocol (Modbus TCP/IP, Modbus RTU, EGD) and the role (Master/Slave, Server/Client) needed by your plant’s host system before specifying the module.
2. Software and Configuration: Configuration of the 3500/92 136188-01 is not trivial and requires Bently Nevada’s 3500 Configuration Software and specific expertise. Plan for this in project engineering resources.
3. Network Planning: For Ethernet connections, coordinate IP address assignment, subnet, and network security (firewall rules) with the plant IT/OT network team in advance.
4. Rack Compatibility and Slot: Ensure there is an available slot in the 3500 rack for the gateway module. It does not replace I/O or relay modules.
5. Firmware and Revision Compatibility: The 136188-01 revision must be compatible with the firmware of other modules in the rack and the configuration software version. Always check the compatibility matrix provided by Bently Nevada.
