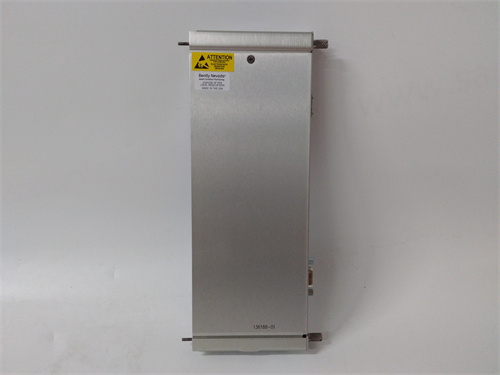

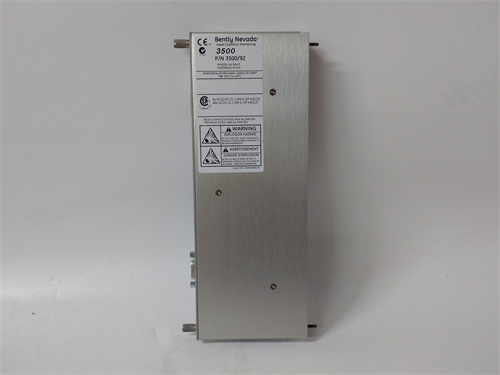

BENTLY 3500/92 136188-01

Description

Product Description

The BENTLY 3500/92 136188-01 is a critical communication interface module within the renowned Bently Nevada 3500 Machinery Protection System. This gateway acts as the essential data bridge, connecting the rack-based monitoring and protection system to external plant networks and control systems. The primary function of the 3500/92 module is to collect real-time data—including channel status, alert values, and dynamic waveform data—from all other modules in the 3500 rack and transmit it via a high-speed Ethernet connection using standardized protocols. Implementing the BENTLY 136188-01 gateway transforms the 3500 system from an isolated protector into an integrated source of valuable machinery health information for operators and asset management software.

Product Parameters

• Part Number: 136188-01 (Specific revision/model of the 3500/92 gateway).
• System Compatibility: Designed exclusively for the Bently Nevada 3500 rack.
• Communication Protocol: Utilizes Modbus TCP/IP over a 10/100 Mbps Ethernet interface for seamless integration with Distributed Control Systems (DCS), PLCs, and monitoring software.
• Data Access: Provides read/write access to configured channel values, status information, and trip logic.
• Configuration: Configured using the dedicated 3500 Configuration Software, with settings stored in the rack’s main processor module.

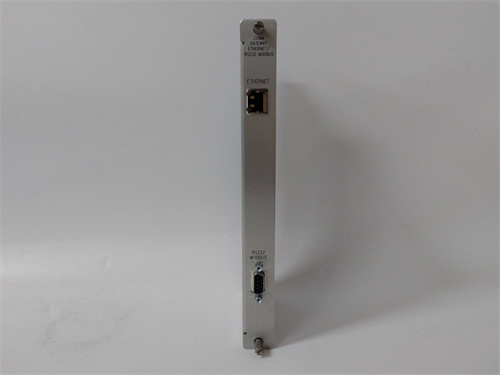

• Physical Interface: Standard RJ-45 Ethernet port located on the module’s faceplate.
• Redundancy: Supports network redundancy when used in conjunction with a redundant pair of modules and appropriately configured network switches.

Advantages and Features

• Seamless System Integration: The BENTLY 3500/92 gateway enables effortless integration of vibration, position, and process data into modern plant control networks, eliminating the need for costly and complex hardwiring of individual signals.
• Improved Diagnostic Capability: By providing access to detailed dynamic data, it allows for advanced diagnostic analysis and predictive maintenance strategies, moving beyond simple alarm-based monitoring.
• High Reliability: As part of the rugged and safety-certified 3500 system, the 136188-01 module is built for continuous operation in critical industrial environments.
• Standardized Protocol: The use of Modbus TCP/IP ensures compatibility with virtually all major control system manufacturers (e.g., ABB, Siemens, Emerson, Rockwell).
• Simplified Wiring: Dramatically reduces cabinet wiring by replacing hundreds of analog and discrete signal wires with a single Ethernet cable.

Application Cases in Application Fields

• Power Generation (Gas & Steam Turbines): Integrates critical speed, vibration, and differential expansion data from turbine-generator sets into the plant DCS for operator surveillance and historical trending.
• Oil & Gas (Centrifugal Compressors): Transits axial displacement and radial vibration data from pipeline or refinery compressors to the safety system and asset management platform to prevent catastrophic failures.
• Petrochemical and Chemical Plants: Connects monitoring data for large pumps, fans, and motors to the central control room, enabling condition-based maintenance and reducing unplanned downtime.
• Water & Wastewater: Integrates pump vibration monitoring into the SCADA system for performance assessment and early failure detection.

Comparisons with Competing Products

Compared to communication options from other machinery protection system vendors (e.g., Emerson’s CSI 6500 or SKF’s System 1 interfaces):

• Native Integration: The BENTLY 3500/92 136188-01 offers unparalleled, native integration within the 3500 ecosystem, with guaranteed performance and data consistency. Competing gateways for other systems may be third-party solutions.
• Protocol Focus: While many competitors also offer Modbus TCP/IP, the 3500/92 is specifically optimized for the high-data-throughput requirements of machinery monitoring, including waveform and spectrum streaming.
• System Legacy: The Bently Nevada 3500 platform is an industry standard with a decades-long legacy. Choosing the 3500/92 gateway ensures support and compatibility within this vast installed base, which is a significant factor for plant upgrades and expansions.

Selection Suggestions and Precautions

• Selection Advice: The BENTLY 3500/92 is the default and necessary choice for adding network connectivity to any Bently Nevada 3500 rack. Select the 136188-01 specifically based on your plant’s required firmware revision or spare part strategy. Determine if a single or redundant gateway setup is required based on criticality.
• Precautions:
  1. Ensure a compatible slot is available in the 3500 rack (it occupies one slot and does not monitor machinery itself).
  2. Proper configuration of IP addresses, subnet masks, and Modbus register mapping in the 3500 software is crucial for successful communication.
  3. Network security is paramount. The gateway should be connected to a controlled and segregated plant network, not directly to the enterprise IT network, to mitigate cybersecurity risks.
  4. Always verify the firmware revision of the BENTLY 136188-01 module for compatibility with your existing 3500 rack firmware and configuration software version.
  5. Source from authorized channels to avoid counterfeit modules that could compromise the integrity of the entire machinery protection system.
