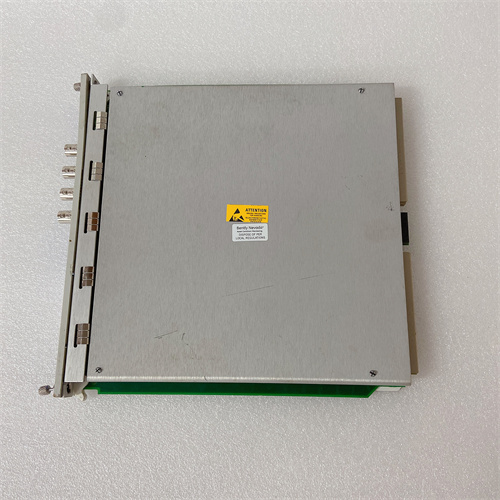

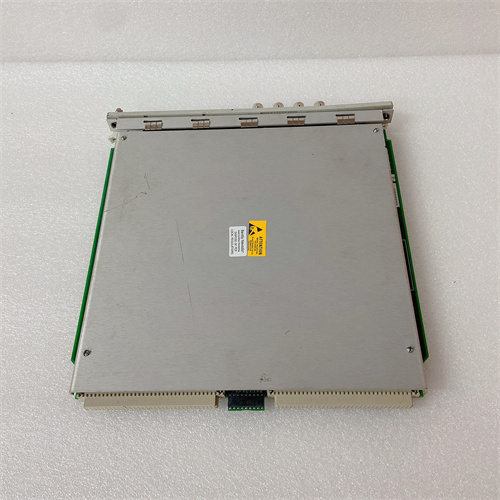

BENTLY 3500/44M

Description

Product Description

The BENTLY 3500/44M is a specialized air gap monitor module designed as a critical component for Bently Nevada’s 3500 Series machinery protection systems. The 3500 Series is the industry-leading platform for continuous monitoring and protection of critical rotating equipment including steam turbines, gas turbines, compressors, pumps, and generators. The “44M” designation specifically indicates an Air Gap Monitor, primarily used in hydroelectric applications to monitor the air gap between the rotor and stator in large hydroelectric generators. The core function of the BENTLY 3500/44M is to continuously monitor the air gap distance in hydroelectric generators, providing critical data to prevent rotor-stator contact which could cause catastrophic damage. It processes signals from specialized air gap sensors and provides both monitoring and protection functions, alarming when air gap deviations exceed safe limits. Engineered for the demanding environments of hydroelectric power plants, the BENTLY 3500/44M features robust construction, comprehensive diagnostic capabilities, and the reliability required for mission-critical machinery protection applications.

Product Parameters

• Model Number: BENTLY 3500/44M
• Type: Air Gap Monitor Module
• Series: Bently Nevada 3500 Series Machinery Protection System
• Function: Continuous monitoring of air gap in hydroelectric generators
• Compatibility: Works with Bently Nevada air gap sensors
• Monitoring Capability: Provides real-time air gap measurement
• Protection Functions: Alarm and trip based on air gap deviation
• Diagnostics: Comprehensive self-diagnostics with LED status indicators
• Mounting: Rack-mount in 3500 Series chassis
• Power Requirements: Powered through 3500 rack backplane
• Indicators: Front-panel LEDs for power, channel status, and alarm conditions
• Operating Temperature: 0°C to 65°C
• Certification: CE, UL, CSA, ATEX (when installed in appropriate enclosure)

Advantages and Features

The primary advantage of the BENTLY 3500/44M lies in its specialized design for hydroelectric generator air gap monitoring. Using the BENTLY 3500/44M, hydroelectric plant operators can continuously monitor the critical air gap between rotor and stator, receiving early warning of developing mechanical problems that could lead to catastrophic failure. The module provides both monitoring and protection functions, ensuring that dangerous air gap conditions trigger appropriate alarms and trips. Comprehensive diagnostic features continuously monitor the health of the BENTLY 3500/44M and its connected sensors, providing confidence in the protection system. The rugged construction ensures reliable operation in the demanding environment of hydroelectric power plants. As an original Bently Nevada component, the BENTLY 3500/44M guarantees proper compatibility with 3500 Series racks and other monitoring modules.

Application Cases in Application Fields

The BENTLY 3500/44M finds essential application in hydroelectric power plants worldwide.

• Hydroelectric Generators: In a large hydroelectric dam, the BENTLY 3500/44M monitors the air gap between rotor and stator in multiple generators, providing critical protection against rotor-stator contact that could cause millions in damage and extended outages.
• Pumped Storage Plants: In pumped storage hydro facilities, the BENTLY 3500/44M monitors air gap during both generation and pumping modes, where dynamic conditions can affect rotor position.
• Run-of-River Hydro: At smaller hydro facilities, the BENTLY 3500/44M provides essential protection for generators operating in variable flow conditions.
• Generator Refurbishment Projects: When upgrading older hydro generators, the BENTLY 3500/44M is often installed as part of modern protection systems.
• Condition Monitoring Programs: The BENTLY 3500/44M provides data for predictive maintenance programs, helping operators schedule maintenance based on actual generator condition.

Comparison with Competing Products

When compared to other air gap monitoring solutions, the BENTLY 3500/44M offers specific advantages for users invested in the Bently Nevada 3500 Series ecosystem. It integrates seamlessly with other 3500 Series modules, allowing all machinery protection data to be managed through a single platform. Bently Nevada’s extensive experience in hydroelectric monitoring ensures that the BENTLY 3500/44M incorporates specialized algorithms and features optimized for air gap measurement. For facilities already using 3500 Series systems for vibration monitoring, adding the BENTLY 3500/44M provides a unified protection solution.

Selection Suggestions and Precautions

When selecting the BENTLY 3500/44M for your application, first verify compatibility with your specific 3500 Series rack configuration and power supply. Ensure that the BENTLY 3500/44M is configured with the correct firmware for your specific air gap sensors and application requirements. When installing the module, follow Bently Nevada’s installation procedures precisely, ensuring proper seating in the chassis and secure retention. Pay careful attention to sensor wiring practices, using appropriate cable types and ensuring proper shielding and grounding for reliable signal transmission. Before commissioning, verify proper configuration and perform functional testing to confirm that the BENTLY 3500/44M correctly measures and reports air gap parameters. For critical applications, maintain a spare BENTLY 3500/44M module on hand to minimize downtime in case of failure. Finally, work with reputable suppliers who can provide genuine BENTLY 3500/44M modules with appropriate documentation and warranty support.
