BENTLY 3500/22M 146031-01

Description

Product Overview and Description

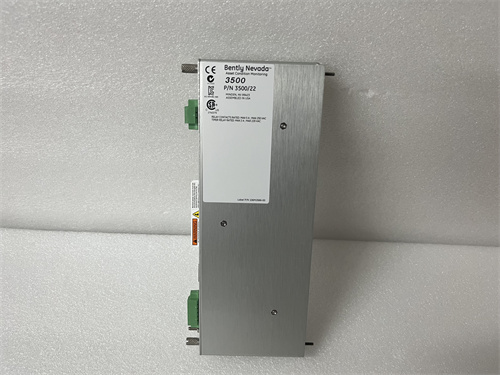

The BENTLY 3500/22M 146031-01 is a transient data interface (TDI) module, also known as the 3500/22M, which serves as the primary communication gateway for the Bently Nevada 3500 Series machinery protection system. This module is a critical component that interfaces the 3500 rack with external software and systems, such as System 1® condition monitoring software, Modbus host systems, and plant Distributed Control Systems (DCS). The BENTLY 3500/22M 146031-01 collects steady-state and transient dynamic data from all monitoring modules in the rack and makes this data available for analysis, diagnostics, and display.

The 3500/22M 146031-01 is engineered for continuous, reliable operation in harsh industrial environments like power plants, oil and gas facilities, and heavy industrial processing sites. It provides high-speed data acquisition capabilities, allowing users to capture and analyze machine transient events such as startups, coastdowns, and load changes. The use of the BENTLY 3500/22M 146031-01 enables comprehensive machinery protection and advanced diagnostics, helping to prevent catastrophic failures and optimize maintenance schedules.

Technical Parameters

Based on the analysis of Bently Nevada 3500 Series documentation, the BENTLY 3500/22M 146031-01 possesses the following key characteristics:

• Device Type: Transient Data Interface (TDI) Module for the 3500 Series rack.
• Part Number: BENTLY 3500/22M 146031-01 (M indicates a specific revision/configuration).
• Function: Collects and communicates steady-state and transient dynamic waveform data from all monitoring modules in the rack.
• Communication Ports:
  • Proprietary port for communication with Bently Nevada software (e.g., System 1).
  • Multiple serial ports (RS-232/RS-422) for Modbus RTU communication.
  • Ethernet port for Modbus TCP/IP communication.
• Data Acquisition: Capable of capturing high-resolution dynamic data (waveforms) during machine transients.
• Compatibility: Designed to work with all 3500 Series monitoring modules (e.g., 3500/40, 3500/42, 3500/60).
• Rack Configuration: Occupies one slot in the 3500 rack and is typically required for any external communication.
• Mounting: Installs into a standard 3500 Series rack (chassis).
• Diagnostics: Front-panel LED indicators for module status, communication activity, and fault indication.
• Power Supply: Powered by the 3500 rack’s backplane.

Advantages and Key Features

The BENTLY 3500/22M 146031-01 offers several critical advantages for machinery monitoring:

• Centralized Data Hub: The 3500/22M 146031-01 acts as the central nervous system for data leaving the 3500 rack. It consolidates data from all monitoring modules, providing a single point of access for external systems.
• Transient Data Capture: Its ability to capture high-resolution transient data is a key feature. During a machine startup or trip, the BENTLY 3500/22M 146031-01 records waveform data that is invaluable for post-event analysis and root cause determination.
• Multiple Protocol Support: With support for both Modbus RTU and Modbus TCP/IP, the 3500/22M 146031-01 can easily integrate with virtually any plant DCS, PLC, or SCADA system for seamless data sharing.
• High-Speed Communication: The module ensures fast and reliable data transfer to System 1 software, enabling real-time condition monitoring and diagnostics.
• System 1 Integration: The BENTLY 3500/22M 146031-01 is specifically designed to work with Bently Nevada’s System 1 platform, unlocking advanced analysis tools for machinery health assessment.

Application Cases in Key Industries

The BENTLY 3500/22M 146031-01 is essential in any industry where critical rotating machinery is monitored:

• Power Generation (Steam and Gas Turbines): The 3500/22M 146031-01 transmits vibration, position, and temperature data from turbine supervisory instrumentation to the plant DCS and to diagnostic software for health monitoring.
• Oil & Gas (Compressor Stations): On critical gas compressors, the BENTLY 3500/22M 146031-01 provides data to remote monitoring centers, allowing experts to analyze machine condition without being on-site.
• Refining (Pumps and Compressors): In refineries, the module integrates data from critical pumps and compressors into the plant-wide asset management system.
• Pipeline Transportation: On pipeline pumps, the 3500/22M 146031-01 enables remote condition monitoring, helping to prevent unexpected failures that could disrupt product flow.
• Mining and Metals (Large Fans and Mills): The module collects data from large rotating equipment used in material processing, supporting predictive maintenance strategies.

Comparison with Competitors

In the machinery protection and condition monitoring market, the primary competitors to Bently Nevada are Emerson (CSI), Siemens (SITRANS), and GE (Bently is now part of Baker Hughes, historically GE).

• BENTLY 3500/22M 146031-01 vs. Emerson CSI 6500: Emerson offers the CSI 6500 series. The BENTLY 3500/22M 146031-01 is a market-leading interface module, widely recognized for its robust performance and the diagnostic power of System 1 software.
• BENTLY 3500/22M 146031-01 vs. Siemens SITRANS: Siemens provides monitoring solutions. The 3500/22M 146031-01 and the 3500 Series are often considered the de facto standard in many industries, particularly oil and gas and power generation, due to their extensive installed base and proven reliability.
• BENTLY 3500/22M 146031-01 vs. GE: While GE has its own monitoring systems, Bently Nevada’s products, including the BENTLY 3500/22M 146031-01, are specifically focused on protection and are known for their high-integrity design suitable for SIL-rated applications.

Selection Recommendations and Precautions

1. System Compatibility: The BENTLY 3500/22M 146031-01 must be used with a compatible 3500 Series rack and power supply. Ensure your rack firmware supports the module revision.
2. Software Requirements: To utilize the full functionality of the 3500/22M 146031-01, including transient data capture, you will need Bently Nevada’s System 1 software or another compatible data acquisition system.
3. Configuration: The BENTLY 3500/22M 146031-01 requires configuration using Bently Nevada’s 3500 Framework Configuration Software. This includes setting up communication parameters (IP address, Modbus maps) and data collection settings.
4. Communication Network Security: When connecting the 3500/22M 146031-01 to plant networks, follow cybersecurity best practices, including network segmentation and firewalls, to protect the monitoring system.
5. Qualified Personnel: Installation, configuration, and maintenance of the BENTLY 3500/22M 146031-01 should be performed by qualified personnel trained on the 3500 Series system to ensure proper setup and reliable operation.
