Bently 3500/04 136719-01

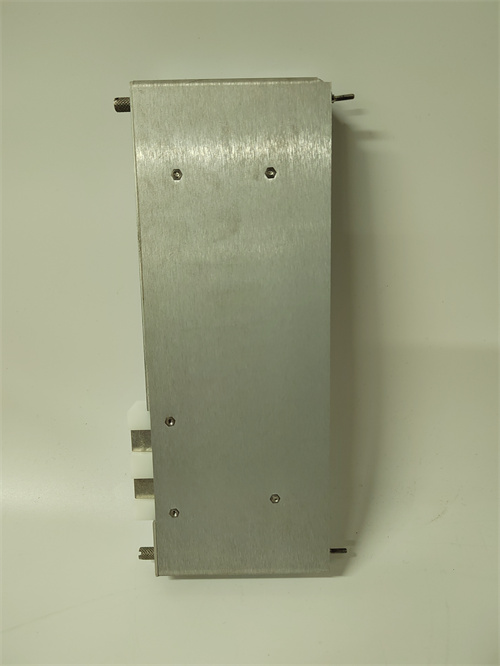

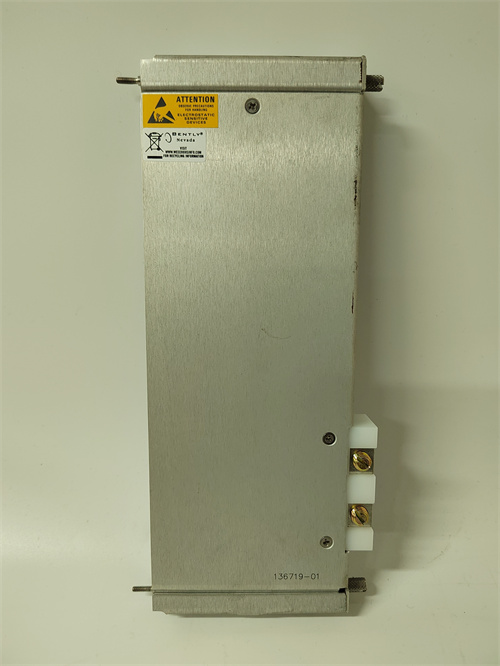

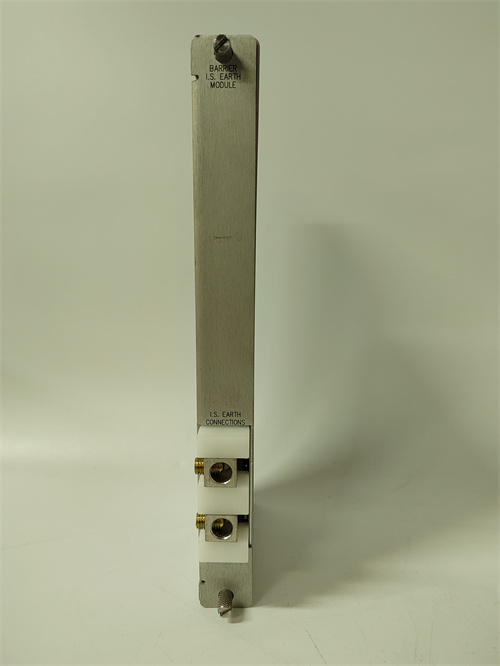

BENTLY 3500/04 136719-01 is a grounded I/O module for the Bently Nevada 3500 series machinery protection system, specializing in integrated analog/digital signal acquisition, conversion, and relay control for critical rotating equipment like turbines, compressors, and generators.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

BENTLY 3500/04 136719-01 is a grounded I/O module for the Bently Nevada 3500 series machinery protection system, specializing in integrated analog/digital signal acquisition, conversion, and relay control for critical rotating equipment like turbines, compressors, and generators. BENTLY 3500/04 136719-01 supports diverse sensor inputs (e.g., accelerometers, proximity probes) with a 0.5–10,000 Hz frequency response and ±5% measurement accuracy, capturing key parameters such as vibration and temperature. BENTLY 3500/04 136719-01 features separate analog/digital grounding and single-point grounding technology to eliminate interference, ensuring stable operation in electromagnetic-complex industrial environments. It offers multiple communication interfaces (LAN, serial, digital I/O) and MODBUS protocol compatibility, enabling seamless integration with DCS and PLC systems. BENTLY 3500/04 136719-01 has a robust IP67 protection rating and -40°C to +82°C operating range, delivering reliable performance in harsh settings like petrochemical refineries and power plants while complying with API 670 standards.

Technical Parameters BENTLY 3500/04 136719-01

Parameter Item Parameter Value
Product Type Grounded I/O Module (BENTLY 3500/04 136719-01)
Core Function Analog/digital signal acquisition, conversion, relay control, system integration
Input Compatibility Accelerometers, proximity probes, and other industrial sensors
Frequency Response 0.5 Hz – 10,000 Hz
Measurement Accuracy ±5% of full scale
Input/Output Ports 16 dry contact inputs, 16 normally open relay outputs (DPDT type)
Communication Interfaces LAN (RJ45, 10M/100Mbps), serial interface (9600–115200 bps)
Supported Protocols MODBUS
Power Supply 12–48 VDC (24 VDC typical)
Maximum Output Current 10 A
Output Voltage 5 VDC
Dimensions 170 mm × 105 mm × 32 mm
Weight Approximately 120 g
Operating Temperature -40°C to +82°C
Storage Temperature -40°C to +70°C
Humidity Tolerance 5% – 95% non-condensing
Protection Rating IP67
Certifications API 670 compliant
Housing Material Aluminum alloy

Advantages and Features BENTLY 3500/04 136719-01

  1. Strong Anti-Interference Capability: Separate analog/digital grounding and single-point grounding design of BENTLY 3500/04 136719-01 effectively reduces electromagnetic interference, ensuring signal stability.
  2. Multi-Interface Compatibility: Supports LAN, serial, and digital I/O interfaces, plus MODBUS protocol, enabling seamless connection with various control systems.
  3. Rugged Environmental Adaptability: IP67 protection rating and wide operating temperature range make BENTLY 3500/04 136719-01 suitable for harsh industrial environments.
  4. Hot-Swappable & Easy Maintenance: Modular design allows hot-swapping in 3500 series racks, minimizing system downtime during maintenance.
  5. Flexible Relay Control: 4-channel programmable DPDT relays with 100,000 contact life support complex logic control and alarm functions.

Application Cases BENTLY 3500/04 136719-01

  1. Power Plant Turbine Protection: A 300 MW thermal power plant deployed BENTLY 3500/04 136719-01 to monitor turbine vibration and bearing temperature. Its anti-interference design ensured accurate signal acquisition, triggering an alarm for abnormal vibration and avoiding a $400,000 unplanned shutdown.
  2. Petrochemical Compressor Monitoring: A refinery integrated BENTLY 3500/04 136719-01 into its compressor control system. Its MODBUS compatibility and multi-interface design simplified integration with the existing DCS, reducing project costs by 25%.
  3. Steel Mill Fan Condition Monitoring: A steel mill used BENTLY 3500/04 136719-01 to monitor fan vibration and pressure signals. Its IP67 protection and wide temperature tolerance ensured reliable operation in dusty, high-temperature environments, improving fan uptime by 30%.

Competitor Comparison

Feature BENTLY 3500/04 136719-01 Siemens SIMATIC S7-1500 I/O Module Emerson DeltaV I/O Module
Bently 3500 Series Compatibility Native (plug-and-play) Requires interface adapter Needs protocol converter
Protection Rating IP67 IP20 IP20
Operating Temperature Range -40°C to +82°C 0°C to +60°C -10°C to +60°C
Communication Interfaces LAN, serial, digital I/O PROFINET, Ethernet HART, Ethernet
Relay Type DPDT (100,000 contact life) SPDT (50,000 contact life) SPDT (60,000 contact life)
Anti-Interference Design Separate analog/digital grounding Basic filtering Basic filtering
Certifications API 670 compliant IEC 61158 compliant IEC 61158 compliant
Price Range Mid-High High High

Selection Suggestions

  1. Choose BENTLY 3500/04 136719-01 for Bently Nevada 3500 series systems requiring integrated signal acquisition and relay control in harsh or electromagnetic-complex environments.
  2. Prioritize BENTLY 3500/04 136719-01 for API 670-compliant projects (e.g., turbine, compressor protection) that demand high reliability and anti-interference performance.
  3. Select BENTLY 3500/04 136719-01 when upgrading legacy I/O modules to ensure seamless integration with existing 3500 series racks and DCS/PLC systems.

Precautions

  1. Follow the single-point grounding principle during installation of BENTLY 3500/04 136719-01 to avoid interference from potential differences between ground points.
  2. Configure communication parameters (baud rate, protocol) via 3500 Rack Configuration Software to match the connected control system.
  3. Do not exceed the maximum output current (10 A) to prevent relay contact burnout and module damage.
  4. Regularly inspect the aluminum alloy housing and connectors of BENTLY 3500/04 136719-01 for corrosion, especially in high-humidity or corrosive environments.
  5. Ensure hot-swapping is performed under the specified voltage range (12–48 VDC) to avoid electrical damage to the module.
