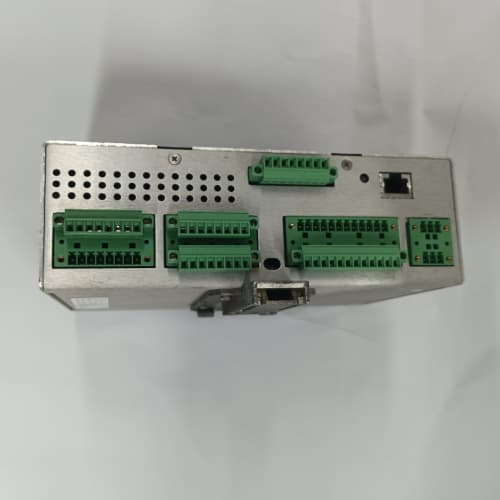

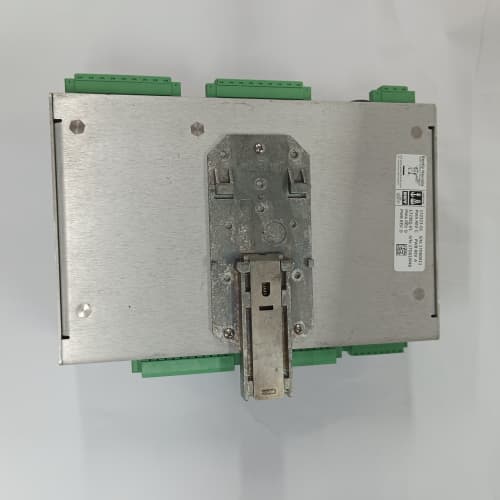

BENTLY 177230-01-01-05 | 3500/50 Tachometer Module

Description

Product Introduction

The turbine overspeed trip fires. The log says the speed hit 105%. The operator says it was steady at 99%. You pull the 3500 rack and find the 177230-01-01-05. One channel is reading 6% high.

That’s the BENTLY 177230-01-01-05—the 3500/50 tachometer module. Four channels. It takes signals from magnetic pickups, proximity probes, or geartooth sensors and turns them into speed readings. The 3500 rack uses these readings for overspeed protection, underspeed alarms, and speed display. When a channel drifts, the turbine can trip for no reason—or worse, not trip when it should.

I’ve swapped these in gas turbine packages, steam turbine controls, and compressor stations. The module is accurate when it’s new. The drift is minimal. The failure mode is usually input channel drift—one channel starts reading 2–3% high, the overspeed trip hits early, and the unit shuts down. The fix is swapping the module. The rack stays. Ten minutes, if the spare is on the shelf.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Speed modules are critical. If they drift, turbines trip.

1. Incoming Verification
   This batch came from a Bently authorized distributor’s final 3500 stock. Sealed boxes. Serial numbers traceable to 2015–2018 production.
2. Visual Inspection
   First: the edge connector. Gold fingers should be bright, no scoring. Next: the front panel—no scratches, no missing screws. Also check the labeling for wear. If it’s been used before, the rack slots will show it.
3. Live Functional Test
   We test the 177230-01-01-05 in a 3500 test rack with a precision signal generator. Procedure:
   • Power‑up: verify all channel LEDs cycle, module OK
   • Channel 1: apply 100 Hz sine wave (1 V p‑p), verify reading 100 Hz ±0.05
   • Channel 1: apply 5 kHz, verify reading
   • Channel 1: apply 10 kHz, verify reading
   • All four channels: apply 1 kHz simultaneously, verify readings match
   • Alarm test: set overspeed at 5 kHz, apply 5.1 kHz, verify alarm trips
   • Soak test: run all channels at 5 kHz for 1 hour, monitor for drift
4. Input Threshold Test
   Sweep input amplitude from 0 to 2 V at 1 kHz. Record minimum amplitude where the module locks on. Should be <200 mV for magnetic pickups.
5. Final QC & Packaging
   Passed modules go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, frequency accuracy, and alarm verification.

Field Replacement Pitfalls

Speed modules are simple. That’s why people mess them up.

1. Input type mismatch.
   The 177230-01-01-05 can be configured for magnetic pickup or proximity probe. The configuration is in software, not jumpers. If you plug in a module set for MP and feed it a proximity probe signal, the reading will be wrong. I’ve seen a plant with a speed reading that was 50% low because the module was configured wrong. Check the config before you install.
2. ❌ Gap setting.
   Proximity probes need a specific gap. If the gap is too wide, the signal amplitude is low. The module will miss pulses. The reading will be low. I’ve seen a turbine trip on overspeed because the probe gap drifted and the module started seeing every other tooth. The module was fine. The probe was the problem.
3. Shield grounding.
   Speed signals are low‑voltage. If the cable shield is grounded at both ends, you get ground loops. The module will see noise. The reading will be jumpy. I’ve seen a plant with erratic speed readings that traced back to a shield grounded at both ends. Ground at one end only.
4. Alarm setpoints.
   The 3500 system stores alarm setpoints in the rack configuration, not on the module. If you swap a module, the setpoints stay with the rack. That’s good. But if you’re replacing a module after a configuration change, the new module might not have the right setpoints loaded. I’ve seen a plant swap a module and lose overspeed protection because the configuration didn’t transfer. Verify the setpoints after you swap.
5. Firmware mismatch.
   The 177230-01-01-05 has internal firmware. Different revisions have different timing characteristics. If you swap in a module with older firmware, it may work—or it may not. I’ve seen a module that passed all tests but failed the overspeed test because the firmware didn’t support the faster response time needed for the turbine. Match the firmware revision.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this BENTLY 177230-01-01-05 was built by Bently, never installed, and never repaired. The input circuits are fresh. The internal oscillator hasn’t drifted. The edge connector has never been mated.

Refurbished 3500 tachometer modules are risky. The input conditioning circuits are sensitive. A refurb module might have been in a plant where it got hit by lightning—it still works, but the threshold is off. I’ve seen a refurb module that passed a 1 kHz test but failed at 10 kHz. The input comparator was marginal. The turbine tripped for no reason twice before they found the module.

What we provide:

• Traceable serial number (matches Bently production records)
• 4‑channel frequency test (100 Hz, 1 kHz, 5 kHz, 10 kHz)
• Simultaneous frequency test (all channels at 1 kHz)
• Alarm verification (overspeed, underspeed)
• Input threshold test (<200 mV for MP inputs)
• 1‑hour soak test at 5 kHz
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new module would cost if Bently still made them. You’re paying for the test, the warranty, and the certainty that the speed reading isn’t going to drift.

Performance Benchmarks & Test Results

All tests performed on 3500 test rack, 25 °C ambient.

Thermal performance note:
At 55 °C ambient, the frequency reading drifts about 0.05%. Still within spec. The input threshold drifts up to 180 mV—still fine for most magnetic pickups. If your pickup output is marginal (under 200 mV), the module may miss pulses at high temp. Keep your probes gapped right.

One more thing from the field:
The 177230-01-01-05 has a small test point on the front edge—TP1. It’s the internal frequency reference. If you’re seeing drift across all channels, probe TP1. Should be 10.000 MHz ±100 Hz. If it’s off, the whole module is drifting. Swap it. I’ve seen a plant chase a speed issue for weeks before someone checked the reference. The module was soft. The turbine was fine.
