BENTLY 176449-08

Description

Product Overview

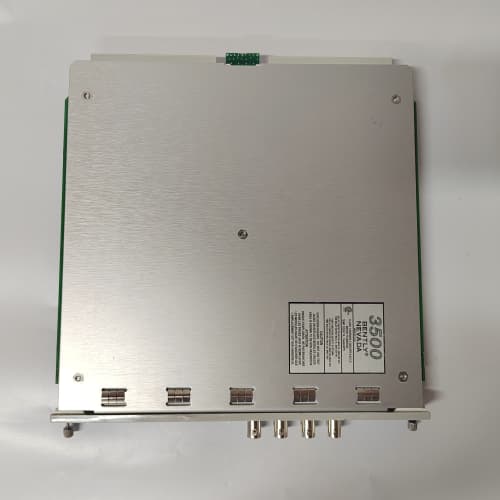

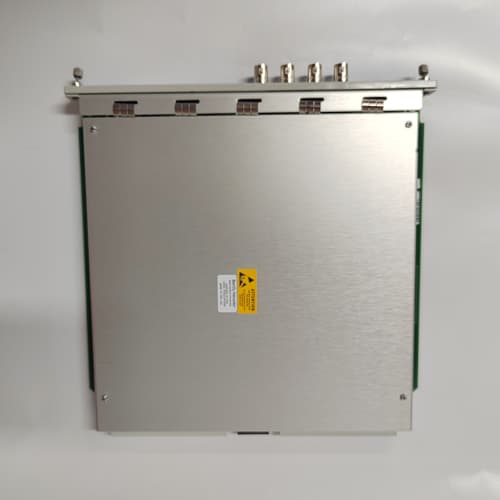

The BENTLY 176449-08 is a critical monitoring module within the Bently Nevada 3500 machinery protection system, specifically a Tachometer Input Module. This module serves as the primary interface for processing signals from speed sensors, such as magnetic pickups (MPUs), photoelectric pickups, or proximity probes, to determine the rotational speed (RPM) and phase reference of a shaft. Its primary function is to condition the raw sensor signal, convert it into a clean, digital speed signal, and provide vital outputs for the entire monitoring system, including a Keyphasor® reference pulse. For detailed technical manuals, configuration guides, and wiring diagrams, please refer to the official product resource: BENTLY 176449-08. The BENTLY 176449-08 is fundamental for speed-based protection (overspeed/underspeed), providing the timing reference for vibration phase measurement, and enabling rotor balancing and analysis. Its failure can compromise the entire machinery protection scheme.

Product Parameters and Specifications

• Function: Tachometer / Speed Input Module for 3500 System.
• Input Types: Compatible with various speed sensors:
  • Magnetic Pickup (MPU): Accepts a raw AC voltage signal from a passive magnetic speed sensor.
  • Proximity Probe: Can interface with an eddy current proximity probe system (often via a separate proximitor).
  • Photoelectric or Hall Effect Sensors: Accepts digital pulse signals.
• Signal Conditioning: Includes adjustable threshold triggering and input signal filtering to ensure accurate zero-crossing detection even with noisy signals.
• Key Outputs:
  • Speed (RPM): A computed and scaled analog output (typically 4-20 mA) and a digital value for display.
  • Keyphasor® Pulse: A clean, once-per-revolution digital pulse synchronized with a physical mark on the shaft, essential for vibration phase analysis.
  • Buffered Sensor Output: A replicated raw sensor signal for connection to other devices like data collectors.
• Dynamic Range: Capable of measuring a wide speed range, from very low (e.g., 30 RPM) to very high (e.g., 30,000+ RPM) speeds.
• Diagnostics: Monitors input signal health, providing alarms for Sensor Failure (loss of signal) and Zero Speed conditions.
• Configuration: Configured via the 3500/20 or 3500/22 Frame Interface Module using dedicated software. Settings include sensor type, pulses per revolution, and alarm setpoints.

Advantages and Key Features

The BENTLY 176449-08 offers distinct advantages for reliable speed monitoring. Its core strength is providing a highly reliable and accurate Keyphasor® reference, which is the cornerstone for all synchronous vibration analysis (e.g., identifying imbalance, misalignment). The module’s robust signal conditioning ensures stable speed measurement in electrically noisy industrial environments, rejecting noise that could cause false triggering. It delivers multiple, isolated output signals (RPM analog, Keyphasor, buffered signal) from a single input, distributing critical timing data throughout the monitoring system. The module is designed for high reliability and failsafe operation; a sensor failure will generate a diagnostic alarm rather than a false speed reading. Integration within the 3500 system allows the BENTLY 176449-08 to seamlessly communicate speed data and alarms to the system’s monitor modules (for vibration, position) and the central monitoring unit.

Application Cases in Industry

This tachometer module is a standard component on virtually all critical rotating equipment protected by a Bently Nevada 3500 system. In Gas and Steam Turbines for power generation, the 176449-08 provides the speed signal for overspeed protection and the phase reference for balancing. Within Centrifugal and Axial Compressors in oil & gas and chemical plants, it monitors compressor speed for surge control and provides timing for vibration analysis. For Large Motors, Pumps, and Fans, it enables speed-based protection and condition monitoring. It is also essential on Hydroelectric Turbines and Marine Propulsion systems. Any application where knowing the exact rotational speed and phase is critical for protection or analysis relies on this module.

Comparison with Competing Products

• vs. Basic Speed Switches: Mechanical or simple electronic speed switches provide only a trip output. The BENTLY 176449-08 provides continuous, precise speed measurement, a phase reference, and comprehensive diagnostics, enabling predictive maintenance rather than just basic protection.
• vs. PLC High-Speed Counter Cards: A PLC card can count pulses but typically lacks the specialized conditioning, filtering, and Keyphasor generation required for machinery diagnostics. It also may not have the same level of noise immunity or fail-safe design as the purpose-built 176449-08.
• vs. Other Machinery Monitoring System Tach Modules (e.g., EPRO, Vibro-Meter): These are direct competitors. The BENTLY 176449-08 differentiates itself through its ubiquity in the industry, seamless integration with the dominant 3500 platform, and the proven reliability of the Bently Nevada Keyphasor system. Competitive offerings may differ in configuration software, connector types, or specific filtering algorithms.

Selection Suggestions and Precautions

• Selection Advice:
  1. Sensor Compatibility: Match the BENTLY 176449-08 module configuration to your specific speed sensor. Correctly set the input type (MPU, prox, etc.), sensitivity, and trigger threshold in the configuration software.
  2. Pulses Per Revolution (PPR): Accurately configure the number of pulses per revolution from the sensor. For a single-tooth gear and MPU, this is typically 1 PPR. An incorrect PPR setting will yield a wildly inaccurate RPM reading.
  3. Redundancy Consideration: For critical machines, consider redundant speed sensing with two independent sensors connected to separate 176449-08 modules in a voting scheme.
  4. Cable and Installation: Use the correct, shielded cable for the sensor. For MPUs, ensure proper gap setting between the sensor tip and the gear tooth. An improper installation is the most common source of speed signal issues.
• Important Precautions:
  1. Sensor Gap (for MPUs): The air gap between a magnetic pickup and the gear tooth is critical. Follow the sensor manufacturer’s specifications (typically 0.5-1.0 mm). Too large a gap causes a weak signal; too small risks physical damage.
  2. Shielding and Grounding: Properly ground the shield of the sensor cable at the 3500 rack end only to prevent ground loops. Route the cable away from power cables to avoid inductive noise.
  3. Keyphasor Marker: The physical marker on the shaft (keyway, painted line) used for the Keyphasor must be distinct and reliable. A poorly defined mark can cause jitter in the phase reference.
  4. Configuration Verification: After configuration, verify the module’s operation. Check that the displayed RPM matches a trusted source, and use an oscilloscope to confirm the Keyphasor pulse is clean and correctly timed.
