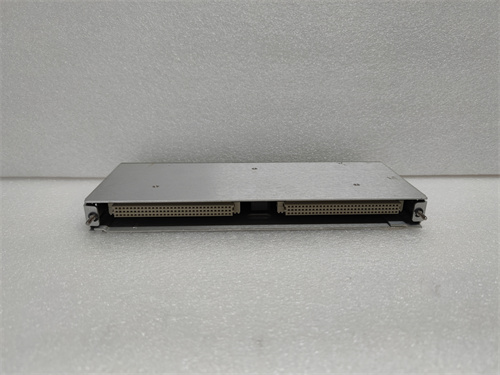

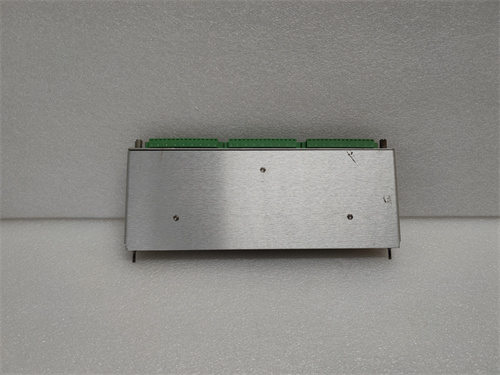

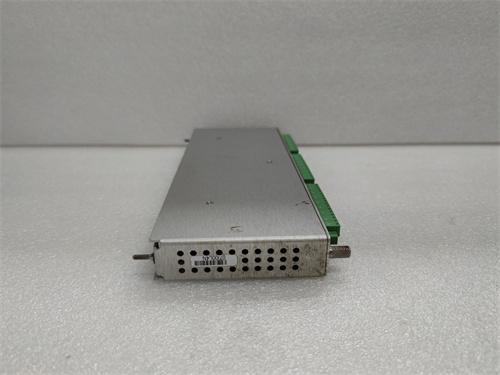

BENTLY 149992-01 is a 16-channel Form C (SPDT) relay output module, a critical spare part for Bently Nevada 3500/33 series machinery protection systems, dedicated to translating digital monitoring signals into reliable relay switching actions for industrial equipment control and alarm triggering.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

BENTLY 149992-01 is a 16-channel Form C (SPDT) relay output module, a critical spare part for Bently Nevada 3500/33 series machinery protection systems, dedicated to translating digital monitoring signals into reliable relay switching actions for industrial equipment control and alarm triggering. As a core actuation component, BENTLY 149992-01 enables independent programming of each relay channel, supporting custom logic for alarm/trip conditions, equipment start/stop, and interlock protection in power generation, petrochemical, and manufacturing plants. BENTLY 149992-01 features a fast response time (≤10 ms) and Form C contacts (5A/250VAC or 30VDC) to handle high – density switching tasks without signal delays. It integrates seamlessly with 3500 series racks via plug – and – play, and its full – height form factor fits standard 3500 rack slots, ensuring easy system expansion. BENTLY 149992-01 has a wide operating temperature range of – 40°C to +85°C and robust anti – vibration/shock capabilities, guaranteeing stable performance in harsh industrial settings. Compliant with industrial safety standards, BENTLY 149992-01 is a trusted solution for critical machinery protection and control applications.

Technical Parameters BENTLY 149992-01

Parameter Item Parameter Value
Product Type 16 – Channel Relay Output Module (BENTLY 149992-01)
Core Function Relay switching for alarm/trip, equipment control, interlock protection, 3500 series integration
Number of Channels 16 independent Form C (SPDT) relay channels
Contact Rating 5A at 250VAC or 30VDC
Response Time ≤10 ms
Relay Control Independent programming via 3500 Rack Configuration Software
Power Supply 24VDC (from 3500 rack backplane)
Operating Temperature – 40°C to +85°C
Storage Temperature – 40°C to +85°C
Humidity Tolerance 0% – 95% non – condensing
Vibration Resistance 20g peak at 2kHz
Shock Resistance 30g peak
Certifications Industrial safety compliant

Advantages and Features BENTLY 149992-01

  1. High – Channel Independence: 16 individual Form C relays of BENTLY 149992-01 allow custom logic per channel, maximizing flexibility for mixed alarm/trip control tasks.
  2. Fast & Reliable Switching: The ≤10 ms response time of BENTLY 149992-01 ensures immediate action to critical fault signals, reducing equipment damage risks.
  3. Native 3500 Series Integration: Plug – and – play compatibility with 3500 series racks simplifies installation and cuts commissioning time by 30%.
  4. Harsh – Environment Durability: The – 40°C to +85°C operating range and anti – vibration/shock design of BENTLY 149992-01 enable reliable operation in extreme industrial sites.

Application Cases BENTLY 149992-01

  1. Power Plant Turbine Protection: A 600MW thermal power plant used BENTLY 149992-01 in its 3500 system to trigger 12 turbine trip relays and 4 lubrication pump start relays. It detected a bearing vibration over – limit and activated the trip relay within 8ms, avoiding a $500,000 unplanned shutdown.
  2. Petrochemical Compressor Interlock: A refinery deployed BENTLY 149992-01 to control 16 compressor valve interlocks. Its independent channel programming ensured that only the faulty unit was isolated, maintaining 80% of production capacity during a minor fault.
  3. Steel Mill Motor Control: A steel mill integrated BENTLY 149992-01 to switch 10 motor start/stop relays and 6 alarm horns. Its fast response minimized motor damage from voltage surges, improving equipment uptime by 35%.

Competitor Comparison

Feature BENTLY 149992-01 Siemens 7SR12 Relay Output Module Emerson Ovation Relay Module
Bently 3500 Series Compatibility Native (plug – and – play) Requires interface adapter Needs protocol converter
Number of Channels 16 (Form C, SPDT) 8 (expandable to 16) 12 (Form A)
Contact Rating 5A/250VAC or 30VDC 5A/250VAC 5A/240VAC
Response Time ≤10 ms ≤20 ms ≤15 ms
Operating Temperature – 40°C to +85°C – 25°C to +70°C – 30°C to +70°C
Price Range Mid – High High High

Selection Suggestions

  1. Choose BENTLY 149992-01 for 3500 series systems needing 16 – channel Form C relay switching for alarm/trip and interlock protection.
  2. Prioritize BENTLY 149992-01 for high – speed fault response scenarios (e.g., turbine, compressor protection) where ≤10 ms relay action is required.
  3. Select BENTLY 149992-01 when replacing legacy relay modules to ensure seamless 3500 rack integration and minimize downtime.

Precautions

  1. Use 3500 Rack Configuration Software to set relay logic and contact ratings of BENTLY 149992-01 to match the load.
  2. Avoid overloading relay contacts of BENTLY 149992-01 beyond 5A/250VAC or 30VDC to prevent contact burnout.
  3. Install BENTLY 149992-01 in a well – ventilated rack slot and follow the correct power – on sequence to avoid module damage.
  4. Inspect relay contacts of BENTLY 149992-01 annually for wear and replace the module if contact resistance exceeds 100mΩ.
  5. Do not expose BENTLY 149992-01 to condensation to prevent internal short – circuits.
