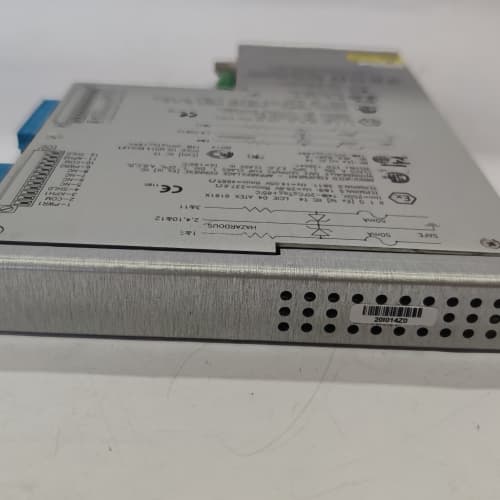

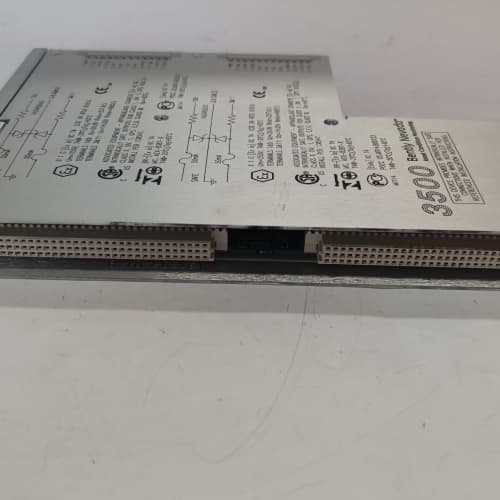

BENTLY 145988-02

Description

Technical Parameters BENTLY 145988-02

Advantages and Features BENTLY 145988-02

1. High Channel Density: With 16 independent channels, BENTLY 145988-02 reduces the number of modules required for multi-point monitoring, optimizing rack space and lowering hardware costs.
2. Dual Sensor Compatibility: Support for both RTD and TC inputs eliminates the need for adapter modules, simplifying system integration for projects with mixed sensor types.
3. Redundancy and Reliability: TMR configuration support and built-in voting mechanisms ensure BENTLY 145988-02 avoids single-point failures, critical for safety-critical industrial applications.
4. Easy Programming & Integration: Native compatibility with 3500 series racks and configuration via 3500 Rack Software streamlines installation and commissioning.

Application Cases BENTLY 145988-02

1. Power Plant Transformer Monitoring: A 700 MW coal-fired power plant deployed BENTLY 145988-02 to monitor the temperature of 12 transformer windings and 4 bushings. Its 16-channel design covered all critical points, and the programmable alarms detected an overheating fault in advance, avoiding a $600,000 unplanned shutdown.
2. Petrochemical Pipeline Temperature Control: A petrochemical enterprise used BENTLY 145988-02 in its long-distance pipeline monitoring system. The module’s compatibility with both RTD and TC sensors adapted to the mixed sensor layout along the pipeline, reducing integration costs by 30%.
3. Metallurgical Furnace Condition Monitoring: A steel mill integrated BENTLY 145988-02 into its blast furnace temperature monitoring system. Its TMR redundancy configuration ensured continuous operation even if one module failed, reducing system downtime by 40%.

Competitor Comparison

Selection Suggestions

1. Choose BENTLY 145988-02 for 3500 series systems that require monitoring 16+ temperature points and use mixed RTD/TC sensors.
2. Prioritize BENTLY 145988-02 for safety-critical applications (e.g., power plants, chemical plants) that demand TMR redundancy to avoid single-point failures.
3. Select BENTLY 145988-02 when upgrading legacy temperature monitoring systems to maximize channel density and simplify integration with existing 3500 series racks.

Precautions

1. Use the 3500 Rack Configuration Software to correctly set the sensor type and alarm thresholds for each channel of BENTLY 145988-02 to avoid measurement errors.
2. For TMR configurations, install three BENTLY 145988-02 modules in adjacent rack slots to ensure proper voting mechanism operation.
3. Use shielded cables for sensor connections to BENTLY 145988-02 and ensure correct wiring (3-wire/4-wire for RTD) to maintain measurement accuracy.
4. Regularly calibrate BENTLY 145988-02 with standard temperature sources to retain its ±3°C accuracy at room temperature.
5. Avoid exposing BENTLY 145988-02 to condensation or extreme humidity (exceeding 95% non-condensing) to prevent internal component damage.
