BENTLY 138607-01

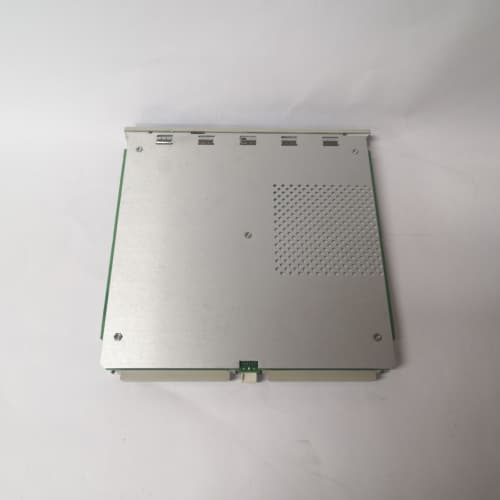

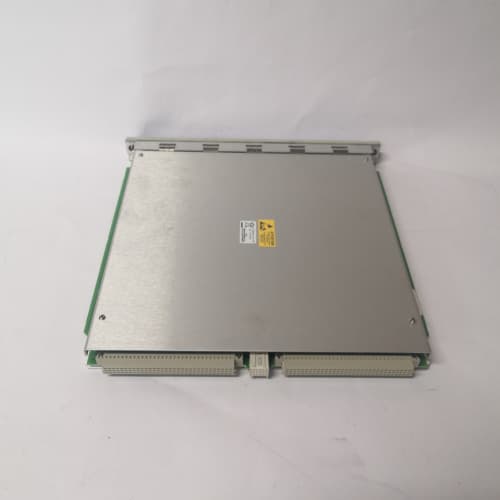

BENTLY 138607-01 (3500/22M) is a standard transient data interface (TDI) module designed for Bently Nevada 3500 machinery protection systems, acting as a critical bridge between the 3500 system and System 1 condition monitoring software to capture, store, and transmit steady-state and transient data (waveforms, spectra) of critical rotating equipment in power, oil & gas, and heavy manufacturing.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

BENTLY 138607-01 (3500/22M) is a standard transient data interface (TDI) module designed for Bently Nevada 3500 machinery protection systems, acting as a critical bridge between the 3500 system and System 1 condition monitoring software to capture, store, and transmit steady-state and transient data (waveforms, spectra) of critical rotating equipment in power, oil & gas, and heavy manufacturing. As a core data acquisition component, BENTLY 138607-01 collects data from 3500 monitoring modules (e.g., 3500/42M temperature, 3500/40M vibration) at up to 100 kHz, with 2 GB on-board storage to retain pre/post-alarm transient data for root-cause analysis of machinery faults. BENTLY 138607-01 supports 10/100Base-TX Ethernet and 100Base-FX fiber-optic interfaces for high-speed data transfer to host systems, ensuring real-time access to dynamic equipment behavior during startups, shutdowns, or load changes. BENTLY 138607-01 integrates natively with the 3500 backplane, enabling plug-and-play deployment and seamless data synchronization with other 3500 modules. Its industrial design resists EMI and temperature fluctuations, making it reliable in harsh plant environments. Whether deployed in a 1500MW nuclear power plant’s turbine overspeed transient monitoring or a refinery’s centrifugal compressor surge event capture, BENTLY 138607-01 delivers actionable data for predictive maintenance, establishing BENTLY 138607-01 as an essential tool for machinery diagnostics and protection.

Technical Parameters BENTLY 138607-01

Parameter Item Parameter Value
Product Model BENTLY 138607-01 (3500/22M)
Product Type Standard Transient Data Interface (TDI) Module (3500 Series)
Data Acquisition Rate Up to 100 kHz
Storage Capacity 2 GB (pre/post-alarm transient data retention)
Communication Interfaces 10/100Base-TX Ethernet (RJ45); 100Base-FX fiber optic
Software Compatibility Bently System 1 Condition Monitoring Software
Power Supply 24 VDC ±10% (from 3500 rack power module)
Power Consumption 10.5 W
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Dimensions (W×H×D) 241.3 mm × 24.4 mm × 242 mm
Weight ~0.82 kg
Mounting 1 full-height slot in 3500 rack (adjacent to power supply)
Configuration Tool Bently 3500 Rack Configuration Software
Safety Compliance CE, RoHS compliant

Advantages and Features BENTLY 138607-01

  1. High-Speed Transient Data Capture: BENTLY 138607-01 acquires data at 100 kHz to capture rapid dynamic events (e.g., gear mesh vibration, bearing defects) that standard monitoring misses.
  2. Large On-Board Storage: 2 GB storage of BENTLY 138607-01 retains pre/post-alarm data, eliminating the need for external data loggers and enabling comprehensive fault analysis.
  3. Multi-Interface Connectivity: BENTLY 138607-01 supports Ethernet and fiber-optic links, ensuring reliable data transfer in high-EMI industrial environments.
  4. Native 3500 System Integration: BENTLY 138607-01 seamlessly syncs with 3500 backplane, simplifying deployment and enabling plug-and-play with existing 3500 modules.
  5. Pre/Post-Alarm Data Retention: BENTLY 138607-01 automatically saves data before/after alarms, providing critical context for diagnosing the root cause of equipment trips.

Application Cases

  1. Nuclear Power Plant Turbine Overspeed Monitoring: A 1500MW nuclear plant used BENTLY 138607-01 to capture turbine overspeed transient data during a safety test. The module’s 100 kHz sampling rate recorded a 20 ms speed spike, enabling engineers to adjust governor settings and prevent a potential catastrophic failure, avoiding $3.8 million in downtime.
  2. Refinery Compressor Surge Protection: A refinery deployed BENTLY 138607-01 to monitor centrifugal compressor surge events. The module stored 30 seconds of pre/post-surge vibration data, which System 1 software analyzed to optimize anti-surge valve settings, reducing surge incidents by 75% and extending compressor life by 25%.
  3. Steel Mill Motor Startup Analysis: A steel plant retrofitted its 3500 motor monitoring system with BENTLY 138607-01 to capture startup transient data. The module’s fiber-optic interface transmitted data through the mill’s high-EMI environment, allowing engineers to detect rotor bar defects early, cutting maintenance costs by $220,000 annually.

Competitor Comparison

Comparison Item BENTLY 138607-01 Emerson CSI 6500 TDI Module SKF CMSS Transient Data Module
Sampling Rate 100 kHz 50 kHz 80 kHz
Storage Capacity 2 GB 1 GB 1.5 GB
Interfaces Ethernet + fiber optic Ethernet only Ethernet only
Native System Compatibility Bently 3500 Emerson CSI 6500 SKF CMSS
Software Compatibility System 1 AMS Machinery Manager SKF @ptitude
Price (USD) ~$12,400 ~$11,800 ~$12,000

Selection Suggestions

  1. Choose BENTLY 138607-01 for 3500 system upgrades requiring high-speed transient data capture for turbine, compressor, or motor fault diagnostics.
  2. Deploy BENTLY 138607-01 in applications needing pre/post-alarm data retention to enable root-cause analysis of equipment trips in power generation or oil & gas sectors.
  3. Select BENTLY 138607-01 for projects with high-EMI environments, leveraging its fiber-optic interface for reliable data transmission to System 1 software.

Precautions

  1. Ensure BENTLY 138607-01 is mounted adjacent to the 3500 rack power supply for stable power and backplane communication.
  2. Use Bently-certified cables for BENTLY 138607-01’s Ethernet/fiber-optic interfaces to avoid data loss or transmission errors.
  3. Configure data retention settings in BENTLY 138607-01 via 3500 Rack Configuration Software to align with equipment criticality and fault analysis needs.
  4. Regularly back up stored data on BENTLY 138607-01 to prevent data loss during module replacement or system upgrades.
