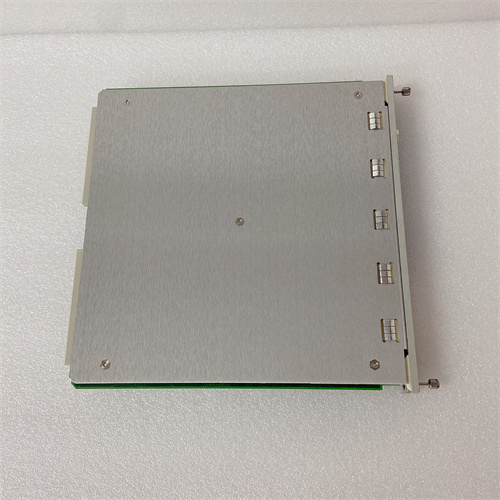

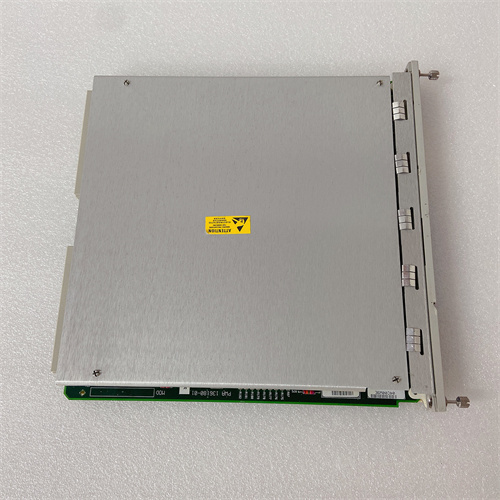

BENTLY 136180-01

BENTLY 136180-01 (3500/92) is a high – performance communication gateway module designed for Bently Nevada 3500 machinery protection and condition monitoring systems, mainly used to integrate real – time monitoring data of the 3500 rack with DCS, PLC, and SCADA systems in power generation, oil & gas, and heavy manufacturing industries.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

BENTLY 136180-01 (3500/92) is a high – performance communication gateway module designed for Bently Nevada 3500 machinery protection and condition monitoring systems, mainly used to integrate real – time monitoring data of the 3500 rack with DCS, PLC, and SCADA systems in power generation, oil & gas, and heavy manufacturing industries. As a core data transfer component, BENTLY 136180-01 supports Ethernet (10BASE – T, RJ45) and serial (RS232/RS422/RS485) communications, and is compatible with Modbus RTU, Modbus/TCP, and Bently proprietary protocols, which can smoothly transmit monitoring data such as vibration, temperature, and displacement, as well as module and alarm status information. BENTLY 136180-01 can be configured with a custom Modbus register map through Bently 3500 Rack Configuration Software, which can flexibly map the key data of the 3500 system to the address accessible to the upper – level control system, and also supports time – stamped data collection to ensure the traceability of monitoring data. Its built – in redundant communication capability and self – diagnosis function can reduce the risk of data transmission interruption, and its industrial – grade design can operate stably in harsh environments with electromagnetic interference and temperature fluctuations. Whether it is applied to the data integration of a 1200MW combined cycle power plant’s gas turbine monitoring system and DCS, or the remote monitoring data transmission of a refinery’s centrifugal compressor group, BENTLY 136180-01 can provide reliable and efficient data communication services, making BENTLY 136180-01 an indispensable part of the 3500 system for realizing cross – system data sharing and intelligent decision – making.

Technical Parameters BENTLY 136180-01

Parameter Item Parameter Value
Product Model BENTLY 136180-01 (3500/92)
Product Type Communication Gateway Module (3500 Series)
Communication Interfaces 1 x RJ45 Ethernet (10BASE – T); 2 x serial (RS232/RS422/RS485)
Supported Protocols Modbus RTU, Modbus/TCP, Bently Nevada proprietary protocol
Data Transfer Rate Ethernet: 10 Mbps; Serial: Up to 115.2 kbps
Power Supply 24VDC ±10% (from 3500 rack power module)
Power Consumption 5.0W (Modbus RS232/RS422); 5.6W (Modbus RS485)
Data Mapping Configurable Modbus register utility for custom data mapping
Redundancy Support Optional (with redundant I/O modules)
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Dimensions (W×H×D) 241.3mm × 24.4mm × 242mm
Weight ~0.82kg
Mounting 1 full – height slot in Bently 3500 rack
Configuration Tool Bently 3500 Rack Configuration Software
Safety Compliance CE, RoHS compliant

Advantages and Features BENTLY 136180-01

  1. Multi – Interface & Multi – Protocol Support: BENTLY 136180-01 integrates Ethernet and multiple serial interfaces, and is compatible with mainstream industrial protocols, which can adapt to various upper – level system integration requirements and reduce the cost of additional protocol converters.
  2. Customizable Data Mapping: BENTLY 136180-01‘s configurable Modbus register utility can customize data mapping according to the needs of the upper – level system, realizing efficient and targeted data transmission and improving the data processing efficiency of the control system by 40%.
  3. Redundant & Self – Diagnostic Capability: BENTLY 136180-01 supports redundant communication configuration and has a perfect self – diagnostic function, which can monitor the communication status in real time and record error logs, thus reducing the risk of data loss and shortening the fault – finding time by 50%.
  4. Seamless 3500 System Integration: BENTLY 136180-01 is perfectly integrated with the 3500 system backplane, and can quickly collect data from other monitoring modules, realizing plug – and – play and simplifying the system deployment process.
  5. Stable Performance in Harsh Environments: The industrial – grade design of BENTLY 136180-01 can resist electromagnetic interference and temperature changes, ensuring stable data transmission in extreme industrial environments.

Application Cases

  1. Combined Cycle Power Plant DCS Integration: A 1200MW combined cycle power plant used BENTLY 136180-01 to connect the 3500 gas turbine monitoring system and the Siemens T3000 DCS. The module’s Modbus/TCP protocol support realized real – time transmission of turbine vibration, bearing temperature and other data to the DCS, enabling operators to comprehensively grasp the equipment status and reducing the unplanned downtime by 35%.
  2. Refinery Compressor Remote Monitoring: A large – scale refinery deployed BENTLY 136180-01 in the centrifugal compressor group monitoring system. The module transmitted the vibration and displacement data collected by the 3500/22M module to the remote SCADA system through the RS485 interface and Modbus RTU protocol, realizing 24 – hour remote monitoring and reducing the on – site patrol cost by 60%.
  3. Steel Mill Motor Monitoring System Upgrade: A steel mill retrofitted the 3500 motor monitoring system with BENTLY 136180-01. The module’s configurable data mapping function mapped the motor winding temperature and bearing vibration data to the Rockwell PLC register, realizing the linkage control of the motor protection and the production line, and cutting the maintenance cost by 28% annually.

Competitor Comparison

Comparison Item BENTLY 136180-01 Emerson CSI 6500 Gateway SKF CMSS Communication Module
Communication Interfaces Ethernet + RS232/RS422/RS485 Ethernet + RS485 Ethernet only
Supported Protocols Modbus RTU/TCP, Bently Proprietary Modbus RTU/TCP, OPC UA Modbus RTU/TCP
Data Mapping Configurable Modbus register utility Fixed register map Limited configurable mapping
Native System Compatibility Bently 3500 Emerson CSI 6500 SKF CMSS
Redundancy Support Optional Standard Optional
Typical Price (USD) ~$3,800 ~$4,100 ~$3,500

Selection Suggestions

  1. Choose BENTLY 136180-01 when upgrading or expanding the Bently 3500 monitoring system to make full use of its native integration advantage and realize seamless data communication with the 3500 rack.
  2. Deploy BENTLY 136180-01 in projects that need to integrate multiple protocols and interfaces with DCS, PLC, or SCADA systems, especially in the power and oil & gas industries with complex control systems.
  3. Select BENTLY 136180-01 for applications that require redundant communication and self – diagnosis functions to ensure the reliability of critical equipment monitoring data transmission.

Precautions

  1. Ensure that BENTLY 136180-01 is powered by a stable 24VDC power supply from the 3500 rack power module to avoid communication interruption caused by voltage fluctuations.
  2. Use the Bently 3500 Rack Configuration Software to correctly configure the Modbus register map of BENTLY 136180-01 to ensure that the data format matches the upper – level system requirements.
  3. When wiring the serial port of BENTLY 136180-01, pay attention to the matching of the communication baud rate and parity bit with the connected equipment to prevent data transmission errors.
  4. Regularly check the communication status and error logs of BENTLY 136180-01, and perform firmware upgrades in time to ensure the stability and security of the module.
