BENTLY 133819-02

Description

Product Description

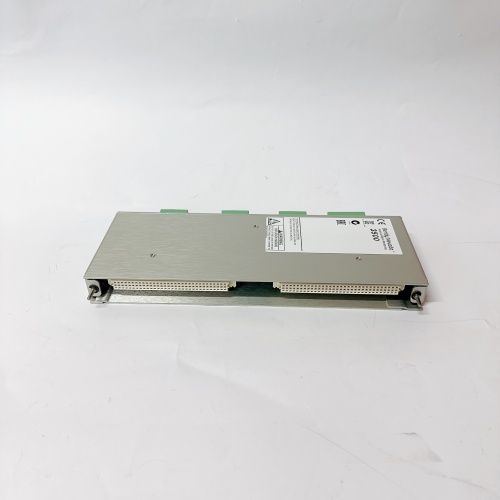

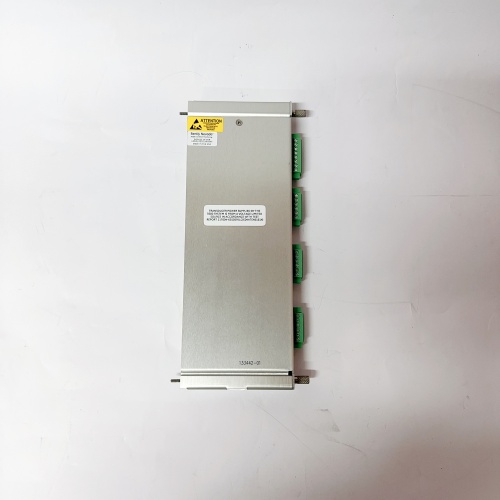

The BENTLY 133819-02 is a Vibration Monitor / Driver Module for the Bently Nevada 3500/42M or 3300 machinery health monitoring system. This module is a key component within the monitoring rack, specifically designed to accept signals from velocity transducers (seismic pickups) and accelerometers. Its primary function is to condition, process, and monitor these vibration signals to provide essential protective and prognostic information for rotating machinery. The BENTLY 133819-02 typically takes the raw AC voltage signal from a velocity sensor (measured in mV/in/sec) or an IEPE accelerometer, performs necessary integration or filtering, and converts it into standardized DC signals representing overall vibration levels (e.g., in mils peak-to-peak or mm/s). These values are then used for alarm and trip functions, as well as for trending and analysis. The module’s role is critical for detecting imbalance, misalignment, and other mechanical faults in machines like turbines, compressors, and large pumps.

Technical Parameters and Specifications

• System Compatibility: Bently Nevada 3500/42M System, 3300 System.
• Module Type: Vibration Monitor (Velocity/Acceleration Input).
• Input Channels: Typically a single-channel or dual-channel module, each channel accepting one transducer signal.
• Supported Sensors:
  • Velocity Transducers: Seismic pickups (e.g., with sensitivity like 200 mV/in/sec).
  • Accelerometers: IEPE (Integrated Electronics Piezo-Electric) type with constant current power (typically 2-20 mA).
• Signal Processing:
  • For velocity inputs: May provide buffering and filtering.
  • For accelerometer inputs: Provides the required constant current excitation (e.g., 4 mA) and performs integration to convert acceleration (g’s) to velocity.
• Outputs: Provides processed DC signals proportional to vibration level for the rack’s backplane, which are used by other modules (like a TDI—Turbine Dynamic Interface) or the system’s monitoring framework to generate Alert and Danger (trip) setpoints.
• Frequency Response: Defined bandpass filtering (e.g., 4.5 Hz to 1000 Hz) to focus on the vibration frequency range relevant to machine health, filtering out irrelevant very low and very high frequencies.
• Dynamic Range: Capable of handling a wide range of vibration amplitudes.
• Diagnostics: Includes module health monitoring and sensor fault detection (e.g., open coil detection for velocity transducers, loss of IEPE bias voltage).
• Configuration: Configured using the 3500 Configuration Software to set parameters like sensor type, scaling, integration settings, and filter bands.

Advantages and Key Features

• Dual-Sensor Flexibility: A key advantage of the BENTLY 133819-02 is its ability to interface with two primary types of vibration sensors (velocity and IEPE accelerometers) on the same module, reducing the variety of spare modules needed.
• High Accuracy and Reliability: Provides precise, conditioned signals essential for reliable machinery protection. Its design ensures stable performance in the electrically noisy environment of an industrial plant.
• Built-In Sensor Power and Diagnostics: For IEPE accelerometers, it supplies the necessary constant current excitation. It also performs continuous diagnostics on the sensor health, providing early warning of sensor or cable failure before a false or missed alarm occurs.
• Seamless Integration within 3500 System: As a native component, it works in concert with other 3500 modules (like relay modules and communication gateways). Its alarms and data are fully integrated into the system’s unified monitoring and diagnostic framework.
• Proven Performance in Critical Applications: Like all 3500 system components, the 133819-02 is engineered and proven for use in the most critical machinery protection applications across power generation, oil & gas, and other heavy industries.

Application Cases in Various Fields

• Gas Turbine Bearing Monitoring: A BENTLY 133819-02 module processes signals from velocity transducers mounted on the turbine’s bearing housings to monitor overall vibration levels, detecting issues like rotor imbalance or bearing wear before they cause severe damage.
• Centrifugal Compressor Protection: Used to monitor vibration on critical pipeline or process compressors. Its ability to accept accelerometer signals is valuable for detecting high-frequency vibration components indicative of blade or gear issues.
• Steam Turbine Generator Sets: Employed to monitor bearing vibration on both the turbine and generator ends. The module’s reliable signal conditioning is crucial for long-term trending and for generating accurate trip signals during overspeed or other transient events.
• Large Induced-Draft Fans in Power Plants: Monitors the vibration of fan bearings. The IEPE accelerometer input capability allows for monitoring very high-frequency signals that can indicate blade passing frequencies or bearing defects.

Comparison with Competing Products

Compared to vibration monitoring modules from other vendors like Emerson (CSI 6500/4200 series) or Metrix, the BENTLY 133819-02 has distinct characteristics:

• System-Centric vs. Standalone: The 133819-02 is exclusively designed for and gains its full value within the Bently Nevada 3500 rack system. Competing products may be standalone monitors or part of different proprietary architectures. Its deep integration with Bently’s protection logic and diagnostics is a key differentiator.
• IEPE Integration: The built-in support for powering and integrating IEPE accelerometers is a standard feature. Some competing modules for velocity-only systems may require separate signal conditioners for accelerometers.
• Focus on Protection (API 670): The 3500 system, including the 133819-02, is often considered the benchmark for machinery protection systems compliant with API Standard 670. Competing systems might have a stronger emphasis on predictive maintenance/data collection rather than hardwired protection.
• Brand Recognition and Support: In industries where Bently Nevada is the entrenched standard, the 133819-02 benefits from unparalleled application expertise and a global service network specifically for critical machinery protection.

Selection Suggestions and Precautions

1. Correct Sensor Specification: Precisely identify the transducer type (velocity or IEPE accelerometer), sensitivity (e.g., mV/in/sec, mV/g), and required cabling. The 133819-02 must be configured in software to match the connected sensor.
2. Proper Sensor Installation and Grounding: Vibration measurement accuracy starts at the sensor. Ensure velocity transducers or accelerometers are mounted securely on a clean, flat surface. Follow Bently Nevada guidelines for sensor grounding/isolation to prevent ground loop noise from affecting the sensitive signal.
3. Cable Integrity is Critical: Use the correct, shielded cable specified for the sensor. For IEPE accelerometers, ensure the cable capacitance is within specification. Damaged or poor-quality cables are a frequent source of noise and signal loss.
4. Configuration in 3500 Software: The module’s performance depends on correct software configuration. This includes setting the sensor type, engineering units, alert/danger setpoints, and filter bands. Incorrect configuration can lead to inaccurate readings or inappropriate alarms.
5. Regular Calibration and Loop Check: While the module itself is stable, the entire measurement loop (sensor, cable, monitor) should be verified periodically. This can be done during shutdowns by injecting a known calibration signal or using a portable calibrator to verify the system’s response.
6. Spare Module Strategy: For critical machinery with continuous monitoring, consider keeping a spare BENTLY 133819-02 module on hand. Configuration can be downloaded from the online module to the spare, allowing for a quick restoration of monitoring in case of a failure. Always source from Bently Nevada or authorized distributors to ensure authenticity and support.
