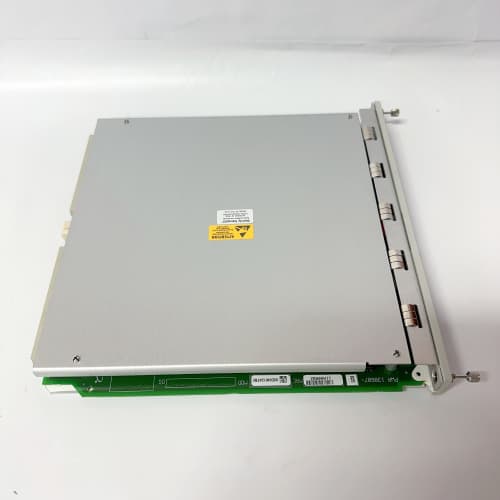

BENTLY 133811-01

Description

Technical Parameters BENTLY 133811-01

Advantages and Features BENTLY 133811-01

1. Dual Sensor Compatibility: BENTLY 133811-01 supports both RTD and TC inputs, eliminating the need for additional adapter modules and reducing hardware costs for projects with mixed sensor types.
2. High – Precision Monitoring: With ±0.1% full – scale accuracy and high input impedance, BENTLY 133811-01 can capture subtle temperature changes, providing a reliable basis for equipment condition diagnosis.
3. Seamless 3500 Series Integration: Native compatibility with 3500 series racks and half – height design simplify on – site installation and commissioning, shortening the project deployment cycle.
4. Harsh Environment Adaptability: The -30°C to +65°C operating temperature range and anti – interference design ensure that BENTLY 133811-01 can work stably in high – vibration and high – electromagnetic interference industrial sites.

Application Cases BENTLY 133811-01

1. Steam Turbine Temperature Monitoring in Power Plant: A 600MW coal – fired power plant used BENTLY 133811-01 to monitor the bearing temperature of steam turbines. Its high accuracy helped detect a hidden bearing overheating fault in advance, avoiding an unplanned shutdown that could have cost more than $500,000.
2. Petrochemical Compressor Condition Monitoring: A petrochemical enterprise deployed BENTLY 133811-01 in its centrifugal compressor temperature monitoring system. The module’s compatibility with both RTD and TC sensors adapted to the mixed sensor layout on site, reducing the system integration cost by 25%.
3. Metallurgical Rolling Mill Temperature Control: A steel mill integrated BENTLY 133811-01 into its rolling mill bearing temperature monitoring system. Its stable operation in a high – dust and high – vibration environment reduced the false alarm rate of the monitoring system by 30%.

Competitor Comparison

Selection Suggestions

1. Choose BENTLY 133811-01 for Bently Nevada 3500 series monitoring systems that need to monitor 6 temperature points and use a mix of RTD and TC sensors.
2. Prioritize BENTLY 133811-01 for projects in harsh industrial environments (-30°C to +65°C) that require high – precision temperature measurement and reliable alarm functions.
3. Select BENTLY 133811-01 when upgrading the temperature monitoring part of the existing 3500 series racks to ensure seamless integration and reduce system transformation costs.

Precautions

1. Use the 3500 Rack Configuration Software to correctly set the sensor type (RTD/TC) and alarm thresholds for each channel of BENTLY 133811-01 to avoid measurement errors and false alarms.
2. Ensure that the wiring of BENTLY 133811-01 is correct and use shielded cables for signal lines to reduce electromagnetic interference and ensure measurement accuracy.
3. Regularly calibrate BENTLY 133811-01 with standard temperature sources to maintain the ±0.1% full – scale measurement accuracy.
4. Install BENTLY 133811-01 in the designated slot of the 3500 series rack and follow the correct power – on sequence to prevent module damage.
5. Do not expose BENTLY 133811-01 to condensation – prone environments, as this may lead to short circuits and other failures of internal components.
