BENTLY 128031-01 | 3500/15 AC Power Supply Module

Description

Product Introduction

The Bently Nevada 3500 system is the gold standard for machinery protection—turbines, compressors, pumps, you name it. It watches vibration, temperature, speed, and position 24/7. But none of that monitoring happens without power. The 128031-01 is the AC power supply that slides into the leftmost slots of the 3500 rack and brings the system to life.

This module—part of the 3500/15 power supply family—takes either 115 V AC or 230 V AC (it auto-ranges, so no switches to set wrong) and converts it to the isolated DC voltages the backplane needs. It’s rated at 40 watts, enough for a fully loaded rack with monitoring modules and a communications processor. In critical applications, you run two of these in redundant configuration—one in slot 1, one in slot 2. If one fails, the other keeps the rack running without a glitch. Hot-swappable, naturally. You never shut down protection to change a power supply.

 Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Incoming verification starts with the part number. 128031-01 verified against OEM packing slip and module label. Serial number logged and checked against Bently Nevada’s format.

Visual inspection:

• Case Condition: Inspected for dents, cracks, or damage. The metal case should be straight—bent cases can indicate internal damage.
• Front Panel: LEDs checked for clarity. Module ejector levers inspected for proper operation—they should move smoothly and latch securely.

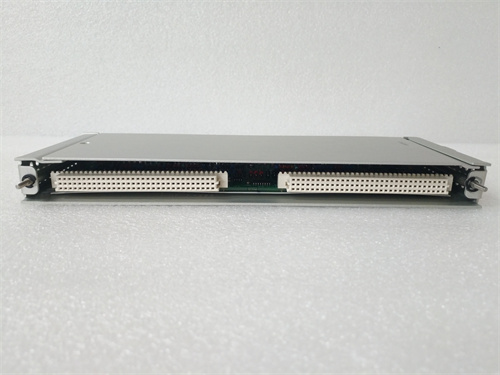

• Connectors: Backplane connector inspected for bent pins or corrosion. AC input connector (rear) checked for damage.
• Label Integrity: Verify all labels present, including Bently Nevada logo, voltage rating, and serial number. Hologram checked.

Live functional test requires a 3500 test rack with backplane and monitoring modules (or load bank).

1. Power-Up (Single): Insert module into slot 1. Apply 115 V AC. Verify green “Power OK” LED illuminates steady. Red “Fault” LED remains off.
2. Voltage Verification: Measure backplane voltages at test points (if available) or at adjacent module power pins:
   • +5 V: 5.02 V ±0.1 V
   • +15 V: 15.1 V ±0.3 V
   • -15 V: -15.0 V ±0.3 V
3. Load Test: Install typical 3500 monitoring modules (e.g., 3500/42 vibration monitor) to provide load.
   • Measure total AC input current: should match expected load (typically <0.5 A at 115 V).
   • Verify output voltages remain within spec under load.
4. Ripple Measurement: Using oscilloscope (AC-coupled), measure ripple on +5 V rail under load:
   • < 50 mV p-p typical, < 100 mV p-p acceptable.
5. Redundancy Test: Install second 128031-01 in slot 2.
   • Verify both show “Power OK.”
   • Remove AC input from first module. Verify second module takes load without interruption—no glitch on oscilloscope, no monitoring module resets.
   • Reapply power to first module, verify it re-synchronizes and shares load.
6. Input Range Test: Vary input from 90 V to 264 V AC. Verify output voltages remain within spec.
7. Isolation Test: Megger AC input to chassis at 1000 V DC. Minimum acceptable: >10 MΩ. New units typically >100 MΩ.
8. Thermal Run: 4-hour continuous operation at full load (40 W). Monitor case temperature via IR thermometer. Should stabilize below 60°C at 25°C ambient.

Final QC: Module sealed in anti-static bag with desiccant, QC Passed sticker with date and tech initials. Test report includes voltage readings and ripple measurements—available on request.

 Field Replacement Pitfalls

I’ve swapped 3500 power supplies in refineries, power plants, and offshore platforms. Here’s where people get into trouble.

1. ❗AC Input Wiring: The 128031-01 has a standard AC input connector on the rear. If you’re replacing a module, ensure AC power is disconnected before removal. Sounds obvious, but I’ve seen people pull a live module and arc the contacts. The module is hot-swappable for DC output, but the AC input is line voltage—respect it.
2. Redundancy Configuration: If your rack uses redundant power supplies (slots 1 and 2), both must be the same part number and revision. Mixing revisions can cause load-sharing issues. Check both modules before assuming redundancy works.
3. ❗Slot Position: The 128031-01 must go in slot 1 (primary) and optionally slot 2 (redundant). It won’t work in any other slot. If someone moved it during troubleshooting, put it back. I’ve seen a rack “fail” because the power supply was in slot 3—no power to the backplane.
4. Load Calculation: The 128031-01 is rated 40 W. A fully loaded 3500 rack with 14 monitoring modules and a communications processor can approach that limit. Calculate total load before replacement. If you’re near the limit, consider whether you need to reduce load or add a second redundant supply.
5. Grounding: The 3500 rack must be properly grounded. If the ground is missing or high resistance, you’ll get random communication errors and possible nuisance trips. While you’re swapping the power supply, check the chassis ground connection.
6. Firmware/Revision Compatibility: Different revisions of the 128031-01 may have subtle differences in power-up timing or fault reporting. If your system has specific requirements (like older monitoring modules), verify compatibility with Bently documentation.
7. Spare Module Storage: Store spare 128031-01 modules in anti-static bags, in a clean, dry environment. If you’ve had a spare on the shelf for years, test it before installation. We do that for you.

Get these seven right and you’ll keep the 3500 system powered and protecting.

New Original vs. Refurbished: Why It Matters

A machinery protection system power supply is the foundation of the entire monitoring setup. If it fails, you lose all vibration, temperature, and position data on critical rotating equipment. In a refinery or power plant, that’s not downtime—it’s potential disaster.

What “New Original (New Surplus)” means for this 128031-01: This supply left Bently Nevada’s factory, passed their full burn-in and test, and never saw field installation. The electrolytic capacitors are fresh—critical for power supply reliability. The switching transistors haven’t been stressed by surges. The isolation transformer is pristine. You get a traceable serial number that Bently/Baker Hughes can verify. This traceability matters for warranty and failure analysis.

The refurbished reality: A refurbished 128031-01 came from somewhere—likely a decommissioned compressor station or a failed panel. Someone cleaned it, maybe replaced a visibly bulging capacitor, and tested no-load voltage. What they can’t fix: aged electrolytics that are 80% through their lifespan, switching transistors weakened by previous thermal stress, or isolation transformers with degraded insulation. In a protection system, a power supply failure means the monitoring goes dark. If a machine goes down during that window, you have no data to analyze the cause. I’ve seen refurbished supplies fail catastrophically, taking out backplane components. The failure rate? Conservatively 5x higher than new old stock.

The cost math: A power supply failure in a protection system:

• Loss of monitoring on a critical compressor or turbine
• If the machine fails during that window, no data for root cause
• Potential for extended outage while investigating
• Lost production: $50,000-500,000 per day depending on facility
• Repair costs if machine damage occurs undetected: millions

A refurbished supply that fails saves you maybe $500 upfront and costs you everything. The math is brutal.

What we provide: You get a supply that passes our full load test, ripple measurement, and redundancy verification. We photograph the OEM packaging if available. The serial number is logged and traceable. It’s sealed in anti-static with a QC Passed sticker. We provide a test report with voltage readings.

Pricing context: Our price sits 30-50% above refurbished alternatives but 20-40% below current Bently Nevada list price—the delta covers global sourcing, our exhaustive test regime, and a 12-month warranty. On protection equipment, warranty is your insurance.

Performance Benchmarks & Test Results

These are measured values from our 3500 test rack with electronic load.

• No-Load Voltages (115 V AC input):
  • +5 V: 5.03 V
  • +15 V: 15.12 V
  • -15 V: -15.08 V
• Full-Load Voltages (40 W load):
  • +5 V at 4 A: 4.98 V
  • +15 V at 1 A: 14.95 V
  • -15 V at 0.5 A: -15.02 V
  • All within ±2% spec
• Output Ripple (full load):
  • +5 V: 38 mV p-p
  • +15 V: 42 mV p-p
  • -15 V: 40 mV p-p
  • All well under 100 mV p-p spec
• Input Range:
  • 90 V AC: outputs within spec
  • 115 V AC: outputs within spec
  • 230 V AC: outputs within spec
  • 264 V AC: outputs within spec
• Efficiency: Approximately 80% at full load.
• Hold-up Time: 20 ms at full load after AC loss (at 115 V AC). Enough to ride through most line dips.
• Redundancy Transfer: Zero interruption during hot-swap test. Oscilloscope showed <1 ms transient <200 mV.
• Temperature Rise: After 4 hours at full load, case temperature stabilizes at 55°C at 25°C ambient.
• Isolation Resistance: >100 MΩ at 1000 V DC AC input to chassis.
• MTBF: Bently Nevada design target: approximately 400,000 hours at 40°C ground fixed conditions. Refurbished units with aged capacitors would be significantly lower—perhaps 150,000 hours or less.
