BENTLY 127610-01

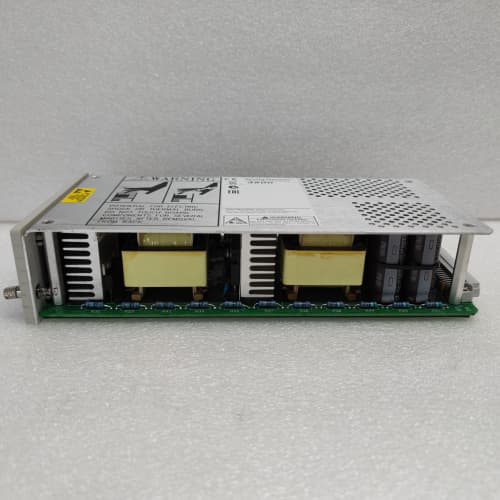

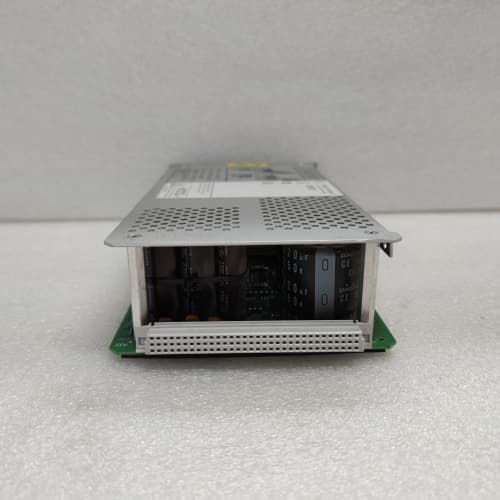

.BENTLY 127610-01 (3500/15) is a dedicated AC power supply module engineered for Bently Nevada 3500 machinery protection and condition monitoring systems, providing stable 24VDC power to 3500 rack – mounted modules like monitors, communication interfaces, and I/O cards in power generation, oil & gas, and heavy manufacturing sectors.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

BENTLY 127610-01 (3500/15) is a dedicated AC power supply module engineered for Bently Nevada 3500 machinery protection and condition monitoring systems, providing stable 24VDC power to 3500 rack – mounted modules like monitors, communication interfaces, and I/O cards in power generation, oil & gas, and heavy manufacturing sectors. As the core power component of the 3500 series, BENTLY 127610-01 features dual – redundant AC input paths (175-264VAC, 47-63Hz) and a 5.5A maximum 24VDC output to ensure uninterrupted power supply during single – input failures. BENTLY 127610-01 installs in dedicated left – side slots of 3500 racks, with a “Supply OK” LED indicator for real – time power status monitoring. Its half – height form factor saves rack space, and it integrates seamlessly with the 3500 backplane to distribute power efficiently across the entire system. BENTLY 127610-01 also offers overload and short – circuit protection to safeguard connected modules from electrical damage, and its robust design withstands harsh industrial conditions with an operating temperature range of – 30°C to +65°C. Whether used in a thermal power plant’s turbine monitoring rack or a refinery’s compressor protection system, BENTLY 127610-01 delivers reliable power, making BENTLY 127610-01 an indispensable part of Bently’s 3500 system solutions.

Technical Parameters BENTLY 127610-01

Parameter Item Parameter Value
Product Model BENTLY 127610-01 (3500/15)
Product Type AC Power Supply Module for Bently 3500 Series Racks
Input Voltage 175-264VAC (dual – redundant), 47-63Hz
Output Voltage 24VDC (regulated)
Output Current Maximum 5.5A
Power Protection Overload, short – circuit protection
Indicator “Supply OK” LED
Operating Temperature – 30°C to +65°C
Storage Temperature – 40°C to +85°C
Humidity Resistance 95% non – condensing
Dimensions (W×H×D) 51mm × 254mm × 127mm (2.0in × 10.0in × 5.0in)
Weight ~0.3kg (10.1 oz)
Mounting Dedicated left – side slots in Bently 3500 rack (half – height)
Compatibility Bently 3500 series monitors, communication modules, I/O cards

Advantages and Features BENTLY 127610-01

  1. Redundant Power Input: BENTLY 127610-01’s dual – AC input design eliminates single – point power failures, critical for 3500 system uptime in safety – critical applications.
  2. High – Capacity Output: BENTLY 127610-01’s 5.5A 24VDC output powers multiple 3500 modules, reducing the need for extra power supplies and saving rack space.
  3. Real – time Status Monitoring: The “Supply OK” LED of BENTLY 127610-01 enables instant power health checks, simplifying troubleshooting and maintenance.
  4. Native 3500 Integration: BENTLY 127610-01 works seamlessly with 3500 racks and backplanes, ensuring plug – and – play installation and stable power distribution.
  5. Harsh – Environment Durability: BENTLY 127610-01 operates reliably in extreme temperatures and high humidity, fitting heavy – industry settings like power plants and refineries.

Application Cases

  1. Thermal Power Plant Turbine Monitoring System: A 600MW power plant used BENTLY 127610-01 to power 8 3500/40 vibration monitors in its turbine protection rack. The module’s redundant inputs prevented a power outage during a grid fluctuation, avoiding a turbine shutdown costing $800,000.
  2. Petrochemical Refinery Compressor Protection: A refinery deployed two BENTLY 127610-01 modules in redundant configuration to power its 3500 system for compressor vibration and temperature monitoring. The setup maintained power during a utility line fault, keeping the compressor running and cutting unplanned downtime by 90%.
  3. Steel Mill Rolling Mill Condition Monitoring: A steel plant retrofitted its rolling mill 3500 rack with BENTLY 127610-01. The module’s robust design withstood high ambient temperatures (up to 60°C), ensuring stable power to monitoring modules and improving rolling mill uptime by 15%.

Competitor Comparison

Comparison Item BENTLY 127610-01 Emerson CSI 6500 Power Supply SKF CMSS Power Module
Input Redundancy Dual 175-264VAC inputs Single 200-240VAC input Dual 180-260VAC inputs
Output Current 5.5A (24VDC) 4A (24VDC) 5A (24VDC)
Form Factor Half – height (3500 rack) Full – height Half – height
Status Indicator “Supply OK” LED Basic power LED LED + alarm relay
Native System Compatibility Bently 3500 Emerson CSI 6500 SKF CMSS
Price (USD) ~$1,800 ~$1,600 ~$1,700

Selection Suggestions

  1. Choose BENTLY 127610-01 for Bently 3500 rack upgrades to ensure native compatibility and reliable power for 3500 modules.
  2. Deploy BENTLY 127610-01 in safety – critical systems needing redundant power, such as turbine or compressor protection loops.
  3. Select BENTLY 127610-01 for applications with high ambient temperatures (- 30°C to +65°C) to guarantee stable power delivery.

Precautions

  1. Install BENTLY 127610-01 only in dedicated left – side slots of Bently 3500 racks to avoid backplane damage and power distribution issues.
  2. Keep the input voltage of BENTLY 127610-01 within 175-264VAC to prevent module burnout and unstable output.
  3. Use shielded power cables for BENTLY 127610-01 wiring to reduce electromagnetic interference in industrial environments.
  4. Regularly check the “Supply OK” LED of BENTLY 127610-01 during maintenance to confirm normal power operation.
