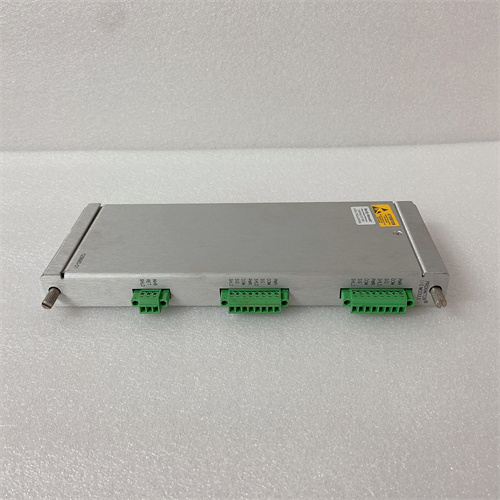

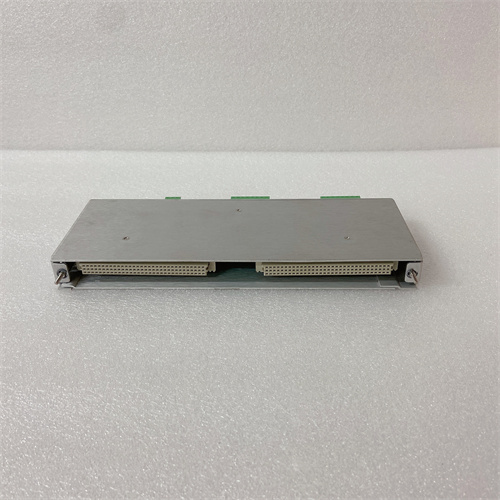

BENTLY 125680-01

Description

The BENTLY 125680-01 is a specialized I/O module designed for Bently Nevada’s 3500 Series machinery protection and condition monitoring systems. This module serves as a critical interface between vibration, position, and temperature transducers and the 3500 rack monitoring platform, providing real-time machinery health data for rotating equipment protection. The BENTLY 125680-01 remains an essential component for critical turbomachinery protection applications in power generation, oil and gas, and industrial processing facilities.

Product Overview and Description

The BENTLY 125680-01 functions as a versatile monitor interface module within the 3500 Series architecture, accommodating multiple transducer input types including proximity probes, seismic sensors, and temperature detectors. This module processes raw transducer signals through precision signal conditioning circuitry, converting them into engineering units for display, alarm evaluation, and relay output actuation. The BENTLY 125680-01 incorporates comprehensive self-diagnostics and continuous verification of transducer integrity, ensuring highest availability for critical machinery protection applications. Designed for continuous operation in demanding industrial environments, the module features rugged construction, extended temperature component selection, and front-panel status indicators for immediate operational visibility. Redundant power supply inputs support fault-tolerant configurations essential for unstaffed remote installations.

Key Parameters and Specifications

• Monitor Type: Configurable I/O module for vibration, position, temperature, and speed measurements.
• Input Channels: Typically 2 or 4 channels per module, configurable per application requirements.
• Transducer Compatibility: Eddy current proximity probes, accelerometers, velocity sensors, RTD/thermocouple inputs.
• Frequency Response: DC to 10 kHz typical, dependent on transducer type and configuration.
• Dynamic Range: 16-bit resolution, >80 dB signal-to-noise ratio.
• Accuracy: ±0.5% of full scale typical, ±1.0% over extended temperature range.
• Alarm Setpoints: 4 independent alarm levels per channel, adjustable with 0.1% resolution.
• Filtering: Programmable low-pass, high-pass, and band-pass filters.
• Output Signals: Buffered transducer outputs, proportional current/voltage outputs, relay alarm outputs.
• Communication: Proprietary 3500 rack backplane protocol, Modbus RTU via communications gateway.
• Certifications: CE, UL, CSA, ATEX, IECEx, SIL 2 capable per IEC 61508.
• Power Consumption: 12 W typical, 18 W maximum from 3500 chassis power supply.

Advantages and Functional Benefits

The BENTLY 125680-01 delivers critical advantages for machinery protection applications:

1. Multi-Parameter Capability: Single module supports vibration, position, temperature, and speed measurements, reducing spare parts inventory and simplifying system architecture.
2. Transducer Integrity Verification: Continuous monitoring of probe gap, cable continuity, and driver health prevents undetected sensor failures that could compromise machinery protection.
3. Hot-Swappable Design: Module replacement without rack power-down or process interruption, essential for continuously operating critical assets.
4. Alarm Voting Logic: Programmable voting logic reduces nuisance trips while maintaining protection integrity, increasing operational availability.
5. SIL 2 Capability: Certified for safety-instrumented functions up to SIL 2, enabling integration with emergency shutdown systems.

Application Fields and Use Cases

The BENTLY 125680-01 is extensively deployed for protection and condition monitoring of critical rotating machinery:

• Steam Turbines: Shaft vibration and eccentricity monitoring, casing expansion, differential expansion measurement.
• Gas Turbines: Bearing vibration monitoring, exhaust temperature thermocouple scanning, overspeed protection.
• Compressors: Surge detection and prevention, seal leakage monitoring, thrust position measurement.
• Generators: Air gap monitoring, bearing vibration, hydrogen seal oil leak detection.
• Hydroelectric: Turbine guide bearing monitoring, runner vibration, shaft runout measurement.

Competitor Comparison

When evaluated against alternative machinery monitoring solutions, the BENTLY 125680-01 demonstrates distinctive market leadership. GE/Bently Nevada’s own 3300 Series represents previous generation technology with significantly lower channel density and no SIL certification capability. Emerson CSI 6500 provides comparable functionality but requires AMS machinery health management software ecosystem, imposing substantial licensing costs. Rockwell Automation’s Entek XM Series offers lower entry cost but limited transducer compatibility and reduced frequency response unsuitable for high-speed turbomachinery. The BENTLY 125680-01 maintains unique advantage through Bently Nevada’s extensive installed base exceeding 100,000 racks globally and comprehensive application engineering expertise. While newer 3500 Series modules continue product development, the BENTLY 125680-01 remains essential for specific transducer interface requirements and serves as the preferred spare for thousands of installed systems.

Selection Recommendations and Precautions

• Module Configuration: The BENTLY 125680-01 requires factory or authorized distributor configuration for specific transducer types and measurement parameters. Field configuration limited to alarm setpoints and relay assignments. Specify exact transducer model numbers when ordering.
• Firmware Compatibility: Confirm BENTLY 125680-01 firmware revision matches 3500 rack firmware and communications gateway requirements. Mismatched revisions may cause communication failures or incorrect measurement interpretation.
• Transducer Selection: Use only Bently Nevada approved transducers with the BENTLY 125680-01; non-certified transducers may exhibit incompatible frequency response, incorrect scaling, or failure of self-diagnostic features.
• Extension Cable Limitations: Maximum total cable length between transducer and BENTLY 125680-01 is 305 meters (1000 feet) for proximity probes; longer runs require signal amplification and degrade frequency response.
• Environmental Limits: Standard variant rated 0-55°C operating; hazardous area variants available with ATEX/IECEx certification for Zone 2 installations. Verify temperature classification before installation in classified areas.
• Spare Parts Strategy: The BENTLY 125680-01 remains in active production; maintain minimum 20% spares inventory for critical turbomachinery applications. Current manufacturing lead times extend to 16-20 weeks; emergency exchange service available for qualifying facilities.
• Calibration Interval: Factory calibration stability typically 0.25% annually; however, formal recalibration every 24 months is recommended for ISO 17025 accredited laboratories and safety-instrumented function applications. Bently Nevada maintains global service centers for certified calibration.
• Documentation Requirements: Maintain complete configuration records including transducer types, calibration dates, alarm setpoints, and voting logic configuration. The BENTLY 125680-01 does not retain configuration if removed from rack without battery-backed RAM module installed.
• System Integration: For Modbus communication, verify gateway compatibility and register mapping documentation. The BENTLY 125680-01 measurement data requires proper scaling in receiving DCS/PLC systems; incorrect scaling factors represent a common integration error.
