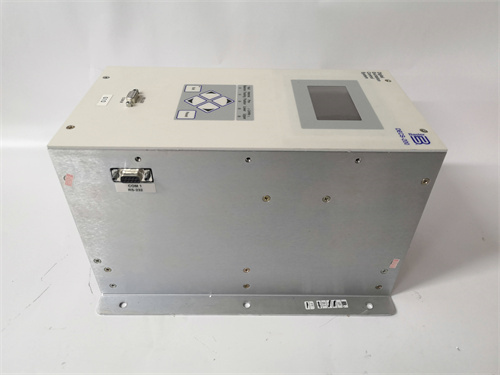

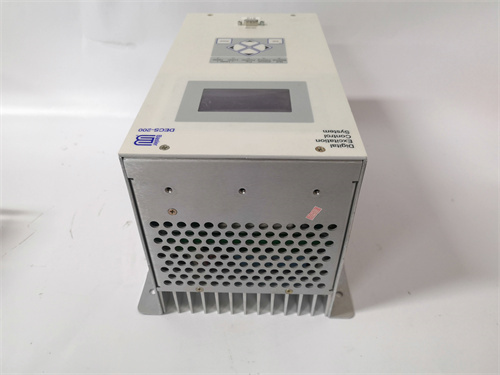

BASLER DECS-200-2L

Description

Product Overview and Introduction

The BASLER DECS-200-2L is a fully digital excitation control system designed for synchronous generators. As a core component from Basler Electric’s DECS product line, this regulator is engineered to provide precise, reliable control of a generator’s terminal voltage and reactive power (VARs) by managing the field current supplied to the generator’s exciter. The BASLER DECS-200-2L is specifically built for demanding applications, combining advanced control algorithms with a rugged industrial design to ensure stable generator performance in utility, industrial, and marine power generation settings.

Detailed Product Parameters and Specifications

The DECS-200-2L’s performance is defined by its electrical ratings and functional capabilities:

• Primary Function: Digital Excitation System for synchronous generators. It regulates generator terminal voltage and can operate in various modes: Automatic Voltage Regulator (AVR), VAR/Power Factor (PF) control, and manual field current control.
• Input Power: Accepts power from a permanent magnet generator (PMG), generator terminals, or an auxiliary source to power its internal electronics and the field supply.
• Field Output: Provides a controlled DC output to the generator’s field winding. Specifications include maximum field voltage (e.g., 125 VDC) and field current (e.g., 5.0 A continuous, 7.5 A short-term) to match the generator’s requirements.
• Measurement Inputs: Monitors generator three-phase voltages and currents, field voltage, and field current for precise closed-loop control.
• Protective Functions: Includes built-in protective features such as over-excitation (field current) limiter, under-excitation limiter, V/Hz (volts per hertz) limiter, and loss of sensing protection.
• Communication Interfaces: Equipped with serial communication ports (RS-232, RS-485) supporting Modbus RTU protocol for integration with SCADA, DCS, or external HMIs for remote monitoring and control.
• Human-Machine Interface (HMI): Features a backlit LCD display and keypad for local control, parameter adjustment, and real-time data viewing.
• Environmental: Designed for industrial environments with a wide operating temperature range and high immunity to electrical noise and vibration.

Key Advantages and Distinctive Features

The BASLER DECS-200-2L offers significant benefits for generator control and stability:

• Precision and Stability: Advanced digital control algorithms provide superior voltage regulation accuracy and dynamic response to load changes, ensuring stable grid parallel operation and high power quality.
• Robust and Reliable Design: Built with industrial-grade components and featuring a proven design, it delivers high mean time between failures (MTBF), which is critical for continuous generation assets.
• Flexible Control Modes: Seamlessly transitions between AVR, VAR/PF, and manual control modes, allowing optimal generator operation under varying system conditions (islanded vs. grid-connected).
• Integrated Protection: The built-in limiters (over-excitation, under-excitation, V/Hz) actively protect the generator and prime mover from damage due to abnormal electrical conditions, enhancing overall system protection.
• User-Friendly Interface and Configuration: The intuitive local HMI and PC-based DECS Setup software simplify commissioning, tuning, and troubleshooting. The BASLER DECS-200-2L is known for its straightforward setup and reliable operation.
• Strong Technical Support: Backed by Basler Electric’s global network of technical support and application engineers, providing expertise for complex integration and lifecycle support.

Application Scenarios and Case Studies

This excitation controller is widely used across various power generation segments:

• Industrial Co-Generation: Controlling generators in paper mills, chemical plants, or refineries that produce both process steam and electricity.
• Diesel/Gas Engine Gen-Sets: Providing excitation for medium to large standby or prime power diesel generators in data centers, hospitals, and water treatment plants.
• Hydroelectric Generators: Regulating voltage for small to medium-sized hydro units.
• Marine Power Systems: Used aboard ships for controlling auxiliary generators that supply shipboard power.
• Municipal Power & District Energy: Managing generators in waste-to-energy plants or district heating/cooling facilities.

A common application case involves upgrading an older analog exciter on a 2 MW diesel generator set. Replacing it with the BASLER DECS-200-2L provided much tighter voltage regulation, enabled seamless load sharing with other generators via its isochronous load-sharing capability, and allowed the plant operators to monitor and adjust parameters remotely via Modbus, improving operational efficiency and reliability.

Comparison with Competing Products

Compared to other digital excitation systems from competitors like ABB (UNITROL), Siemens (SIPROS), or GE (EX2100), the BASLER DECS-200-2L holds a strong position in its market segment:

• Value and Simplicity: Often recognized for offering an excellent balance of advanced features, robustness, and cost-effectiveness. It provides sophisticated digital control without excessive complexity.
• Ease of Use: Its reputation for user-friendly configuration and clear documentation is a significant advantage for technicians and engineers, reducing commissioning and maintenance time.
• Strong Aftermarket & Retrofit Focus: Basler has a formidable presence in the retrofit and aftermarket for excitation systems. The DECS-200-2L is a preferred choice for modernizing existing generators due to its adaptability and comprehensive support.

Competitors may offer advantages in areas like native integration with specific turbine control systems, higher power output for very large generators, or more advanced cybersecurity features. The choice often depends on the generator OEM, the desired feature set, and the total cost of ownership.

Selection Guidelines and Important Considerations

Proper selection and installation are crucial for optimal performance:

1. Generator Compatibility: The BASLER DECS-200-2L must be matched to the generator’s electrical characteristics. Critical parameters include the generator’s rated field voltage and current at rated load, and the available power source for the exciter (PMG voltage, generator terminal voltage).
2. Power Source Selection: Decide on the preferred input power source (PMG, generator terminals, or auxiliary). A PMG source is highly recommended for applications requiring sustained fault current contribution, as it provides a power source independent of generator terminal voltage.
3. Control Mode Requirements: Determine the necessary control modes (AVR, PF, VAR) based on the application. For parallel operation with a utility grid, VAR/PF control is essential.
4. Protection Coordination: Configure the built-in limiters (Over-excitation, V/Hz) in coordination with the generator’s protective relay settings to ensure seamless protection.
5. Commissioning and Tuning: Proper commissioning using the DECS Setup software is mandatory. This includes setting voltage levels, stability gains, and limiter thresholds. Incorrect tuning can lead to poor voltage response or instability.
6. Installation and Wiring: Follow all national and local electrical codes. Ensure all current transformer (CT) and potential transformer (PT) connections are correct and secure. Pay special attention to grounding. Always use the official installation and instruction manual for the BASLER DECS-200-2L, accessible via the product link, as the primary guide. For grid-parallel applications, ensure synchronizing equipment is properly integrated.
