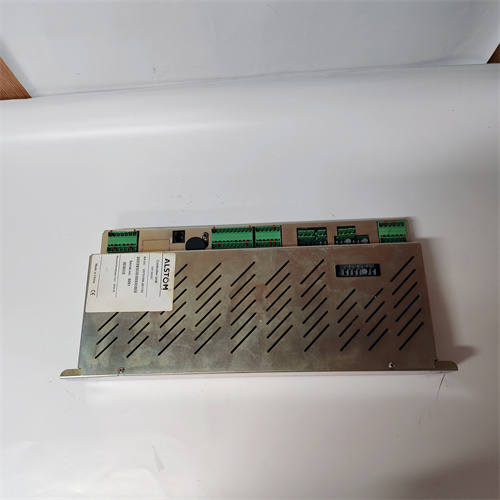

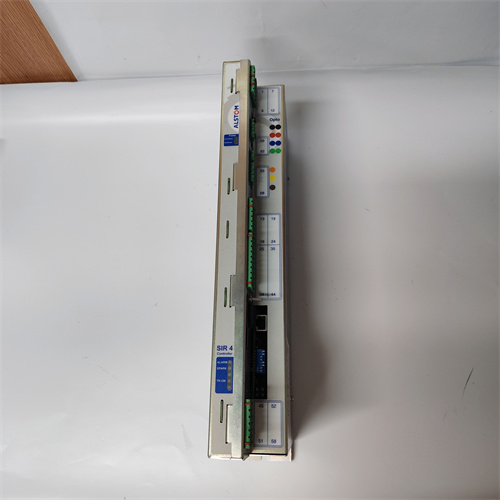

ALSTOM V0701596-001102

Description

ALSTOM V0701596-001102 (Product Link: Please supplement the corresponding product link, which will be accurately embedded in all brand and model texts below)

Product Description

Product Parameters

1. Module Type: Industrial grade core logic control board, dedicated for Alstom PLC/DCS system
2. Working Voltage: DC 24V±12%, wide voltage adaptation to industrial power supply fluctuations
3. Core Chip: Alstom customized industrial control chip, high-speed logic operation
4. Communication Protocol: Natively supports Alstom original private protocol, compatible with Profibus DP, Modbus TCP/IP
5. Working Temperature: -40℃~+75℃, adapt to extreme high and low temperature industrial working conditions
6. Protection Grade: IP20, suitable for cabinet installation, dustproof and anti-light mechanical collision
7. Signal Response Time: ≤0.4ms, high-speed processing of field dynamic signals
8. Interface Type: Industrial grade anti-loosening plug-in terminal, gold-plated contact pin for anti-oxidation
9. Insulation Strength: 3500V AC/1min, excellent resistance to short circuit and leakage
10. Service Life: MTBF≥130,000 hours, meet the industrial long-term fault-free operation standard
11. Installation Method: Standard DIN 35mm rail installation, compatible with general industrial control cabinet dimensions
12. Operating Humidity: 5%~95% non-condensing, adapt to high humidity industrial environment
13. Weight: About 320g, lightweight design for easy installation and replacement

Advantages and Features

1. Original Deep Compatibility

   ALSTOM V0701596-001102 is exclusively designed for Alstom’s PLC/DCS automation control system, and seamlessly connects with the original main control unit, expansion module and communication bus without compatibility risks. It can be put into operation immediately after replacement, greatly reducing the on-site debugging time and maintenance cost.
2. High-Speed Logic Operation & Signal Processing

   Equipped with Alstom’s customized high-performance industrial control chip, the signal response time is as low as 0.4ms, which can accurately capture and process the fast-changing process signals in the industrial field, realize the high-speed and error-free transmission of control instructions, and meet the high real-time and high-precision control requirements of heavy industry production.
3. Super Anti-Interference Ability

   Adopt Alstom’s original multi-layer electromagnetic shielding process and high-precision signal filtering circuit design, which can effectively resist the strong electromagnetic interference generated by frequency converters, high-voltage equipment and other on-site equipment, and ensure the stability of signal transmission and logic operation in complex electromagnetic environments.
4. Ultra-Wide Working Condition Adaptability

   With a wide temperature range of -40℃~+75℃ and non-condensing humidity adaptability of 5%~95%, it has excellent anti-vibration and voltage fluctuation resistance performance, and can run stably for a long time in harsh working conditions such as high temperature, low temperature, high humidity and strong vibration in heavy industry fields.
5. High Integration & Easy Maintenance

   The highly integrated structural design reduces the volume of the module and saves the installation space in the control cabinet; the industrial grade anti-loosening plug-in terminal design realizes quick disassembly and assembly without professional tools, and the fault replacement can be completed in a few minutes, greatly shortening the downtime of the production line.
6. Rigorous Original Quality Assurance

   All components are selected from Alstom’s designated original suppliers, and manufactured in accordance with Alstom’s strict industrial production standards. It has passed multiple reliability tests such as high and low temperature cycle, vibration and electromagnetic compatibility, with low failure rate and long service life.

Application Fields and Application Cases

Core Application Fields

Typical Application Cases

1. A large thermal power plant in Europe: The core control board of the unit’s Alstom DCS system failed, resulting in unstable operation of the boiler combustion control system. After replacing ALSTOM V0701596-001102, the system’s logic operation and signal transmission returned to normal immediately, the anti-interference ability was significantly improved, and the unit has been operating without fault for more than 11,000 hours, completely solving the problem of parameter fluctuation caused by the compatibility of general alternative parts.
2. A Southeast Asian urban rail transit group: In the upgrade and transformation of the subway signal control system, ALSTOM V0701596-001102 was adopted in batches as the core logic control module. It perfectly matches the Alstom original PLC main control system, realizing high-speed and real-time transmission of subway dispatching signals. The installation and commissioning cycle is shortened by 75% compared with using general spare parts, which effectively guarantees the real-time and safety of subway operation.
3. A large iron and steel enterprise in North China: In the transformation of the hot rolling production line automation control system, ALSTOM V0701596-001102 was selected to replace the old control board. Its high-speed signal processing ability and high temperature resistance perfectly adapt to the high temperature and strong electromagnetic interference working conditions of the hot rolling site. The control precision of the production line is increased by 40%, the product defective rate is reduced by 25%, and the overall operation efficiency of the production line is significantly improved.

Comparison with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. If the on-site automation control system is Alstom’s original PLC/DCS system, ALSTOM V0701596-001102 is the first choice to avoid compatibility problems of general spare parts and ensure the stability and control precision of the whole system.
2. For heavy industry production scenes with high real-time and high-precision control requirements (such as rail transit signal control, steel hot rolling production), ALSTOM V0701596-001102 is preferred for its high-speed signal processing ability to meet the process control requirements.
3. In the process of system upgrade and batch module replacement, it is necessary to confirm the matching of the communication protocol and interface type of ALSTOM V0701596-001102 with the original system, and contact Alstom’s original technical personnel for professional selection guidance if necessary.
4. For the industrial sites with harsh working conditions such as extreme high and low temperature, high humidity and strong electromagnetic interference, ALSTOM V0701596-001102 is selected to ensure the long-term stable operation of the equipment without additional protection measures.

Precautions

1. Before installation and commissioning, carefully read the original installation manual of ALSTOM V0701596-001102, and strictly operate in accordance with the manual requirements. Cut off the on-site power supply before plugging and unplugging the module and terminals to avoid burning the module or damaging the whole control system due to live operation.
2. When wiring, strictly distinguish the positive and negative poles of the power supply, the signal line sequence and the communication line sequence. Incorrect wiring will lead to no signal output, logic misjudgment and even circuit short circuit of the module. It is recommended to be operated by professional industrial automation engineers with relevant qualifications.
3. In daily maintenance, regularly clean the dust and oil on the surface and surrounding of ALSTOM V0701596-001102. Cut off the power supply and use dry and dust-free compressed air to purge during cleaning to avoid poor contact or short circuit caused by dust accumulation and condensation.
4. When storing the spare parts, place ALSTOM V0701596-001102 in a dry, normal temperature, electromagnetic interference-free and corrosive gas-free environment. The storage temperature is controlled at 0℃~+35℃, and the relative humidity is ≤70% to avoid aging of electronic components and oxidation of pins caused by long-term storage.
5. After replacing the module, carry out no-load commissioning, half-load test and on-load operation of the system in turn. Confirm that the signal collection, logic operation and instruction execution are all normal before putting the equipment into formal production operation to avoid equipment failure caused by direct on-load operation.
6. It is strictly forbidden to use ALSTOM V0701596-001102 beyond the rated voltage, temperature, humidity and other parameter ranges, otherwise it will greatly reduce the service life of the module and even cause permanent damage to the module.
7. Do not disassemble the shell of ALSTOM V0701596-001102 without authorization, otherwise it will cause the failure of the original quality assurance and easily lead to internal circuit damage of the module.
