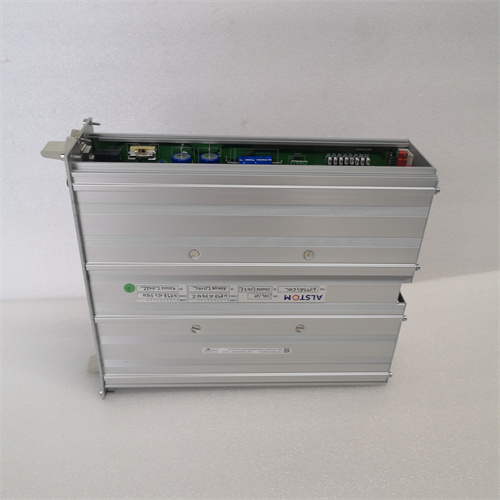

ALSTOM N897164610L

Product Overview and Description

The ALSTOM N897164610L is a sophisticated I/O (Input/Output) module designed for Alstom’s MICROSCADA (SYS600) and associated protection and control systems, commonly deployed in electrical transmission and distribution substations. This module functions as a vital interface point, acquiring status signals from the field (like breaker positions, isolator status) and outputting control commands to operate devices such as circuit breakers or motorized switches. The ALSTOM N897164610L is engineered for the demanding environment of high-voltage electrical control, prioritizing reliability, precision, and compatibility with rigorous utility communication protocols. It serves as a critical data acquisition and control node within the larger SCADA (Supervisory Control and Data Acquisition) architecture.

Product Parameters

• Module Type: Digital Input/Output (I/O) Module for Substation Automation.
• Compatibility: Alstom (now part of GE Grid Solutions) MICROSCADA SYS600 / DICOMM Platform.
• I/O Type: Typically a mixed or configurable module providing both digital inputs (for status monitoring) and digital outputs (for command/control). Exact count (e.g., 16 DI, 8 DO) is model-specific.
• Input Specifications:
  • Voltage Levels: Typically designed for DC voltages common in substations (e.g., 24V DC, 48V DC, 110V DC, 220V DC).
  • Isolation: High-voltage isolation between field circuits and the system’s internal electronics.
  • Debouncing: Integrated filtering for contact status (e.g., breaker auxiliary contacts).
• Output Specifications:
  • Type: Often relay outputs (for dry contact control) or high-drive solid-state outputs.
  • Contact Rating: Rated for interrupting inductive loads like trip/close coils (e.g., 5A at 250V DC).
• Communication Interface: Connects to the system’s proprietary or standard (e.g., IEC 61850, serial) backplane/bus within a bay controller or I/O chassis.
• Diagnostics: Module health monitoring, channel-specific fault reporting, and watchdog timers.
• Environmental Rating: Designed for severe substation environments (wide temperature range, high EMI immunity).

Advantages and Key Features

1. High Reliability & Availability: The ALSTOM N897164610L is built to utility-grade standards, ensuring continuous, fault-resistant operation critical for grid stability and safety, often featuring redundant power paths and self-diagnostics.
2. Strong Noise Immunity: It incorporates extensive filtering, isolation, and shielding to reject electromagnetic interference (EMI) and transient voltages prevalent in switchyards during switching operations or faults.
3. Seamless System Integration: The module is natively designed for the MICROSCADA ecosystem, ensuring guaranteed interoperability, simplified configuration within Alstom engineering tools, and consistent data mapping to the SCADA system.
4. Robust Output Capability: Its output relays or drivers are specifically rated for the demanding inrush and inductive kickback of substation control circuits, such as breaker trip coils, ensuring reliable operation over thousands of cycles.
5. Comprehensive Diagnostics: The ALSTOM N897164610L provides detailed status information, allowing for predictive maintenance and rapid fault isolation, which is essential for minimizing substation downtime.

Application Cases in Various Fields

• Transmission Substations: Acquiring status (52a/52b) from high-voltage circuit breakers and outputting trip/close commands as part of a line protection and control scheme.
• Distribution Automation: Monitoring the position of reclosers and sectionalizers, and controlling them for fault isolation and service restoration (FLISR) schemes.
• Renewable Integration (Substation Level): Interfacing with switchgear in a solar PV plant or wind farm substation to control the connection to the main grid.
• Industrial Power Plants: Providing hardwired I/O interface for the electrical balance-of-plant within a captive power generation facility, where the ALSTOM N897164610L ensures reliable control of medium-voltage switchgear.

Comparison with Competing Products

The ALSTOM N897164610L competes within the specialized utility automation market. Direct competitors are I/O modules from other major grid automation vendors like Siemens (SIPROTEC, SICAM), Hitachi Energy (formerly ABB’s MicroSCADA competitor products), and SEL (SEL-2411, SEL-2730). Compared to generic industrial PLC I/O cards, the ALSTOM N897164610L offers significantly higher voltage isolation, superior EMI immunity, and certifications for utility applications. Its primary advantage is its certified, plug-and-play compatibility and long-term support within the Alstom/GE SYS600 installed base. For a utility standardized on this platform, it is the specified and logistically supported choice, whereas integrating a third-party I/O module could introduce compatibility risks and void support agreements.

Selection Suggestions and Precautions

• Selection Advice:
  • System Architecture Verification: Confirm this module is compatible with the specific chassis, backplane, and firmware version of your existing MICROSCADA SYS600 or DICOMM bay controller.
  • Signal Matching: Precisely match the module’s input voltage range (e.g., 110V DC) and output contact type/rating with your substation’s DC control supply and the coil ratings of the devices being controlled.
  • Spare for Legacy Systems: Often selected as a direct replacement for failed units in existing, operational substations to maintain consistency and avoid system re-engineering.
• Important Precautions:
  • High-Voltage Environment: All work must be performed by qualified electrical utility personnel adhering to strict safety protocols (clearances, PPE, switching orders). Assume all external wiring is or can become energized at lethal voltages.
  • Control Circuit Safety: Implement proper isolation (disconnect links) on both the positive and negative legs of control circuits before working on the ALSTOM N897164610L or its wiring.
  • Anti-Static Handling: Treat the module as an ESD-sensitive device during handling and installation.
  • Configuration & Settings: Ensure the module’s hardware configuration (DIP switches, if any) and software addressing in the engineering tool match the original design. Incorrect settings can lead to misoperation.
  • Supply Chain Vigilance: Due to the critical nature of substation components, source the ALSTOM N897164610L only from authorized GE Grid Solutions/Alstom distributors or certified refurbishers to guarantee authenticity and performance.
