ALSTOM MVTU11K1CD0751G

Product Overview and Introduction

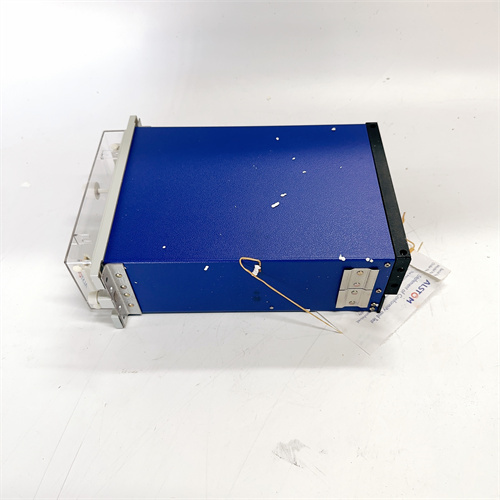

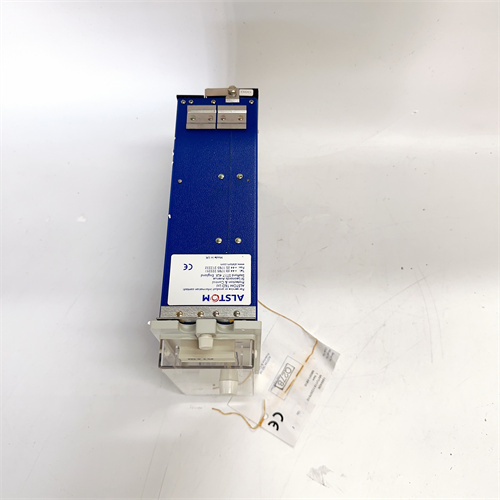

The ALSTOM MVTU11K1CD0751G is a specialized and high-precision measurement and processing module from the legacy Alstom (now part of GE Grid Solutions and Hitachi Energy through various acquisitions) P140 series of protection and control systems. This module is designed for critical power system applications, functioning as a voltage transformer interface or measurement unit. It plays an essential role in energy management and network protection by accurately scaling and isolating high-voltage signals from instrument transformers (VTs/PTs) for use by downstream protection relays, meters, and control systems. For detailed documentation and sourcing, please visit the ALSTOM MVTU11K1CD0751G product link.

Detailed Product Parameters and Specifications

The MVTU11K1CD0751G is defined by technical parameters critical for power system accuracy and safety:

• Primary Function: Voltage Transformer (VT) or Potential Transformer (PT) interface module for measurement and protection circuits.
• Input Voltage Range: Designed to accept a standardized secondary voltage input from a VT/PT, typically 110V or 120V AC line-to-line, or 63.5V/69V line-to-neutral, at system frequency (50/60 Hz).
• Output Signal: Provides scaled-down, isolated, and conditioned voltage signals suitable for the input of digital protective relays or measurement devices.
• Accuracy Class: High accuracy class (e.g., 0.2 or 0.5) for measurement, or protection class (e.g., 3P or 5P) for relaying, ensuring precise representation of the primary system voltage.
• Burden Capacity: Specifies the maximum load (in VA) the module can drive on its secondary side without affecting accuracy.
• Isolation and Protection: Provides high galvanic isolation between the primary VT circuit and the secondary electronics, and includes protection against overvoltage and surges.
• Form Factor: A modular card designed for installation in a dedicated Alstom P14x series rack or subrack chassis.
• Compliance: Meets relevant IEC and ANSI/IEEE standards for instrument transformers and auxiliary devices.

Key Advantages and Distinctive Features

This module offers distinct benefits for power automation:

• High Precision and Reliability: Engineered for the rigorous demands of power system protection, ensuring accurate voltage representation for safe and reliable grid operation.
• Galvanic Isolation: Provides critical electrical isolation, protecting sensitive downstream control and protection equipment from high-voltage transients and faults on the primary system.
• System Integration: Designed for seamless integration within the Alstom P140 platform, ensuring compatibility and simplified engineering with other Alstom protection relays like the P141, P142, and P143.
• Standardized Signal Conditioning: Converts utility-scale voltages to standardized, low-level signals that are universally accepted by modern digital IEDs (Intelligent Electronic Devices).
• Legacy System Support: The ALSTOM MVTU11K1CD0751G is a vital spare part for maintaining and extending the lifecycle of existing Alstom-equipped substations, avoiding costly full-system replacements.

Application Scenarios and Case Studies

The MVTU11K1CD0751G is applied in high-voltage electrical transmission and distribution infrastructure:

• Electrical Substations: Used in bays for feeding measured phase-to-phase and phase-to-neutral voltages to line differential protection relays, distance protection relays, and voltage regulators.
• Power Generation Plants: Interfaces generator terminal VTs to protection and synchronizing equipment.
• Industrial Power Management: In large industrial complexes with high-voltage incomers, it provides accurate voltage data for energy management and system protection.
• Railway Electrification: Used in traction power substations for measurement and protection of the contact network voltage.

A typical case involves a substation modernization project where existing analog protection schemes are retained. The ALSTOM MVTU11K1CD0751G modules are used to reliably interface the original instrument transformers with new digital bay controllers or phasor measurement units (PMUs).

Comparison with Competing Products

Compared to similar interface modules from competitors like Siemens (SIPROTEC series accessories), ABB (REL/REC series modules), or GE Multilin, the ALSTOM MVTU11K1CD0751G has specific context:

• Platform Specificity: It is a proprietary component optimized for the Alstom P14x system architecture. Its primary advantage is guaranteed compatibility and performance within that ecosystem.
• Legacy Niche: For competing in greenfield projects, modern multifunction IEDs often integrate this functionality digitally. The MVTU11K1CD0751G competes more as a high-quality, dedicated spare part for legacy systems rather than as a standalone new product.
• Performance: Its accuracy and reliability are on par with top-tier industrial and utility-grade products from other major manufacturers when evaluated for its specific function.

Competitors’ modern equivalents may offer broader functionality (e.g., merging units for IEC 61850) or more compact designs. The selection often hinges on the existing installed base.

Selection Guidelines and Important Considerations

Selecting and replacing this module requires careful attention:

1. System Compatibility Verification: The ALSTOM MVTU11K1CD0751G is not a universal part. It must be confirmed as the exact replacement for the failed module in a specific Alstom P14x chassis. Consult the original system schematic or rack layout.
2. Input Voltage Matching: Absolutely critical to match the VT secondary input voltage rating of the module (e.g., 110V/√3) to the output of the connected Voltage Transformer. A mismatch can cause measurement errors or damage.
3. Function Verification: Confirm the module’s specific function (e.g., three-phase voltage input, single-phase, with or without fuse supervision) matches the slot’s requirement in the protection scheme.
4. Obsolescence Management: As part of a legacy system, ensure availability from specialized suppliers. Verify the exact firmware or hardware version if applicable.
5. Safety First: Installation and replacement must be performed by qualified personnel following strict high-voltage safety procedures (lock-out/tag-out). The system must be de-energized.
6. Documentation: Always cross-reference the full model number MVTU11K1CD0751G and seek technical data sheets, which can be found via the provided product link, before procurement. Consider the long-term support strategy for the entire protection panel.
