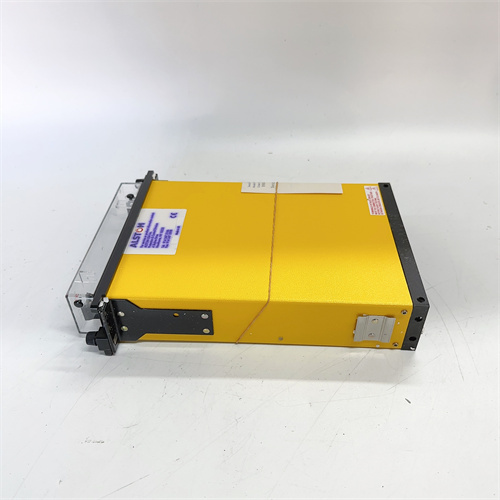

ALSTOM MVAW11B1AB9007A

Description

Product Overview and Introduction

The ALSTOM MVAW11B1AB9007A is a critical printed circuit board (PCB) assembly used within the ALSTOM P140 series of protection and control systems for electrical power networks. This module functions as a voltage measurement and watchdog unit, playing a specialized role in the accurate acquisition and conditioning of voltage signals from instrument transformers (VTs/PTs). The ALSTOM MVAW11B1AB9007A is designed to ensure the integrity of voltage measurements, which are fundamental for protection functions like distance protection, voltage restraint, and synchronism checking. As part of the legacy ALSTOM (now part of GE Grid Solutions and Hitachi Energy through various transitions) protection lineup, this board is a vital component for the maintenance and reliability of high-voltage substation control systems.

Detailed Product Parameters and Specifications

This module is defined by technical parameters specific to power system measurement and monitoring:

• Primary Function: Voltage Input / Watchdog Module for protection relays (e.g., within P141, P142, P143 families). It conditions raw voltage transformer (VT) signals and includes monitoring circuitry for system health.
• Input Voltage Range: Accepts standardized secondary voltages from voltage transformers, typically 110/√3 V or 120/√3 V for phase-to-ground measurements, and 110V or 120V for phase-to-phase, at 50/60 Hz.
• Signal Conditioning: Provides scaling, filtering, and isolation to convert high-voltage instrument signals to precise, low-level analog signals suitable for the relay’s analog-to-digital converters.
• Watchdog Functionality: Incorporates circuitry to monitor the health of the relay’s internal power supplies and processing units, generating a reset or alarm signal in case of a fault to ensure fail-safe behavior.
• Accuracy: Designed to meet a specific accuracy class (e.g., 0.5 or higher) suitable for protection and measurement, ensuring the relay receives a faithful representation of the primary system voltage.
• Isolation: Provides high galvanic isolation between the high-voltage VT circuits and the relay’s low-voltage electronics, protecting the system from transients and faults.
• Form Factor: A specialized PCB designed to plug into a dedicated slot within an ALSTOM P14x series relay chassis or subrack.
• Environmental Compliance: Built to withstand the environmental conditions of substation control panels.

Key Advantages and Distinctive Features

The ALSTOM MVAW11B1AB9007A provides several important benefits for power system protection:

• High Measurement Fidelity: Ensures accurate and reliable voltage signal acquisition, which is the cornerstone of correct operation for many protection algorithms, particularly impedance-based (distance) protection.
• Integrated Health Monitoring: The built-in watchdog function adds a layer of system reliability by continuously verifying the operational status of the relay’s core systems, enhancing overall availability.
• System Compatibility and Reliability: As an original ALSTOM component, it guarantees electrical and mechanical compatibility with the P140 relay series, ensuring long-term stable operation and maintaining the relay’s certified performance.
• Legacy System Sustainability: For the extensive global installed base of ALSTOM P140 relays, the MVAW11B1AB9007A is an essential spare part that extends the service life of critical protection assets, avoiding costly full system replacements.
• Robust Design: Engineered for the high electromagnetic interference (EMI) environment of substations, ensuring signal integrity even during switching events and faults. The dependable performance of the ALSTOM MVAW11B1AB9007A is key to the trusted operation of the protection relay.

Application Scenarios and Case Studies

This module is used within protection relays deployed in high-voltage electrical transmission and distribution infrastructure:

• Transmission Line Protection: Inside a P143 distance protection relay, where accurate voltage and current measurements are crucial for determining the fault location on a 230 kV or 400 kV line.
• Transformer Protection: Within a P142 differential relay, where it may be used for voltage input for restraint characteristics or for synchronism checking during transformer energization.
• Busbar Protection: As part of a P141 busbar protection system, providing voltage signals used in check zone schemes or for voltage-based supervision.
• Industrial Power Systems: Protecting the main incoming feeders in large industrial plants with high-voltage substations.

A typical application case is the refurbishment of a substation protection panel. A failing ALSTOM MVAW11B1AB9007A voltage input board in a P143 line protection relay is identified through diagnostics. Replacing it with a genuine module restores the relay’s measurement accuracy, ensuring the continued reliable operation of the distance protection scheme without needing to replace the entire, otherwise functional, relay unit.

Comparison with Competing Products

As a proprietary board-level component, its comparisons are specific:

• OEM-Specific Component: Its direct equivalents are the voltage input/watchdog boards from other protection relay manufacturers for their respective platforms, such as Siemens (SIPROTEC 4 series modules), ABB (REL 5xx/6xx series boards), or GE Multilin. The MVAW11B1AB9007A‘s sole advantage is perfect compatibility with the ALSTOM P140 series.
• Versus Modern Integrated Designs: Newer digital relays often integrate this functionality directly into the main processing board. This module represents the modular, card-based architecture of its generation. Competing on a technology basis is not relevant; its role is sustaining existing assets.
• Performance Context: Within its generation, it provided performance meeting the industry standards of the time. Modern integrated solutions may offer higher accuracy or additional features but are not interchangeable.

There is no multi-vendor market for this exact component. Selection is dictated by the need to maintain a specific model of ALSTOM relay.

Selection Guidelines and Important Considerations

Selecting and handling this module requires meticulous attention to detail:

1. Exact Relay Compatibility: The ALSTOM MVAW11B1AB9007A is not universal. It must be verified as the correct spare part for the specific ALSTOM relay model (e.g., P143, revision level), chassis type, and slot position. Cross-reference with the relay’s factory wiring diagram and parts list is mandatory.
2. Firmware/Software Considerations: In some systems, the relay’s overall firmware may have dependencies on the hardware revision of such modules. Consult technical bulletins or ALSTOM/GE support.
3. Obsolescence Management: This is a legacy component. Verify current availability and lead times from specialized suppliers. Consider the long-term support strategy for the entire relay panel.
4. Handling and ESD Protection: This is a static-sensitive electronic assembly. It must be handled with proper ESD (electrostatic discharge) precautions—using grounded wrist straps and anti-static bags—to prevent invisible damage to components.
5. Installation by Qualified Personnel: Replacement should only be performed by trained protection technicians. The relay must be taken out of service, and all AC and DC supplies must be isolated and proven dead before any work begins, following strict safety protocols.
6. Testing and Commissioning: After replacement, the relay must undergo thorough functional testing, including secondary injection tests to verify the accuracy of the voltage measurement channels. Always use the exact module number MVAW11B1AB9007A and refer to the official technical documentation available via the product link for any specific instructions.
