ALSTOM MVAW11B1AB0513A

Description

Product Description

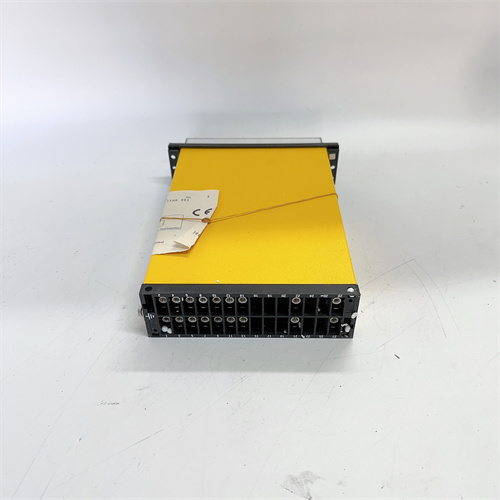

The ALSTOM MVAW11B1AB0513A is a sophisticated numerical differential protection relay, part of the MiCOM Px4x series, specifically designed for the protection of high-voltage motors. This relay provides comprehensive, high-speed protection for critical motors against internal faults, which are among the most severe and damaging electrical failures. The primary function of the ALSTOM MVAW11B1AB0513A is to continuously compare the currents entering and leaving the motor windings. Any significant imbalance indicates an internal fault, such as a phase-to-phase or turn-to-turn short circuit, prompting the relay to instantly trip the circuit breaker and isolate the motor. By implementing this relay, operators safeguard expensive motor assets from catastrophic damage, prevent extensive downtime, and enhance overall system reliability in industrial and utility applications.

Technical Parameters and Features

• Device Type: Numerical Motor Differential Protection Relay.
• Protection Functions:
  • High-Speed Differential Protection (87M): The core function, providing unit protection for the motor stator windings with adjustable operating characteristics.
  • Restricted Earth Fault (REF) Protection: For sensitive detection of ground faults within the motor windings.
  • Thermal Overload Protection (49): Models the motor’s thermal capacity based on measured current to prevent overheating damage.
  • Other Motor Protections: Often includes additional functions like start-up supervision, stall protection, and unbalance protection.
• Inputs: Typically requires three-phase current inputs from Current Transformers (CTs) installed at both the line (source) and neutral (motor) sides of the motor to perform the differential calculation.
• Communication & Integration: Equipped with multiple communication ports supporting protocols like Modbus, IEC 61850, and Profibus for integration into SCADA systems and for peer-to-peer data exchange.
• Human-Machine Interface (HMI): Features a clear graphical LCD display and keypad for local settings, real-time data viewing, and event analysis.
• Event Recording: Contains a detailed disturbance recorder and sequence of events (SOE) logger for post-fault analysis.
• Certifications: Complies with major international standards (IEC, IEEE) for protective relaying.

Advantages and Key Features

• Ultra-Fast and Selective Fault Clearing: The ALSTOM MVAW11B1AB0513A provides the fastest possible protection for internal motor faults, minimizing the extent of damage and the risk of a motor fire. Its unit protection scheme ensures it only operates for faults within its protected zone, maintaining power to the rest of the system.
• High Security and Dependability: Advanced algorithms provide excellent stability during motor start-up (high inrush currents) and external faults, preventing nuisance trips while remaining highly sensitive to genuine internal faults.
• Comprehensive Motor Management: Beyond pure differential protection, it offers a suite of integrated motor protection features, reducing the need for multiple separate relays and simplifying the overall protection scheme.
• Advanced Diagnostics and Analysis: The relay’s detailed event recording and oscillographic capture capabilities are invaluable for determining the root cause of a fault, helping to prevent recurrence and plan maintenance.
• Flexible Integration: Support for modern communication standards like IEC 61850 makes the MVAW11B1AB0513A ready for integration into digital substation architectures and smart grid applications.

Application Case Studies in Various Fields

• Power Plant (Induced Draft Fan Motor): Protects a 6.6kV, 3 MW fan motor critical for boiler operation. The ALSTOM MVAW11B1AB0513A provides differential and thermal protection, ensuring a winding fault does not lead to a forced plant outage.
• Oil & Gas (Main Pipeline Compressor Motor): Used on a 10 kV, 8 MW synchronous motor driving a centrifugal compressor. The relay’s fast differential action protects this high-value asset from severe internal damage, which would halt gas transmission.
• Mining (SAG Mill Drive Motor): Protects the large, high-inertia motor driving a Semi-Autogenous Grinding (SAG) mill. The relay must remain stable during the prolonged and high-magnitude start-up current while being ready to trip instantly for a winding fault.
• Water Treatment (High-Pressure Pump Motor): Safeguards the main pump motors in a desalination plant, where reliability is paramount for continuous water production.

Comparison with Competing Products

Compared to using overcurrent relays (50/51) or a combination of separate protection devices, the ALSTOM MVAW11B1AB0513A offers a superior, dedicated solution:

1. Differential vs. Overcurrent Protection: Standard overcurrent relays cannot distinguish between an internal motor fault and a high-load condition or external fault with the same speed and selectivity. The MVAW11B1AB0513A‘s differential function provides absolute discrimination, making it the gold standard for critical motor protection.
2. Integrated vs. Discrete Design: This single relay integrates differential, thermal, and other motor protections. A competing solution might require a separate differential relay, a thermal overload relay, and a multifunction relay, increasing cost, panel space, and wiring complexity.
3. Legacy of Expertise: Alstom (now part of GE Grid Solutions) has a long heritage in protection. The MiCOM Px4x platform is a proven, globally recognized product line, offering a compelling alternative to motor protection relays from Siemens (7SK) or ABB (REF).

Selection Advice and Important Notes

• Requires Matched CTs: Differential protection accuracy depends on the characteristics of the CTs on both sides of the motor. They should be of the same ratio, type, and performance class (typically Class X or PX). Mismatched CTs can cause false operation.
• Careful Setting Calculations: The differential operating characteristic, thermal model parameters, and CT mismatch compensation must be calculated based on the specific motor’s data sheet (full load current, locked rotor current, thermal time constants).
• Commissioning Testing is Critical: Comprehensive secondary injection testing is mandatory to verify the differential function’s operation, stability during inrush simulation, and communication with the trip circuit.
• Secure Communication Configuration: When using IEC 61850 or other network protocols, ensure proper network security measures (firewalls, VLANs) are implemented to protect this critical protection device from cyber threats.
• Spare Parts and Support Strategy: Given its role in protecting critical assets, ensure a clear strategy for technical support, firmware updates, and access to spare MVAW11B1AB0513A relays.
