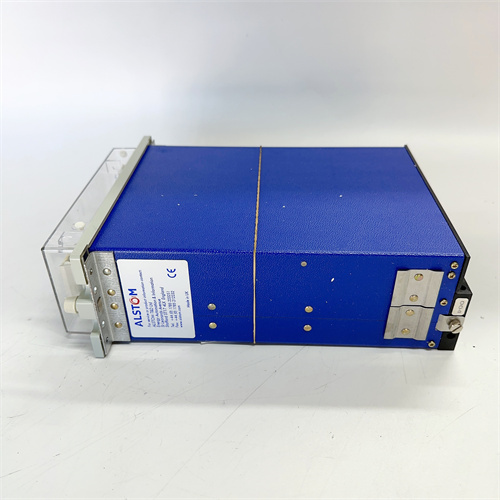

ALSTOM MFAC14K1AA0001A

Product Overview and Description

The ALSTOM MFAC14K1AA0001A is a high-performance, digitally controlled Excitation Controller card, a critical component within ALSTOM’s (now part of GE Grid Solutions) P320 and P340 series of MICOM protection and control relays, specifically designed for generator management. This sophisticated module is not a standard PLC I/O card but a specialized automation spare part responsible for regulating the field current of a synchronous generator, thereby controlling its terminal voltage and reactive power output. The precision engineering of the ALSTOM MFAC14K1AA0001A ensures stable generator operation under varying load conditions, contributing directly to grid stability. Its integration into the modular relay platform makes it a vital spare for maintenance and lifecycle management of power generation automation systems. The reliability and advanced control algorithms embedded in the ALSTOM MFAC14K1AA0001A are essential for preventing voltage collapses and ensuring efficient power plant performance.

Key Parameters and Specifications

• Manufacturer & Platform: ALSTOM (GE Grid Solutions), for P32x/P34x MICOM Relay Series.
• Module Type: Excitation Control / Automatic Voltage Regulator (AVR) Printed Circuit Board (PCB).
• Primary Function: Closed-loop control of generator field excitation current.
• Control Inputs: Accepts generator terminal voltage (VT) and current (CT) signals as feedback.
• Output Control: Provides a controlled DC signal (or firing pulses for a thyristor bridge) to the generator’s exciter field.
• Control Modes: Typically includes automatic voltage control (AVC), power factor control, and reactive power (var) control modes.
• Protection Features: Incorporates under-excitation and over-excitation limiters (UEL/OEL) to protect the generator rotor.
• Communications: Integrates with the relay’s communication ports (RS485, Ethernet) for setpoint adjustment, monitoring, and integration into a plant DCS/SCADA system.
• Power Supply: Operates from the relay’s internal DC power supply (typically 24-48V DC or 110-240V AC/DC).

Advantages and Distinctive Features

The ALSTOM MFAC14K1AA0001A offers significant advantages in generator control precision and protection integration. Its primary strength is the seamless combination of high-performance voltage regulation with embedded protective limiters (UEL/OEL) on a single, field-replaceable card. A key feature is its digital design, which provides high accuracy, stability, and immunity to drift compared to older analog AVR systems. The module’s algorithms are optimized for fast response to load changes and network disturbances, supporting grid stability. Its modularity within the proven MICOM relay platform means the entire excitation control function can be replaced or upgraded without changing the entire relay chassis, minimizing downtime and spare parts inventory. The diagnostic capabilities and communication interfaces of the ALSTOM MFAC14K1AA0001A allow for remote monitoring and predictive maintenance.

Application Cases in Key Fields

• Thermal Power Generation: Regulating the voltage of a 500 MW steam turbine-generator set, ensuring constant terminal voltage during load ramps and maintaining power factor setpoints for grid code compliance.
• Hydroelectric Power Plants: Controlling the excitation of multiple hydro generators to manage reactive power support and voltage levels for a remote grid, leveraging the controller’s robust performance.
• Industrial Co-Generation: Managing the generator in a combined heat and power (CHP) plant for a large factory, ensuring stable in-plant voltage while exporting surplus power to the utility at a specified power factor.
• Marine Power Systems: Serving as the AVR for shipboard synchronous generators, maintaining stable bus voltage despite large, sudden load changes from thrusters or propulsion drives.

Comparison with Competing Products

Compared to standalone Automatic Voltage Regulator (AVR) cabinets, the ALSTOM MFAC14K1AA0001A represents a highly integrated solution where excitation control is a functional module within a multi-function generator protection relay (e.g., P321, P341). Competing solutions from other protection manufacturers (e.g., Siemens SIPROTEC 7UM62 or SEL-700G) offer similar integrated AVR functionality, but the hardware and configuration software are entirely proprietary and non-interchangeable. The ALSTOM MFAC14K1AA0001A is distinct from simpler voltage sensing or analog I/O cards; it is a dedicated control processor for a critical dynamic process. Its tight integration with the relay’s protection functions (like loss of excitation protection) provides a coordinated defense system that standalone AVRs cannot easily match.

Selection Suggestions and Precautions

Selection Suggestions:

1. Select the ALSTOM MFAC14K1AA0001A exclusively as a replacement card for a failed or degraded excitation control module within an existing ALSTOM P32x or P34x series MICOM generator protection relay.
2. It is the mandatory spare part for maintaining the AVR function in systems originally equipped with this specific module. The model number must match exactly.
3. Consider this module during a relay retrofit where upgrading the excitation control capability of an older relay is desired, provided the host relay chassis and firmware are compatible.

Important Precautions:

1. Exact Replacement: This part number is highly specific. Verify the exact marking on the failed PCB in the relay. Even slight variations in the suffix can indicate a different firmware or hardware revision.
2. Firmware Compatibility: The ALSTOM MFAC14K1AA0001A card’s internal firmware must be compatible with the overall firmware version of the host MICOM relay. A mismatch can cause malfunctions.
3. Configuration Backup & Restore: Before replacing the card, the relay’s complete configuration (settings, parameters) must be backed up using ALSTOM’s Micom S1 Studio software. This configuration must be restored to the new module after installation.
4. Calibration: After replacement, verification and potential calibration of the voltage and current measurement channels may be required using specialized test equipment to ensure regulation accuracy.
5. High-Voltage Environment: Replacement must be performed by qualified personnel with the generator offline and isolated, following strict electrical safety (lock-out/tag-out) procedures, as the relay is connected to high-voltage instrument transformers.
