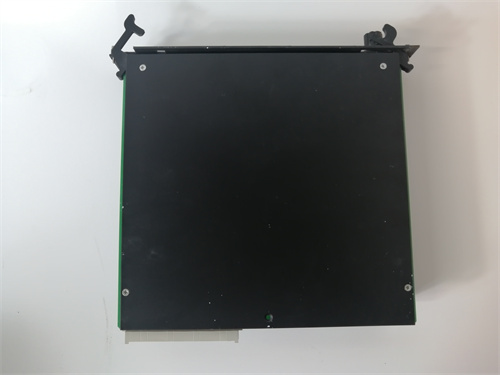

ALSTOM AL132 AL132A STO0982E01

Description

Product Description

The ALSTOM AL132 AL132A STO0982E01 is a critical protection relay module, specifically a differential protection relay, from the Alstom (now part of GE Grid Solutions) Micom P range. This device is designed for the high-speed, selective protection of transformers, generators, motors, and busbars by comparing current entering and leaving the protected zone. The ALSTOM AL132 AL132A STO0982E01 implements sophisticated differential algorithms to detect internal faults while remaining stable during external faults, magnetizing inrush, or overexcitation conditions. This specific module variant, identified by the STO0982E01 suffix, represents a particular hardware and firmware configuration with defined I/O and communication options. The reliability and precision of the ALSTOM AL132 AL132A STO0982E01 are paramount for preventing catastrophic equipment damage and ensuring power system stability. Integrating this differential relay, as per the ALSTOM AL132 AL132A STO0982E01 (https://www.example-link-alstom-product.com) specifications, is a standard practice for the primary protection of critical electrical assets in utilities and heavy industry. The dual model numbers AL132 and AL132A often indicate different hardware generations or feature sets within the same product family.

Product Parameters / Technical Specifications

• Manufacturer: ALSTOM (now GE Grid Solutions)
• Product Family: Micom P Series Protection Relays
• Device Type: Differential Protection Relay
• Base Model: AL132 / AL132A
• Specific Variant / Order Code: STO0982E01
• Protection Functions:
  • Percentage Restrained Differential Protection: High-impedance or low-impedance biased differential for transformers, generators, or motors.
  • Harmonic Restraint: 2nd and 5th harmonic restraint to prevent tripping during transformer energization (inrush).
  • Switch onto Fault Protection.
• Inputs: Multiple three-phase current inputs for comparison (e.g., for transformer windings).
• Outputs: Multiple Form-C relay outputs for trip, alarm, and signaling.
• Measurement & Monitoring: Provides metering of differential and restraint currents, event recording, and disturbance recording (oscillography).
• Communication Interfaces: Typically includes serial ports (RS485) for protocols like Modbus, IEC 60870-5-103, and may support IEC 61850 depending on the hardware variant.
• Human-Machine Interface (HMI): Front-panel LCD display and keypad for local control, settings, and data review.
• Power Supply: Wide-range DC or AC supply (e.g., 24-250V DC / 110-240V AC).
• Standards: Compliant with IEC 60255 and other relevant protection standards.

Advantages and Key Features

• High-Speed, Secure Protection: The ALSTOM AL132 AL132A STO0982E01 is engineered for rapid fault clearance of internal faults while being highly secure against false tripping during challenging conditions like inrush.
• Advanced Adaptive Algorithms: Incorporates intelligent features like harmonic restraint and bias characteristics that adapt to the protected equipment’s behavior.
• Comprehensive Diagnostics: Built-in monitoring, event logging, and disturbance recording provide valuable data for post-event analysis and condition-based maintenance.
• Flexible Application: Can be configured for various applications (transformer, generator, motor differential) through its extensive settings.
• Proven Technology: Part of the widely respected and deployed Alstom (GE) Micom protection relay family, known for its reliability in the field.

Application Cases in Various Fields

• Power Transformers (Utility & Industry): Primary protection for step-up and step-down transformers in substations and generation plants.
• Large Generators: Providing unit protection for hydro, gas, or steam turbine generators by comparing stator terminal and neutral currents.
• Large High-Voltage Motors: Protecting critical motors in industries like mining, oil & gas, and water supply against internal stator faults.
• Busbar Protection: Used in high-impedance differential schemes for protecting substation busbars.
• Renewable Energy Plants: Protecting the main power transformer in wind or solar farms.

Comparison with Competing Products

The ALSTOM AL132 AL132A STO0982E01 competes with other differential protection relays such as the Siemens 7UT6, ABB RED670, and SEL 787. Its primary advantages historically were its strong reputation, particularly in the European market, and its sophisticated algorithms for transformer protection. Compared to earlier generation electro-mechanical or simple static relays, it offers vastly superior functionality, settings flexibility, and data integration. The specific variant code STO0982E01 is crucial as it defines the exact communication and I/O build.

Selection Suggestions and Precautions

• Selection Advice: Select the ALSTOM AL132 AL132A STO0982E01 for the primary differential protection of critical transformers, generators, or large motors, especially in systems where this legacy Alstom/GE platform is already standardized. Selection must be based on the specific protected equipment’s parameters (CT ratios, winding configuration) and the required communication protocol defined by the variant.
• Precautions:
  1. CT Configuration & Matching: Correct CT selection, ratio matching, and connection are absolutely critical for differential protection. Mismatched CTs or incorrect wiring will cause maloperation.
  2. Settings Calculation & Coordination: Requires detailed knowledge to calculate settings for the bias characteristic, pickup values, and harmonic restraint. These must be coordinated with other protective devices.
  3. Commissioning Testing: Rigorous testing with a modern relay test set is mandatory. This includes verifying restraint during external fault simulations and operation during internal fault simulations, as well as testing the harmonic restraint feature.
  4. Software & Settings Management: Configuration is done via dedicated software (e.g., MiCOM S1). Always backup the relay’s settings file. Firmware compatibility between the software and hardware must be ensured.
  5. Legacy Product Considerations: As a legacy Alstom product, ensure ongoing technical support and spare parts availability are considered for the lifecycle of the installation.
