ALSTOM AL132 AL132A STO0982E01

Description

Product Description

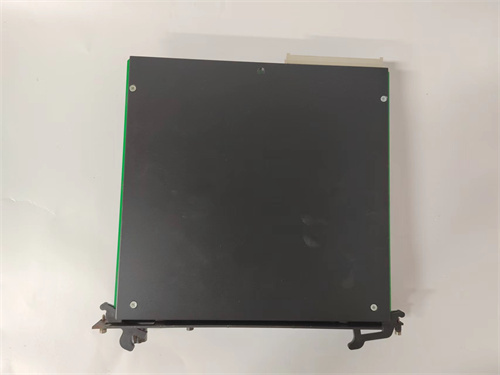

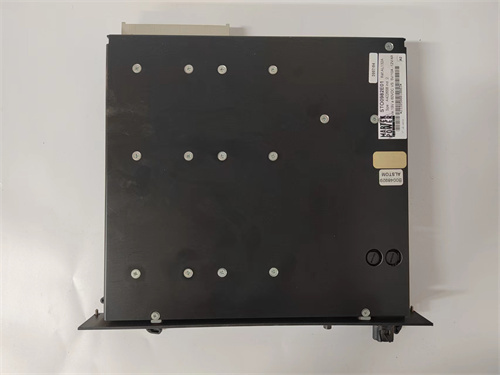

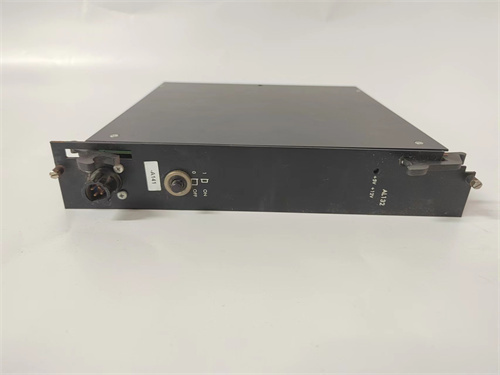

The ALSTOM AL132 AL132A STO0982E01 is a critical and specialized Power Supply Module from the Alstom (now part of GE/Grid Solutions) MICOM Px4x series of advanced numerical protection relays for electrical power systems. This module, often designated as a PSU (Power Supply Unit), provides the essential, isolated, and regulated DC power required for the reliable operation of the relay’s microprocessor, memory, I/O circuits, and communication interfaces. The ALSTOM AL132 likely refers to the base functional model, AL132A to a specific variant, and STO0982E01 to the detailed manufacturing part number. Its primary function is to convert the often-noisy and variable station auxiliary power (AC or DC) into the clean, precise voltage levels necessary for the sensitive electronics of a protection relay. For protection engineers in substations and power generation facilities, ensuring that relays like the MICOM P441/P442/P444 have a flawless power source is fundamental to system reliability. The failure of a module like the AL132A can render an entire protection bay inoperative, making it a high-priority spare part for maintenance strategies.

Product Parameters

• Module Type: Power Supply Unit (PSU) for Protection Relay.
• Product Family: Alstom (GE) MICOM Px4x Series (e.g., P441, P442, P444).
• Model Designations: AL132 (Base), AL132A (Variant), STO0982E01 (Specific Part Number).
• Input Voltage Range: Typically designed for a wide range of station supplies, such as:
  • 24/48/125 VDC
  • 110/220 VAC, 50/60 Hz
  • (Exact range is defined by the order code; the module is often auto-sensing).
• Output Voltages: Provides multiple isolated DC outputs (e.g., +5V, ±12V, +24V) for the relay’s internal circuits.
• Power Rating: Sufficient to power the relay and its auxiliary I/O, typically in the range of 15-30 Watts.
• Protections: Includes overvoltage, overcurrent, and thermal protection. The design ensures safe operation and prevents damage to the relay’s main processing board.
• Form Factor: A plug-in module that occupies a dedicated slot within the MICOM relay case.
• Hot-Swappable: In many configurations, it is designed to be replaceable without de-energizing the relay, supporting high availability.

Advantages and Features

• High Reliability and Availability: Engineered for continuous, unattended operation in the electrically harsh environment of a substation, with a design focus on maximizing Mean Time Between Failures (MTBF).
• Wide Input Range: The ability to accept a broad range of AC/DC inputs simplifies inventory and ensures global application without needing different hardware versions.
• Electrical Noise Immunity: Provides excellent isolation and filtering to protect the relay’s sensitive measurement and logic circuits from transients and noise on the station battery or AC supply.
• Integrated System Diagnostics: The relay’s firmware typically monitors the health of the AL132A power supply, providing early warnings for marginal operation or failures via front-panel LEDs and communication alerts.
• Maintenance-Friendly Design: The modular, plug-in nature allows for quick replacement by maintenance personnel, minimizing the time a protection function is out of service.

Application Cases in Application Fields

• Electrical Transmission Substations: Powering a MICOM P442 relay used for line differential protection on a critical 230kV transmission line.
• Distribution Substations: Providing the internal power for a MICOM P441 feeder management relay protecting a medium-voltage outgoing circuit.
• Power Generation (Generator Protection): Serving as the PSU in a MICOM P444 relay providing comprehensive generator protection (87G, 40, 59G) for a plant’s main unit.
• Industrial Plant Power Systems: Used in a MICOM P143/Px4x relay protecting a large in-plant transformer or motor circuit.

Comparisons with Competing Products
The ALSTOM AL132 AL132A STO0982E01 is a proprietary component. Its functional competitors are the power supply modules of other major protection relay manufacturers:

• Siemens SIPROTEC 7SJ/7SD/7UT Power Supply Modules: The AL132A competes on the basis of input range flexibility, reliability, and integration within the MICOM platform’s software diagnostics.
• ABB REL 6xx/REF 6xx Power Supply Boards: The Alstom module is part of a relay known for advanced algorithms and communications; the PSU’s role is to provide an equally robust foundation.
• SEL (Schweitzer Engineering Laboratories) Relay Power Supplies: SEL relays often have integrated, non-modular supplies. The modular AL132A offers a service advantage for quick field replacement.

The key advantage of the genuine ALSTOM AL132A is guaranteed compatibility and preservation of the relay’s safety certifications and performance specifications. Using a non-original PSU can void certifications and risk relay malfunction during a fault.

Selection Suggestions and Precautions

1. Exact Replacement Verification: Always use the exact part number from the failed unit or the relay’s official spare parts list. The relay’s order code determines the correct AL132A variant (e.g., for DC vs. AC input).
2. Input Source Verification: Before installation, verify that the station supply (AC or DC, voltage) matches the module’s rating. Applying an incorrect voltage can cause instant failure.
3. Safety First – De-energize: Even if hot-swap is possible, the safest practice for initial replacement is to isolate the relay’s control power via its external circuit breaker or fuse. Follow all local safety protocols (LOTO).
4. Firmware Considerations: In some relay families, the PSU hardware revision may need to be compatible with the relay’s main firmware version. Consult the relay’s technical manual or GE/Grid Solutions support.
5. Post-Replacement Tests: After installing the new STO0982E01 module, perform a relay self-test via the front panel or software. Verify that all status LEDs indicate normal operation and check relay communications before placing it back in service.
