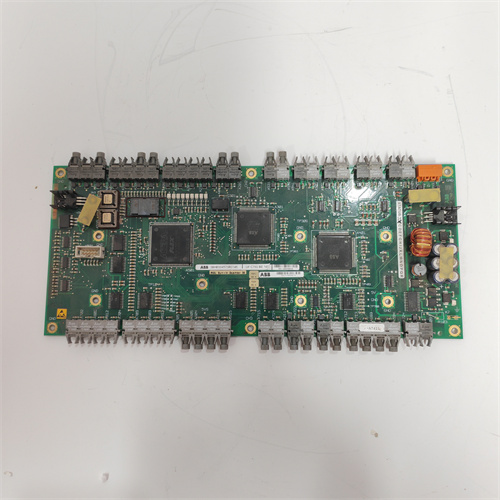

ABB UUD148AE01 3BHE014185R0001

Product Description

The ABB UUD148AE01, with the article number 3BHE014185R0001, is a critical I/O termination and signal conditioning unit for the ABB AC 800M High Integrity (HI) controller and System 800xA. This module acts as a Universal Digital I/O Termination Unit, providing the essential interface for wiring, isolating, and conditioning field signals before they are processed by the controller’s primary I/O modules. The ABB UUD148AE01 is designed to enhance system safety and reliability by offering a clear separation between the field wiring and the sensitive electronics of the I/O cards. For comprehensive technical specifications, wiring diagrams, and installation manuals, the essential resource is the official ABB Library portal for the ABB UUD148AE01. Implementing the UUD148AE01 unit is a fundamental step in creating a robust and maintainable I/O infrastructure, particularly in safety-critical applications where signal integrity and fault isolation are paramount. Its design simplifies commissioning and troubleshooting while adhering to the high standards of the 800xA High Integrity system.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: UUD148AE01 (Universal Digital I/O Termination Unit).
• Article Number: 3BHE014185R0001.
• System Compatibility: ABB AC 800M High Integrity (HI) Controller, System 800xA, S800 I/O.
• Function: Termination and Interface Unit for Digital I/O Modules.
• I/O Type Support: Designed to work with specific digital input (DI) and digital output (DO) modules in the S800 I/O family.
• Channel Capacity: Typically provides termination for a set number of channels, such as 16 channels, matching a corresponding I/O module.
• Termination: Features robust screw terminals for secure connection of field wiring (sensors, actuators).
• Isolation and Conditioning: Provides electrical isolation between the field side and the system side. May include components for signal conditioning, such as fuse holders, diodes for inductive load suppression, or test points.
• Diagnostic Aids: Often includes LED indicators for each channel to show the status (On/Off) of the field signal, providing immediate visual feedback.
• Connection: Connects to the mating I/O module (e.g., a UFC or UFD series module) via a reliable ribbon cable or a direct plug connector.
• Form Factor: A modular unit that mounts on a DIN rail adjacent to the I/O module within the I/O station.
• Safety Relevance: While a passive component, its correct use is critical in safety loops to ensure proper isolation and wiring integrity.

Advantages and Features

• Enhanced System Safety and Reliability: Provides a clear physical and electrical separation between the potentially harsh field environment and the sensitive control electronics, protecting the I/O modules from transients and wiring faults.
• Simplified Wiring and Maintenance: The clear terminal layout and channel numbering make field wiring straightforward. The unit allows for easy disconnection of field wiring from the electronics for testing or module replacement.
• Improved Diagnostic Visibility: Integrated per-channel LEDs allow technicians to quickly see the state of field devices without needing software tools, speeding up troubleshooting.
• Flexible and Modular: The termination unit is specific to its I/O module type, allowing for a tailored and organized I/O station layout. It is easily replaceable if damaged.
• Compliance with Best Practices: Using dedicated termination units like the UUD148AE01 is considered industry best practice for building reliable and professional control panels, especially in process industries.

Application Cases in Industry

• Safety Instrumented System (SIS) Panels: In an AC 800M HI rack, the ABB UUD148AE01 termination unit provides the wired interface for digital inputs from emergency stop buttons and safety switches, and for digital outputs to shutdown valves, ensuring a reliable connection for SIL-rated loops.
• Process Control Cabinet: Used in a standard process unit to terminate wiring for a bank of 16 limit switches or solenoid valves, organizing the cabinet and protecting the UFC digital I/O module.
• Motor Control Center (MCC) Integration: Terminates the start/stop signals and status feedback from motor starters in an MCC, providing a clean interface to the DCS I/O module.
• Packaging Line Control: Organizes the dense wiring from numerous photoelectric sensors and pneumatic valve actuators on a high-speed packaging machine.
• Water Treatment Plant: Provides the termination point for level switch inputs and pump run feedback signals in a remote I/O panel.

Comparison with Competing Products

Competing products are termination units from other DCS/PLC manufacturers, such as Siemens SIMATIC ET 200SP terminal modules or Rockwell Automation 1492 terminal block I/O modules. The ABB UUD148AE01 differentiates itself through its specific design and certification for integration with the ABB S800 I/O system and High Integrity applications. Compared to wiring directly to an I/O module’s built-in terminals, the UUD148AE01 offers superior protection, easier maintenance, and better organization. Its primary advantage is as part of a cohesive, vendor-recommended wiring strategy that enhances the overall reliability and serviceability of the ABB control system.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB UUD148AE01 as the mandatory termination unit for its corresponding S800 digital I/O module (as specified in the I/O module’s datasheet). Do not use it with incompatible modules.
  2. Order the correct mating cable (typically a specific ribbon cable) to connect the UUD148AE01 termination unit to the I/O module.
  3. Plan the DIN rail layout to place the termination unit directly adjacent to its associated I/O module for a neat and short cable connection.
• Precautions:
  1. Correct Module Pairing: This is critical. The UUD148AE01 is designed for a specific UFC/UFD module type. Using it with the wrong module can result in incorrect pin mapping, lack of isolation, or damage.
  2. Fusing and Protection: If the unit includes fuse holders, always install the correctly rated fuses for the field circuit. For output units driving inductive loads, ensure suppression diodes (if not integrated) are installed across the load as per the manual.
  3. Torque Specifications: Adhere to the specified torque for the screw terminals to ensure a gas-tight connection without damaging the terminal.
  4. Grounding: Follow the system grounding instructions. Ensure the termination unit’s ground connection (if present) is properly bonded to the panel’s ground busbar.
  5. Sourcing and Installation: Source the unit using the article number 3BHE014185R0001 from authorized ABB distributors. During installation, ensure the ribbon cable is fully seated and latched. Label all field wires clearly at the termination unit. Never bypass the termination unit to wire directly to the I/O module, as this compromises system design integrity and protection.
