ABB USC329AE01 3BHB002482P201

Description

Product Description

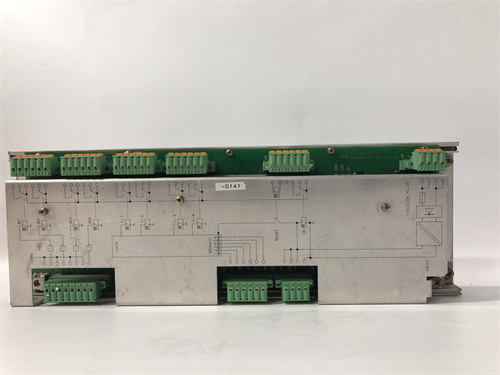

The ABB USC329AE01, with the article number 3BHB002482P201, is a high-performance, safety-critical communication interface module for the ABB AC 800M High Integrity (HI) controller family within the System 800xA. This module functions as a specialized Safety Communication Module, designed to manage deterministic and secure data exchange within a Safety Instrumented System (SIS). The ABB USC329AE01 is engineered to implement safety-rated communication protocols, such as SafetyNet p, enabling reliable peer-to-peer communication between safety controllers or between safety and basic process control systems. For comprehensive technical specifications, safety manuals, and configuration guides, the essential resource is the official ABB Library portal for the ABB USC329AE01. Implementing the USC329AE01 module is fundamental to building a certified, fault-tolerant safety network where the integrity of safety-related data transmission is paramount. Its design meets stringent requirements for functional safety, making it a cornerstone for integrated safety architectures in the most critical process industries.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: USC329AE01 (Safety Communication Module).
• Article Number: 3BHB002482P201.
• System Compatibility: ABB AC 800M High Integrity (HI) Controller, System 800xA.
• Function: Safety-rated Communication Interface (e.g., for SafetyNet p or similar proprietary safety protocol).
• Safety Certification: Certified according to IEC 61508 for use in Safety Instrumented Systems (SIS), supporting high Safety Integrity Levels (SIL 2/ SIL 3).
• Primary Protocol: Implements a deterministic, safety-rated protocol like SafetyNet p, which is designed for fast, reliable, and secure data exchange between safety nodes with built-in error checking and redundancy.
• Communication Ports: Typically includes dual or redundant optical fiber ports to create a high-availability, fault-tolerant ring or redundant star network topology.
• Data Handling: Manages the exchange of safety process data (inputs/outputs), system status, and diagnostic information between controllers with a guaranteed response time.
• Redundancy Support: Designed to support network redundancy and may be used in redundant configurations itself to eliminate single points of failure in the communication path.
• Diagnostics: Extensive self-diagnostics and network health monitoring, with all faults reported to the safety controller for appropriate safe action.
• Configuration: Configured using ABB’s Control Builder Safe engineering tool, which is dedicated to safety application development.
• Form Factor: A single-slot module designed for installation in an AC 800M HI controller rack.

Advantages and Features

• Functional Safety Certified: Provides a pre-certified communication path for safety-related data, which is essential for achieving system-level SIL certification and reducing validation effort.
• Deterministic and High-Speed: Ensures predictable and fast data transfer times between safety controllers, which is critical for meeting the response time requirements of Safety Instrumented Functions (SIFs).
• High Availability and Fault Tolerance: Redundant network ports and protocols designed to detect and compensate for communication faults, ensuring continuous availability of the safety network.
• Secure Data Integrity: Incorporates advanced mechanisms (e.g., CRC, sequence numbers, time stamps) to guarantee the integrity and authenticity of safety messages, preventing undetected corruption.
• Seamless 800xA HI Integration: Fully integrated into the ABB 800xA High Integrity engineering and operational environment, allowing for unified configuration and management of both basic control and safety systems.

Application Cases in Industry

• Distributed Safety Systems in Refineries: Multiple ABB USC329AE01 modules link several AC 800M HI controllers across a large refinery to coordinate a plant-wide Emergency Shutdown (ESD) system over a SafetyNet p fiber-optic ring.
• Integrated Fire & Gas (F&G) Systems: Connects safety controllers in different geographical zones of an offshore platform to a central F&G logic solver, ensuring fast and reliable activation of deluge and alarm systems.
• Burner Management System (BMS) Networking: Facilitates communication between redundant safety controllers managing boiler safety functions, allowing them to share critical flame and valve status data.
• Pipeline Compression Station Safety: Links the safety controllers for individual compressor units to a station master safety controller to implement coordinated unit shutdowns and anti-surge protection.
• Chemical Process with Independent Protection Layers (IPLs): Enables secure data exchange between the Basic Process Control System (BPCS) and a separate SIS, allowing for alarm routing and permissive interlocks while maintaining safety system independence.

Comparison with Competing Products

Competing products are safety communication modules from other safety system vendors, such as the Siemens SIMATIC S7-1500 F-CPU with PROFIsafe over PROFINET or the Emerson DeltaV SIS network with its own safety protocol. The ABB USC329AE01 differentiates itself through its deep integration within the ABB 800xA High Integrity platform and its use of the dedicated SafetyNet p protocol. Compared to using standard Ethernet with a safety protocol layer (like PROFIsafe), the USC329AE01 and SafetyNet p offer a purpose-built, deterministic solution often preferred in large, process-critical applications. Its primary advantage is providing a cohesive, vendor-supported safety communication backbone specifically for ABB’s safety controllers.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB USC329AE01 specifically when designing a networked safety system using multiple ABB AC 800M HI controllers and the SafetyNet p protocol is required.
  2. Plan the safety network topology (ring, redundant star) carefully during the system design phase, considering physical distances, required redundancy, and segregation from non-safety networks.
  3. Verify compatibility with the specific AC 800M HI CPU model and firmware version.
• Precautions:
  1. Safety Lifecycle Compliance: The module must be used within a formally designed and validated Safety Instrumented System per IEC 61511. Its application requires safety engineering competence.
  2. Network Design and Segregation: The safety network must be physically and logically segregated from all other plant networks. Use dedicated fiber-optic cabling and network switches if required.
  3. Configuration by Certified Personnel: Configuration of the USC329AE01 and the SafetyNet p network must be performed by personnel trained and qualified in functional safety and the ABB toolset (Control Builder Safe).
  4. Redundancy and Testing: Implement network redundancy as per the Safety Requirement Specification (SRS). The entire safety communication loop, including redundancy failover, must be thoroughly tested during Factory Acceptance Test (FAT) and Site Acceptance Test (SAT).
  5. Genuine Parts and Documentation: Source the module using the exact article number 3BHB002482P201 from authorized ABB channels. Maintain all safety manuals and validation documentation. Unauthorized modifications or use of non-genuine parts completely invalidates the safety certification and poses severe risk.
