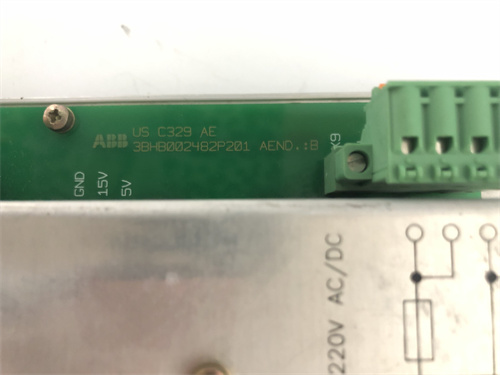

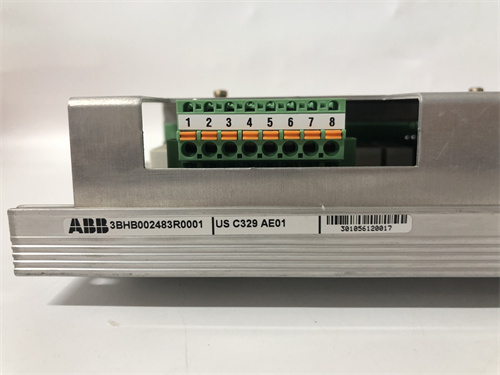

ABB USC329AE01 3BHB002481R001

Description

Product Overview

The ABB USC329AE01 3BHB002481R001 is a critical printed circuit board (PCB) assembly, specifically a Power Supply Unit (PSU) or Auxiliary Control Board for ABB’s high-power industrial systems, most notably within their ACS 6000 medium-voltage variable frequency drives (VFDs). This module, identified by the article number 3BHB002481R001, serves as a dedicated power conversion or management unit within a drive power cell or cabinet. Its primary function is to generate the stable, isolated low-voltage DC power rails (e.g., +5V, ±15V, +24V) required to operate the sensitive control electronics, gate drive circuits, and sensors within that cell, from a higher-voltage AC or DC input source. For comprehensive technical schematics, application notes, and safety documentation, please refer to the official product resource: ABB USC329AE01 3BHB002481R001. The ABB USC329AE01 is a vital support component; its failure can disable an entire power cell by depriving the control and gate drive electronics of power, leading to a drive trip.

Product Parameters and Specifications

• Function: Dedicated Power Supply or Auxiliary Control Board for Drive Power Cell.
• System Compatibility: Designed for a specific location within an ACS 6000 drive power cell or auxiliary cabinet. The AE01 suffix indicates a specific hardware variant.
• Input Voltage: Typically accepts a three-phase AC input (e.g., 400-480V AC) or a high-voltage DC input derived from the drive’s internal bus, and converts it to regulated low-voltage DC outputs.
• Output Voltages: Provides multiple, isolated DC outputs with specific current ratings to power different subsystems, such as:
  • Logic Voltage: +5V for microprocessors and digital logic.
  • Analog Voltage: ±15V for sensor circuits and op-amps.
  • Interface Voltage: +24V for relay coils, indicators, and gate drive auxiliary power.
• Protection Features: Includes standard power supply protections: overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection.
• Isolation: Provides reinforced isolation between the input (high voltage) and the outputs (low voltage), as well as between different output groups, to meet safety standards and prevent noise coupling.
• Monitoring: May include status signals (Power Good, Fault) communicated to the cell’s main controller.

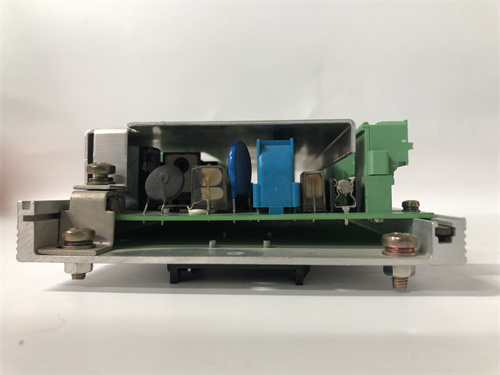

• Form Factor: A PCB assembly, often housed in a metal casing or designed for mounting on a chassis with a heatsink, installed in a dedicated slot within the cell.

Advantages and Key Features

The ABB USC329AE01 3BHB002481R001 offers the key advantage of being a genuine, application-specific power solution that is perfectly matched to the electrical load and environmental requirements of the drive cell. It provides extremely stable and clean output voltages, which is paramount for the reliable operation of sensitive analog measurement circuits and digital controllers. The module’s high efficiency and robust thermal design ensure reliable 24/7 operation in the demanding thermal environment of a power electronics cabinet. Its integrated protection and monitoring features safeguard both the power supply itself and the downstream electronics it powers. Using this exact ABB assembly guarantees restoration of the original system’s reliability and safety margins, as generic power supplies cannot replicate the specific form factor, connector interface, output sequencing, and EMI performance designed for the system.

Application Cases in Industry

This power supply board is used exclusively within the power cells of ABB ACS 6000 medium-voltage drives, which are deployed in the most critical high-power applications:

• Mining: In Gearless Mill Drives (GMDs) for ore grinding.
• Metals: For main drives in rolling mills.
• Oil & Gas: Controlling large compressors and pumps.
• Marine Propulsion: In the drives for large vessels.
• Power Generation: For critical boiler feed pump drives.
  The failure of a USC329AE01 will cause a loss of control power in its cell, resulting in a cell fault and immediate drive shutdown.

Comparison with Competing Products

1. Genuine ABB Drive Spare (this board): Guarantees perfect mechanical fit, electrical compatibility (input/output specs, connectors, monitoring signals), and thermal performance within the original design. It is the only ABB-supported solution.
2. Third-Party “Compatible” or Refurbished Board: Carries significant risk. Even if the voltage outputs are similar, differences in startup sequencing, dynamic response to load changes, EMI characteristics, form factor, or connector pinout can lead to system instability, intermittent faults, or failure to start. It may also lack the necessary status signaling to the controller.
3. Generic Industrial Power Supply: A standard DIN-rail power supply is not a viable alternative. It would lack the specific multiple outputs, form factor, mounting, monitoring interfaces, and the validated performance within the high-EMI environment of the drive cell.

For maintaining an existing ACS 6000 drive, the ABB USC329AE01 3BHB002481R001 is the only reliable choice.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Match is Essential: The codes USC329AE01 and 3BHB002481R001 must be identical to those on the failed unit. These define the specific electrical and mechanical design.
  2. Drive and Cell Identification: Document the complete drive model (ACS 6000), serial number, and the exact power cell designation from which the board was removed.
  3. Visual Inspection: Before ordering, if possible, note the connector types and any jumper settings on the old board to aid in verification.
  4. Source from Authorized ABB Channels: Purchase this component only from ABB’s Medium Voltage Drive services or their most trusted, authorized global spare parts distributors specializing in drive components.
• Important Precautions:
  1. High-Voltage Hazard: The drive cabinet contains lethal medium voltages (several kV). Strict lock-out/tag-out (LOTO) procedures as defined by ABB must be followed. The input to this power supply may be at high voltage even when the main drive is off.
  2. Capacitor Discharge: Power supplies contain large capacitors that can hold a charge. Allow sufficient time for discharge after disconnecting input power or verify with a voltmeter before handling.
  3. ESD and Handling: Handle the board with ESD precautions. Ensure it is securely mounted and that all connectors are fully seated.
  4. Post-Replacement Verification: After installation, during the drive’s recommissioning procedure, verify that all output voltages from the new USC329AE01 are within specification before allowing the cell’s control electronics to power up. This is typically part of the step-by-step startup sequence performed by qualified personnel.
