ABB UFC912A101 3BHE039426R0101

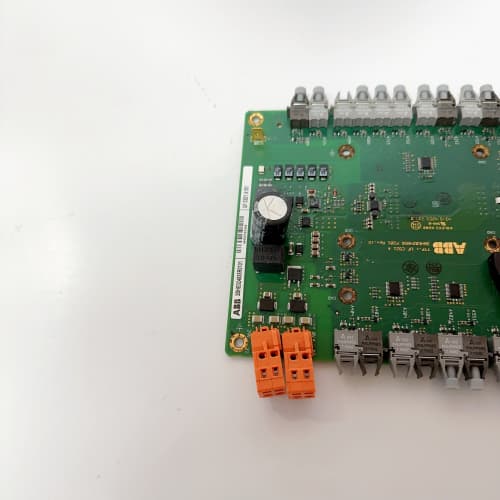

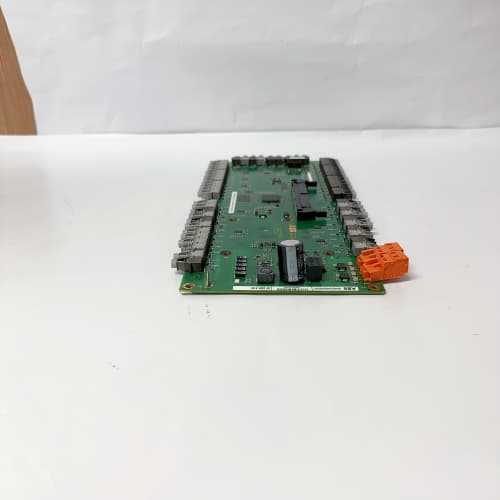

ABB UFC912A101 3BHE039426R0101 is a high-performance Analog Input/Output (I/O) Processor Module engineered for ABB Advant/Symphony DCS, serving as a core data processing hub for power generation, petrochemical, and heavy manufacturing industries.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC912A101 3BHE039426R0101 is a high-performance Analog Input/Output (I/O) Processor Module engineered for ABB Advant/Symphony DCS, serving as a core data processing hub for power generation, petrochemical, and heavy manufacturing industries. ABB UFC912A101 3BHE039426R0101 integrates 12-channel analog input and 8-channel analog output, supporting 4-20mA and 0-10V signal conversion with high precision for critical process control. ABB UFC912A101 3BHE039426R0101 natively communicates via ABB Masterbus 300 and Modbus RTU, enabling seamless data exchange with ABB controllers and third-party instruments without extra protocol converters. Its rugged industrial design and hot-swappable capability make ABB UFC912A101 3BHE039426R0101 ideal for harsh environments, allowing maintenance without system shutdown to minimize operational downtime. Whether deployed in thermal power plant turbine control or chemical reactor monitoring, ABB UFC912A101 3BHE039426R0101 delivers stable, real-time data processing to optimize process efficiency and ensure industrial safety.

Technical Parameters ABB UFC912A101 3BHE039426R0101

Parameter Item Parameter Value
Product Model ABB UFC912A101 3BHE039426R0101
Product Type Analog I/O Processor Module (ABB Advant/Symphony DCS)
Analog Input 12 channels, 4-20mA / 0-10V (isolated)
Analog Output 8 channels, 4-20mA / 0-10V (isolated)
Measurement Accuracy ±0.05% full scale
Communication Protocols ABB Masterbus 300, Modbus RTU, RS-485
Power Supply 24VDC (19.2–30VDC operating range)
Power Consumption 7W (typical), 10W (max)
Operating Temperature -10°C to +55°C
Storage Temperature -40°C to +70°C
Protection Rating IP20 (chassis)
Dimensions (W×H×D) 420mm × 135mm × 65mm
Weight 1.6kg
Hot-Swappable Yes
Compatibility ABB Advant/Symphony DCS, Masterbus 300 network

Advantages and Features ABB UFC912A101 3BHE039426R0101

  1. High-Precision Signal Conversion: ABB UFC912A101 3BHE039426R0101 achieves ±0.05% full-scale accuracy, ensuring reliable data acquisition for critical process variables like pressure, temperature, and flow.
  2. Rich Analog I/O Channels: 12 inputs + 8 outputs cover diverse field instrument connection needs, reducing the need for multiple modules and simplifying system architecture.
  3. Seamless ABB Integration: Native compatibility with Advant/Symphony DCS and Masterbus 300 enables plug-and-play deployment, cutting integration time and labor costs.
  4. Hot-Swap Capability: Replace ABB UFC912A101 3BHE039426R0101 without shutting down the DCS, minimizing maintenance-related downtime by over 90% in critical applications.
  5. Industrial-Grade Durability: Wide temperature tolerance and electromagnetic interference (EMI) resistance ensure stable performance in harsh industrial environments like power plants and refineries.

Application Cases

  1. Thermal Power Plant Turbine Control: A 700MW power plant integrated ABB UFC912A101 3BHE039426R0101 to monitor turbine inlet temperature and pressure. Its high precision stabilized turbine operation, reducing fuel consumption by 8% and extending equipment service life by 15%.
  2. Petrochemical Reactor Process Monitoring: A refinery deployed ABB UFC912A101 3BHE039426R0101 to control reactor temperature and catalyst flow. The module’s analog I/O and Modbus compatibility enabled real-time data sharing with DCS, cutting unplanned downtime by 25% and saving $300k annually.
  3. Mining Conveyor Belt Control: A large mining company used ABB UFC912A101 3BHE039426R0101 to regulate conveyor belt speed and tension. Its rugged design withstood dusty, high-vibration conditions, ensuring continuous operation and reducing maintenance frequency by 30%.

Competitor Comparison

Comparison Item ABB UFC912A101 3BHE039426R0101 Siemens S7-400 AI/AO Module Rockwell ControlLogix 1756-OF8
Analog I/O Configuration 12AI + 8AO (isolated) 8AI + 4AO (non-isolated) 8AO (isolated, no AI)
Measurement Accuracy ±0.05% full scale ±0.1% full scale ±0.08% full scale
ABB DCS Compatibility Native (Advant/Symphony) Requires gateway Requires protocol converter
Hot-Swap Support Yes No Optional (extra hardware)
Operating Temperature -10°C to +55°C 0°C to +60°C -25°C to +60°C
Estimated Price (USD) ~$3,200 ~$2,900 ~$2,700

Selection Suggestions

  1. Choose ABB UFC912A101 3BHE039426R0101 for ABB Advant/Symphony DCS users to leverage native integration and Masterbus 300 compatibility.
  2. Select ABB UFC912A101 3BHE039426R0101 when needing high-precision 12AI+8AO analog I/O for critical process control applications.
  3. Opt for ABB UFC912A101 3BHE039426R0101 in industries like power and petrochemicals where hot-swap capability and harsh environment resilience are essential.
  4. Use ABB UFC912A101 3BHE039426R0101 to upgrade legacy analog I/O modules and improve data processing accuracy and system reliability.

Precautions

  1. Ensure ABB UFC912A101 3BHE039426R0101 is paired with compatible ABB Masterbus 300 network components to avoid communication failures.
  2. Configure analog input/output signal types (4-20mA/0-10V) correctly to match field instruments and prevent measurement errors.
  3. Use a regulated 24VDC power supply to prevent voltage spikes from damaging ABB UFC912A101 3BHE039426R0101’s internal circuits.
  4. Follow ABB’s anti-static and hot-swap procedures when installing or replacing the module to protect both the module and connected DCS components.
