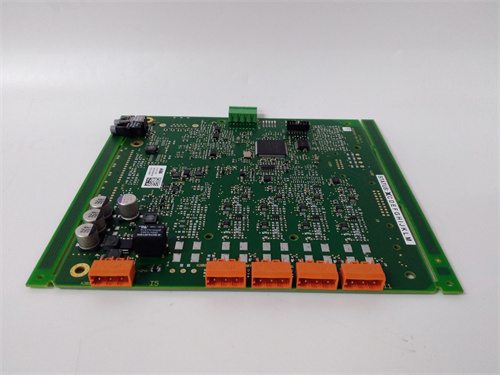

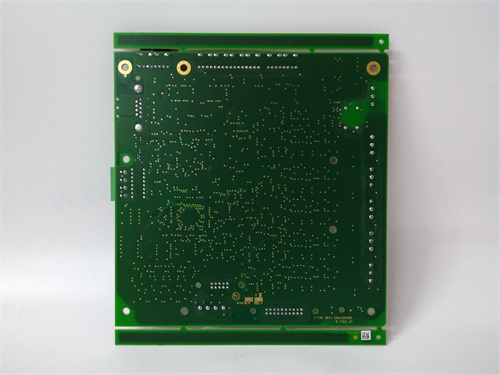

ABB UFC911B107

Description

Product Description

The ABB UFC911B107 is a powerful, high-density digital input module designed for the ABB AC 800M controller family and System 800xA. This module serves as a critical interface for acquiring the status of a large number of field devices, such as limit switches, pushbuttons, relay contacts, and proximity sensors. The ABB UFC911B107 is engineered for reliability and efficiency, packing a significant number of input channels into a single module to optimize space in the I/O rack. For comprehensive technical specifications, wiring diagrams, and configuration manuals, the essential resource is the official ABB Library portal for the ABB UFC911B107. Integrating the UFC911B107 into a control system provides a scalable solution for monitoring extensive discrete field signals in complex industrial processes. Its robust design ensures accurate signal acquisition even in electrically noisy industrial environments, making it a fundamental building block for large-scale automation applications.

Product Parameters

• Manufacturer / Brand: ABB.

• Module Designation: UFC911B107 (High-Density Digital Input Module).

• Function: Group-Isolated Digital Input Module.

• System Compatibility: ABB AC 800M Controller, System 800xA, S800 I/O.

• Number of Channels: Typically provides 32 digital input channels, organized in groups (e.g., 4 groups of 8 channels).

• Input Voltage: Designed for standard DC voltage levels, commonly 24V DC. The module is configured for a specific voltage range per channel group.

• Input Type: Configurable as sinking (NPN) or sourcing (PNP) inputs, providing flexibility for different field wiring conventions.

• Isolation: Provides group isolation between channel groups and channel-to-system isolation for noise immunity and protection.

• Filtering: Includes configurable digital filtering on inputs to suppress contact bounce and electrical noise.

• Diagnostics: Features per-channel status LEDs and provides diagnostic information to the controller for wire break detection and module health.

• Connection: Utilizes a high-density front connector, typically requiring a matching terminal block (e.g., a TBx-01 series terminal block) for field wiring.

• Form Factor: A single-slot module for installation in an S800 I/O station or a compatible AC 800M I/O unit.

• Power Consumption: Draws power from the system backplane; specific current consumption is defined in the datasheet.

Advantages and Features

• High Channel Density: Provides 32 isolated input points in a single module slot, maximizing I/O count and saving valuable rack space, which is crucial for large systems.

• Wiring Flexibility: The sinking/sourcing configurable inputs allow the ABB UFC911B107 to interface seamlessly with both NPN and PNP type field sensors without requiring additional interface components.

• Excellent Noise Immunity: Electrical isolation between channel groups and from the system bus protects the sensitive controller electronics from transients and noise present on field wiring.

• Integrated Diagnostics: Clear per-channel LEDs and system-level diagnostic reporting enable rapid troubleshooting of field device and wiring issues.

• Seamless System Integration: Fully compatible with the ABB 800xA hardware and software ecosystem, automatically recognized and configured within the Control Builder engineering environment.

Application Cases in Industry

• Large Material Handling System: Monitors hundreds of photoelectric sensors, limit switches, and tray present signals on a complex airport baggage handling or warehouse distribution conveyor network.

• Automotive Assembly Line: Acquires status signals from safety gates, clamp sensors, robot tooling stations, and part presence detectors across a large body-in-white or paint shop.

• Bulk Material Processing Plant: Reads the status of numerous level switches, belt alignment switches, and diverter gate positions in a mining or cement production facility.

• Water Treatment Facility: Interfaces with a large array of pump running status feedbacks, valve limit switches, and alarm acknowledgment buttons across multiple process buildings.

• Packaging Machinery Complex: Monitors inputs from multiple machines on a high-speed production line, including jam detection, product presence, and safety interlocks.

Comparison with Competing Products

Competing products are high-density digital input modules from other major DCS/PLC vendors, such as the Siemens SIMATIC ET 200SP DI 32x24VDC HF or the Emerson DeltaV Electronic Marshalling 32-Channel DI Card. The ABB UFC911B107 differentiates itself through its native and optimized integration within the ABB S800 I/O and 800xA environment. Compared to using multiple lower-density modules, the UFC911B107 offers superior space efficiency and reduced wiring complexity. Its primary advantage is for users standardized on the ABB platform, where it offers plug-and-play compatibility, straightforward configuration in Control Builder, and reliable performance that matches the controller’s lifecycle.

Selection Suggestions and Precautions

• Selection Suggestions:

  1. Select the ABB UFC911B107 to add high-density digital input capacity to an existing ABB S800/AC 800M system or when designing a new system with a large number of discrete signals.

  2. Plan channel assignments by grouping signals with the same voltage level and type (sinking/sourcing) within the same configurable group on the module to simplify configuration.

  3. Ensure you have the correct mating terminal block (a specific TBx-01 model) for the UFC911B107 to connect field wiring.

• Precautions:

  1. Group Voltage Configuration: The input voltage range (e.g., 24V DC) is configured per group of channels (often 8 channels). All inputs within a group must be wired to the same voltage source.

  2. Field Power Supply Quality: Use a clean, regulated, and isolated DC power supply for the field sensors. A noisy or unstable supply can cause erratic input readings across multiple channels.

  3. Correct Wiring Mode: Determine if your field devices are NPN (sinking) or PNP (sourcing) outputs and ensure the corresponding wiring and group configuration on the UFC911B107 is correct. Refer to the wiring diagram in the manual.

  4. Fusing: Consider adding external fuses on the common supply line for each channel group to protect the module wiring in case of a field short circuit.

  5. Sourcing and Accessories: Source the ABB UFC911B107 and its mandatory terminal block from authorized ABB distributors. Using incorrect or non-genuine terminal blocks can lead to connection failures. During configuration in Control Builder, correctly assign the module type and verify the I/O mapping to the controller’s tags.
