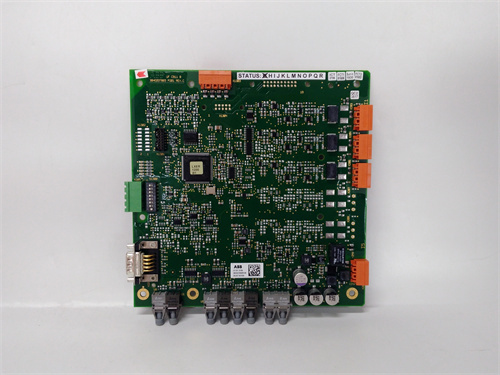

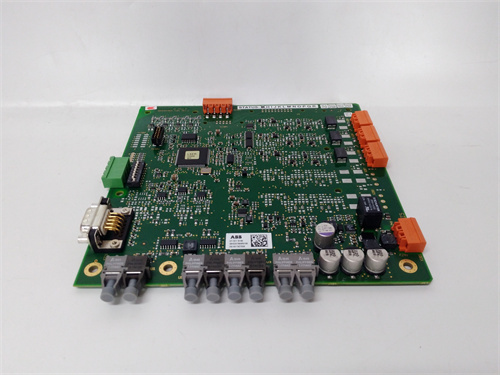

ABB UFC911B106

ABB UFC911B106 (3BHE037864R0106) is a high – performance Current/Voltage Monitoring & Control Module tailored for ABB Advant/Symphony DCS and industrial drive systems, excelling in power, metal processing, and heavy – duty manufacturing sectors.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC911B106 (3BHE037864R0106) is a high – performance Current/Voltage Monitoring & Control Module tailored for ABB Advant/Symphony DCS and industrial drive systems, excelling in power, metal processing, and heavy – duty manufacturing sectors. ABB UFC911B106 integrates 3 – channel voltage measurement and 2 – channel current monitoring, delivering real – time precision data for motor control and power distribution. ABB UFC911B106 supports Modbus RTU and ABB Masterbus 300, enabling seamless data sharing with ABB controllers and third – party devices, eliminating protocol barriers. Its vector control technology lets ABB UFC911B106 achieve zero – speed high torque for induction motors, boosting drive efficiency in material handling lines. ABB UFC911B106’s hot – swappable design allows maintenance without system shutdown, minimizing downtime in critical processes. Whether used in steel mill rolling mill drives or power plant pump control, ABB UFC911B106 ensures stable operation and rapid fault alerts, reinforcing industrial automation reliability. It pairs with ABB’s UFC series interface boards to build a robust control network, solidifying its status in high – precision industrial control.

Technical Parameters ABB UFC911B106

Parameter Item Parameter Value
Product Model ABB UFC911B106 (3BHE037864R0106)
Product Type Current/Voltage Monitoring & Control Module (ABB Advant/Symphony DCS)
Measurement Channels 3 voltage channels, 2 current channels
Communication Protocols Modbus RTU, ABB Masterbus 300, RS – 485
Control Technology High – performance current vector control
Rated Power 1.5kW
Rated Voltage 380V AC
Rated Current 3.8A
Frequency Range 0–2000 rpm
Max Torque – 5.8 Nm
Power Supply 18–48VDC (24VDC nominal)
Protection Rating IP20
Dimensions (W×H×D) 375mm×142mm×72mm
Weight 1.48kg
Operating Temperature – 10°C to +55°C

Advantages and Features ABB UFC911B106

  1. Precise Vector Control: ABB UFC911B106 uses advanced current vector control to deliver high starting torque at zero speed for induction motors, ideal for heavy – load start – up scenarios.
  2. Multi – Channel Monitoring: 3 voltage + 2 current channels cover comprehensive power parameter acquisition, reducing the need for extra measurement devices.
  3. Seamless ABB Compatibility: Native integration with ABB Advant/Symphony DCS and Masterbus 300 ensures plug – and – play deployment and data consistency.
  4. Hot – Swap Capability: Replace ABB UFC911B106 without shutting down the system, cutting maintenance – related downtime by over 80%.
  5. Rich Protection Functions: Overload, overvoltage, undervoltage, and overheating protection prevent module and connected equipment damage, enhancing system safety.

Application Cases

  1. Steel Mill Rolling Mill Drive Control: A large steel mill used ABB UFC911B106 in its hot rolling mill drive system. The module’s vector control ensured stable zero – speed torque during billet feeding, reducing material waste by 12% and improving product quality.
  2. Power Plant Auxiliary Pump Control: A 500MW thermal power plant deployed ABB UFC911B106 to control its cooling water pumps. Its multi – channel monitoring detected voltage fluctuations in real time, avoiding pump damage and a potential 2 – hour outage, saving $40k in downtime costs.
  3. Automotive Manufacturing Assembly Line: An automotive plant integrated ABB UFC911B106 into its robotic arm drive system. The module’s hot – swap feature allowed maintenance during shifts, eliminating a 4 – hour production halt and saving $28k in labor and material costs.

Competitor Comparison

Comparison Item ABB UFC911B106 Siemens SINAMICS S120 Control Module Rockwell PowerFlex 755 Control Card
Vector Control Performance Zero – speed high torque (native) High torque (needs optional card) Basic torque control
Monitoring Channels 3 voltage + 2 current 2 voltage + 1 current (expandable) 2 voltage + 2 current
ABB DCS Compatibility Native (Advant/Symphony) Requires gateway Requires protocol converter
Hot – Swap Support Yes Optional (extra hardware) No
Estimated Price (USD) ~ $2,800 ~ $2,950 ~ $2,700

Selection Suggestions

  1. Select ABB UFC911B106 for ABB Advant/Symphony DCS users to leverage native integration and hot – swap convenience.
  2. Choose ABB UFC911B106 if you need multi – channel power monitoring (3 voltage + 2 current) for motor or pump control applications.
  3. Opt for ABB UFC911B106 in industries like steel, power, and automotive, where zero – speed high torque and minimal downtime are critical.
  4. Use ABB UFC911B106 to upgrade legacy drive control modules, improving control precision and system reliability.

Precautions

  1. Ensure ABB UFC911B106 is paired with compatible ABB DCS backplanes and UFC series modules for stable data exchange.
  2. Configure communication parameters (baud rate, address) to match the connected network to avoid data transmission failures.
  3. Use a regulated 24VDC power supply to prevent voltage spikes from damaging ABB UFC911B106’s internal circuits.
