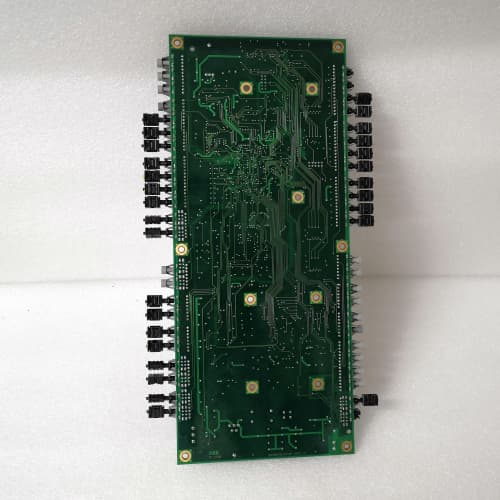

ABB UFC760BE142 3BHE004573R0142 is a 16 – channel digital output (DO) module optimized for ABB Advant/Symphony DCS, dedicated to converting digital control commands into 24V DC solid – state output signals to drive industrial loads such as contactors, solenoid valves, and indicator lights.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC760BE142 3BHE004573R0142 is a 16 – channel digital output (DO) module optimized for ABB Advant/Symphony DCS, dedicated to converting digital control commands into 24V DC solid – state output signals to drive industrial loads such as contactors, solenoid valves, and indicator lights. ABB UFC760BE142 3BHE004573R0142 features 16 fully isolated channels with 2A per – channel current capacity, 1000V DC channel – to – channel isolation, and Masterbus 300 protocol support for seamless real – time data exchange with DCS controllers. ABB UFC760BE142 3BHE004573R0142 uses a 24V DC (19.2-30V DC) power supply with typical 8W power consumption, ensuring energy – efficient operation. ABB UFC760BE142 3BHE004573R0142 has a modular design for easy installation and replacement, and it is a direct upgrade for legacy UFC760BE modules, offering enhanced stability and compatibility. ABB UFC760BE142 3BHE004573R0142’s solid – state output ensures fast response times (≤1ms) for time – critical control tasks, and ABB UFC760BE142 3BHE004573R0142 excels in harsh industrial environments with strong anti – interference performance, making it suitable for power, petrochemical, and metallurgical automation.

Technical Parameters ABB UFC760BE142 3BHE004573R0142

Parameter Item Parameter Value
Product Model ABB UFC760BE142 3BHE004573R0142
Product Type 16 – channel digital output (DO) module (solid – state)
Core Function Digital signal output, load driving, Masterbus 300 communication
Output Signal 24V DC solid – state
Number of Channels 16 (fully isolated)
Per – Channel Current Capacity 2A
Isolation 1000V DC (channel – to – channel)
Power Supply 24V DC (19.2-30V DC)
Power Consumption 8W (typical)
Communication Protocol Masterbus 300
Response Time ≤1ms
Operating Temperature – 10°C to +55°C
Storage Temperature – 40°C to +70°C
Mounting Standard DIN – rail
Weight 0.8 kg (approx.)

Advantages and Features ABB UFC760BE142 3BHE004573R0142

  1. High – Speed Response: ABB UFC760BE142 3BHE004573R0142’s solid – state output offers ≤1ms response time, ideal for time – sensitive industrial control tasks.
  2. High – Density & Isolated Channels: 16 isolated channels of ABB UFC760BE142 3BHE004573R0142 with 2A per – channel capacity meet multi – load control needs and avoid cross – talk.
  3. Strong Anti – Interference: 1000V DC isolation of ABB UFC760BE142 3BHE004573R0142 eliminates electrical noise in harsh industrial settings.
  4. Seamless DCS Integration: Masterbus 300 protocol of ABB UFC760BE142 3BHE004573R0142 enables real – time data exchange with ABB Advant/Symphony DCS.
  5. Easy Maintenance & Upgrade: Modular design and legacy UFC760BE compatibility of ABB UFC760BE142 3BHE004573R0142 reduce downtime and integration costs.

Application Cases ABB UFC760BE142 3BHE004573R0142

  1. Thermal Power Plant Auxiliary System Control: A 500MW power plant used ABB UFC760BE142 3BHE004573R0142 to control 40 pump and fan contactors. Its fast response reduced start – up time by 25% and fault – related downtime by 30%.
  2. Petrochemical Refinery Safety Valve Control: A refinery integrated ABB UFC760BE142 3BHE004573R0142 into its Advant DCS to drive 32 safety solenoid valves. The module’s isolation performance prevented signal interference, ensuring reliable emergency shutdowns.
  3. Metallurgical Rolling Mill Lubrication System Control: A steel mill deployed ABB UFC760BE142 3BHE004573R0142 to control 24 lubrication pump solenoid valves. Real – time Masterbus 300 communication improved lubrication timing accuracy by 20%.

Competitor Comparison

Feature ABB UFC760BE142 3BHE004573R0142 Siemens S7-1500 DO 16x24V DC Honeywell HC900 DO Module
Channel Count 16 (1000V isolated) 16 (non – isolated) 16 (1000V isolated)
Per – Channel Current 2A 1.5A 2A
Output Type Solid – state (≤1ms response) Solid – state (≤2ms response) Relay (≤5ms response)
Protocol Masterbus 300 Profinet Modbus
ABB DCS Compatibility Seamless (Advant/Symphony) No No
Legacy Replacement Yes (UFC760BE series) No No
Price Range Mid Mid Mid – High

Selection Suggestions

  1. Choose ABB UFC760BE142 3BHE004573R0142 for ABB Advant/Symphony DCS projects needing 16 – channel solid – state DO with 2A capacity and Masterbus 300 protocol.
  2. Prioritize ABB UFC760BE142 3BHE004573R0142 for time – critical control tasks requiring ≤1ms response and 1000V isolation.
  3. Select ABB UFC760BE142 3BHE004573R0142 when upgrading legacy UFC760BE modules to reduce integration and maintenance costs.

Precautions

  1. Use ABB – certified terminal blocks for ABB UFC760BE142 3BHE004573R0142 to maintain isolation and communication stability.
  2. Do not exceed 2A per channel to avoid damaging ABB UFC760BE142 3BHE004573R0142’s output circuits.
  3. Keep the power supply voltage within 19.2-30V DC for reliable operation of ABB UFC760BE142 3BHE004573R0142.
  4. Properly ground ABB UFC760BE142 3BHE004573R0142 during installation to enhance anti – interference capability.
  5. Avoid installing ABB UFC760BE142 3BHE004573R0142 in humid, dusty, or corrosive areas beyond its operating temperature range.
