ABB UFC760BE141 3BHE004573R0141 is a high – performance digital output (DO) module tailored for ABB Advant/Symphony DCS, specialized in converting digital control commands from controllers into 24V DC relay or solid – state output signals to drive industrial loads like contactors, solenoid valves, and indicator lamps. As a core I/O component,

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

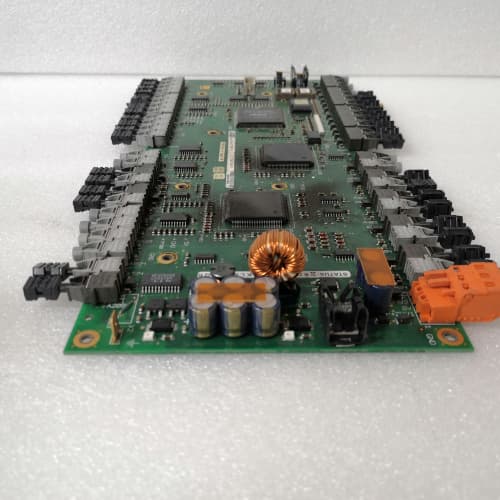

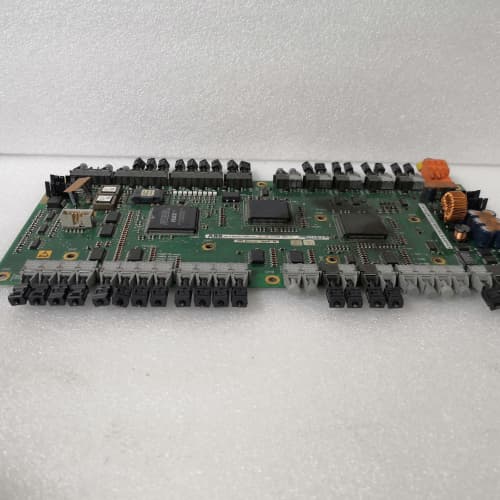

ABB UFC760BE141 3BHE004573R0141 is a high – performance digital output (DO) module tailored for ABB Advant/Symphony DCS, specialized in converting digital control commands from controllers into 24V DC relay or solid – state output signals to drive industrial loads like contactors, solenoid valves, and indicator lamps. As a core I/O component, ABB UFC760BE141 3BHE004573R0141 features 16 isolated DO channels with 2A per – channel current capacity, ensuring stable load driving in harsh industrial environments. ABB UFC760BE141 3BHE004573R0141 supports Masterbus 300 protocol for seamless real – time data exchange with DCS controllers, and its 24V DC (19.2-30V DC) power supply with typical 8W power consumption enables energy – efficient long – term operation. ABB UFC760BE141 3BHE004573R0141 has channel – to – channel isolation (1000V DC) to avoid electrical interference and cross – talk, which is crucial for safe and reliable industrial control. ABB UFC760BE141 3BHE004573R0141 also adopts a modular design for easy installation and quick replacement, and ABB UFC760BE141 3BHE004573R0141 is a drop – in replacement for legacy UFC760BE modules, providing enhanced stability and compatibility. The compact structure of ABB UFC760BE141 3BHE004573R0141 saves cabinet space, making it widely used in power generation, petrochemical, and metallurgical industries.

Technical Parameters ABB UFC760BE141 3BHE004573R0141

Parameter Item Parameter Value
Product Model ABB UFC760BE141 3BHE004573R0141
Product Type 16 – channel digital output (DO) module
Core Function Digital signal output, load driving, Masterbus 300 communication
Output Type 24V DC relay/solid – state
Number of Channels 16 (isolated)
Per – Channel Current Capacity 2A
Isolation Channel – to – channel: 1000V DC
Power Supply 24V DC (nominal), 19.2-30V DC (operating range)
Power Consumption 8W (typical)
Communication Protocol Masterbus 300
Operating Temperature – 10°C to +55°C
Storage Temperature – 40°C to +70°C
Mounting Standard DIN – rail
Weight 0.8 kg (approx.)

Advantages and Features ABB UFC760BE141 3BHE004573R0141

  1. High – Density Channel Design: ABB UFC760BE141 3BHE004573R0141 has 16 isolated DO channels to meet multi – load control requirements in industrial processes.
  2. Strong Load – Driving Ability: 2A per – channel current capacity of ABB UFC760BE141 3BHE004573R0141 can drive various industrial loads reliably.
  3. Excellent Anti – Interference Performance: 1000V DC isolation of ABB UFC760BE141 3BHE004573R0141 eliminates electrical noise and cross – talk, ensuring control signal stability.
  4. Seamless DCS Integration: Masterbus 300 support of ABB UFC760BE141 3BHE004573R0141 enables real – time data exchange with ABB Advant/Symphony DCS.
  5. Easy Maintenance & Upgrade: Modular design and legacy module replacement capability of ABB UFC760BE141 3BHE004573R0141 reduce downtime and upgrade costs.

Application Cases ABB UFC760BE141 3BHE004573R0141

  1. Thermal Power Plant Auxiliary Equipment Control: A 600MW power plant used ABB UFC760BE141 3BHE004573R0141 to control 48 fan and pump contactors. Its isolation performance reduced electrical fault – related downtime by 30%.
  2. Petrochemical Tank Farm Valve Control: A refinery integrated ABB UFC760BE141 3BHE004573R0141 into its Advant DCS to drive 32 solenoid valves for tank farm liquid transfer. The module’s load capacity improved valve response speed by 20%.
  3. Metallurgical Furnace Ignition System Control: A steel mill deployed ABB UFC760BE141 3BHE004573R0141 to control 24 furnace ignition devices. Its Masterbus 300 communication ensured real – time ignition control, reducing fuel waste by 18%.

Competitor Comparison

Feature ABB UFC760BE141 3BHE004573R0141 Siemens S7-1500 DO 16x24V DC Honeywell HC900 DO Module
Channel Count 16 (isolated) 16 (non – isolated) 16 (isolated)
Per – Channel Current 2A 1.5A 2A
Isolation 1000V DC 500V DC 1000V DC
Communication Protocol Masterbus 300 Profinet Modbus
ABB DCS Compatibility Yes (seamless) No No
Legacy Replacement Yes (UFC760BE series) No No
Price Range Mid Mid Mid – High

Selection Suggestions

  1. Select ABB UFC760BE141 3BHE004573R0141 for ABB Advant/Symphony DCS projects requiring 16 – channel DO with 2A per – channel capacity and Masterbus 300 communication.
  2. Prioritize ABB UFC760BE141 3BHE004573R0141 for applications needing 1000V isolation and reliable load driving in noisy industrial environments.
  3. Choose ABB UFC760BE141 3BHE004573R0141 when upgrading legacy DO modules to leverage its high channel density and easy maintenance features.

Precautions

  1. Use ABB – certified terminal blocks for ABB UFC760BE141 3BHE004573R0141 to maintain signal isolation and communication stability.
  2. Do not exceed the 2A per – channel current limit of ABB UFC760BE141 3BHE004573R0141 to prevent damage to output circuits.
  3. Ensure the power supply of ABB UFC760BE141 3BHE004573R0141 is within 19.2-30V DC to avoid power circuit damage.
  4. Properly ground ABB UFC760BE141 3BHE004573R0141 during installation to enhance anti – interference ability.
  5. Avoid installing ABB UFC760BE141 3BHE004573R0141 in humid, dusty, or corrosive environments, and keep it within the specified operating temperature range.
