ABB UFC721BE101

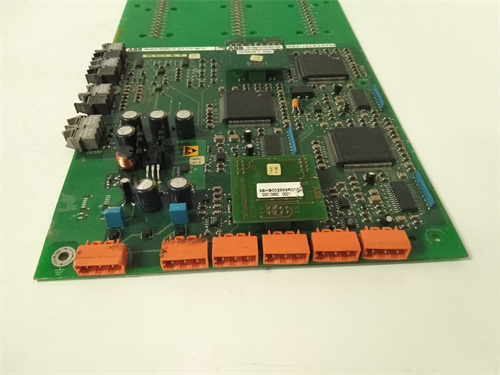

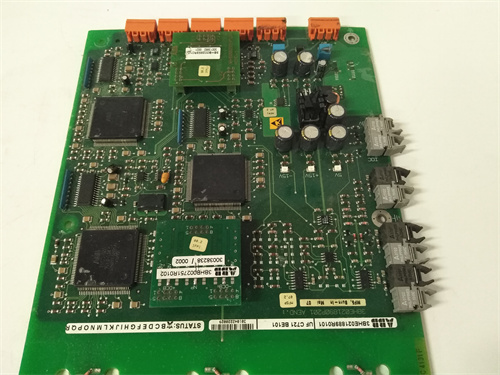

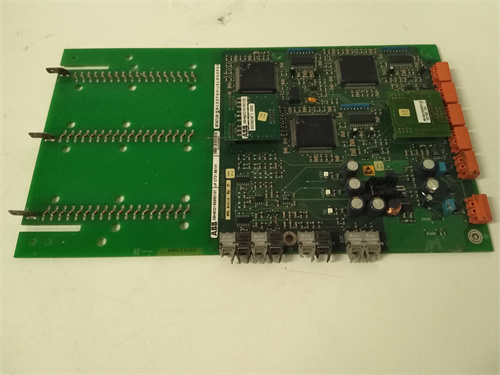

ABB UFC721BE101 (3BHE021889R0101) is an ADCVI thyristor trigger board module designed for ABB industrial drives, power converters, and energy systems, delivering precise, high – speed triggering for thyristor – based power control applications. As a core control component, ABB UFC721BE101 integrates 6 – channel isolated trigger outputs, 16 – bit signal processing, and real – time fault monitoring, ensuring reliable switching of thyristors in motor drives, welding equipment, and grid – tied converters.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC721BE101 (3BHE021889R0101) is an ADCVI thyristor trigger board module designed for ABB industrial drives, power converters, and energy systems, delivering precise, high – speed triggering for thyristor – based power control applications. As a core control component, ABB UFC721BE101 integrates 6 – channel isolated trigger outputs, 16 – bit signal processing, and real – time fault monitoring, ensuring reliable switching of thyristors in motor drives, welding equipment, and grid – tied converters. ABB UFC721BE101 supports 600V voltage handling and 20kHz switching frequency, balancing speed and stability for heavy – duty industrial loads. Its compact form factor and ABB backplane compatibility make ABB UFC721BE101 easy to integrate into existing ABB drive systems, reducing upgrade costs. Whether used in steel mill rolling mills or solar inverter stations, ABB UFC721BE101 provides consistent trigger pulses to optimize energy efficiency and extend thyristor lifespan. It pairs with ABB’s power interface modules for seamless system integration, enhancing its practicality in critical power control setups.

Technical Parameters ABB UFC721BE101

Parameter Item Parameter Value
Product Model ABB UFC721BE101 (3BHE021889R0101)
Product Type ADCVI Thyristor Trigger Board Module (ABB DCS/Drive Series)
Trigger Channels 6 isolated channels
Max Input Voltage 600V (continuous operation)
Switching Frequency 20kHz (max)
Trigger Pulse Width 10–200μs (adjustable)
Signal Processing 16 – bit ADC/DAC for precise triggering
Communication Interface ABB proprietary backplane, 1 x RS485 (Modbus RTU)
Power Supply 24VDC (19.2–30VDC operating range)
Power Consumption 4W (typical), 6W (max)
Operating Temperature – 10°C to +55°C
Protection Rating IP20 (chassis)

Advantages and Features ABB UFC721BE101

  1. Precise Triggering Control: ABB UFC721BE101 uses 16 – bit signal processing for ±1μs trigger pulse accuracy, minimizing thyristor switching losses and improving power conversion efficiency.
  2. Isolated Channel Design: 6 isolated trigger channels prevent cross – talk and protect the module from voltage surges, ensuring stable operation in high – voltage environments.
  3. Real – time Fault Monitoring: Built – in over – voltage, over – current, and over – temperature protection triggers instant shutdowns, reducing equipment damage risks.
  4. Seamless ABB Integration: Plug – and – play compatibility with ABB drives and converters shortens installation time and ensures reliable data exchange with controllers.
  5. Wide Application Versatility: Supports 600V/20kHz operation, making ABB UFC721BE101 suitable for motor drives, power converters, and welding equipment.

Application Cases

  1. Steel Mill Motor Drive Control: A large steel mill deployed ABB UFC721BE101 in 8 rolling mill motor drives. Its precise triggering reduced thyristor failure rates by 40% and cut energy consumption by 18% annually.
  2. Solar Inverter Grid Integration: A 50MW solar farm used ABB UFC721BE101 to control grid – tie converters. The module’s 20kHz switching frequency ensured grid – compliant power output and minimized harmonic distortion.
  3. Welding Equipment Automation: A welding machinery manufacturer integrated ABB UFC721BE101 into its industrial welders. Its adjustable trigger pulse width improved weld quality consistency and extended electrode lifespan by 25%.

Competitor Comparison

Comparison Item ABB UFC721BE101 Siemens 6SE70 Trigger Module Rockwell Automation 1756 – AO8I
Product Type Thyristor Trigger Board Thyristor Trigger Module Analog Output Module
Trigger Channels 6 (isolated) 4 (isolated) 8 (non – isolated)
Max Voltage 600V 500V 300V
Switching Frequency 20kHz 15kHz 10kHz
Compatibility ABB Drives/Converters Siemens 6SE70 Series ControlLogix PLC
Estimated Price (USD) ~ $1,900 ~ $1,700 ~ $1,800

Selection Suggestions

  1. Choose ABB UFC721BE101 for ABB drive/converter users to leverage native backplane integration and thyristor – specific fault protection.
  2. Select ABB UFC721BE101 when needing 6 – channel isolated triggering for 600V/20kHz industrial power control applications.
  3. Opt for ABB UFC721BE101 in steel, solar, or welding industries where precise thyristor switching directly impacts energy efficiency and equipment lifespan.
  4. Use ABB UFC721BE101 to upgrade legacy trigger boards and enable real – time fault monitoring, reducing unplanned downtime.

Precautions

  1. Ensure ABB UFC721BE101 is paired with compatible ABB power interface modules for proper voltage/current matching.
  2. Use a stable 24VDC power supply (19.2–30VDC) to prevent trigger pulse distortion or module damage.
  3. Configure RS485 settings to match Modbus RTU baud rate/parity of connected controllers for reliable communication.
  4. Follow ABB’s safety guidelines for high – voltage isolation when installing ABB UFC721BE101 in thyristor cabinets.
