ABB UFC719AE101 3BHB003041R0101

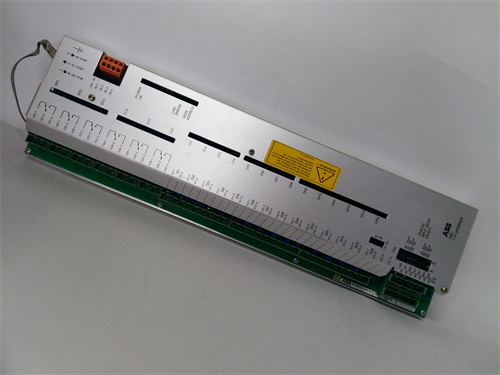

ABB UFC719AE101 3BHB003041R0101 (IOEC I/O Control Board) is a core I/O interface module for ABB Advant/Symphony DCS, serving as a reliable bridge between controllers and field devices in power, oil & gas, and chemical industries. ABB UFC719AE101 3BHB003041R0101 enables seamless data exchange via ABB proprietary buses and standard protocols like Modbus RTU/TCP, simplifying integration with legacy and smart I/O devices.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC719AE101 3BHB003041R0101 (IOEC I/O Control Board) is a core I/O interface module for ABB Advant/Symphony DCS, serving as a reliable bridge between controllers and field devices in power, oil & gas, and chemical industries. ABB UFC719AE101 3BHB003041R0101 enables seamless data exchange via ABB proprietary buses and standard protocols like Modbus RTU/TCP, simplifying integration with legacy and smart I/O devices. ABB UFC719AE101 3BHB003041R0101 features 24VDC operation, dual Ethernet ports, and industrial – grade durability, ensuring stable I/O control in harsh industrial settings. Its plug – in design and ABB backplane compatibility make ABB UFC719AE101 3BHB003041R0101 ideal for system upgrades or new DCS deployments. Whether linking transmitters, actuators, or third – party controllers, ABB UFC719AE101 3BHB003041R0101 delivers real – time, low – latency data to optimize process control and reduce downtime. It pairs with ABB’s Advant backplane components for quick installation, enhancing its usability in critical industrial setups.

Technical Parameters ABB UFC719AE101 3BHB003041R0101

Parameter Item Parameter Value
Product Model ABB UFC719AE101 3BHB003041R0101
Product Type IOEC I/O Control Board (Advant/Symphony DCS)
Communication Interfaces 2 x 10/100 Mbps Ethernet (RJ45), 1 x RS485 (Modbus RTU/ PROFIBUS DP), ABB proprietary backplane port
Supported Protocols Modbus RTU/TCP, PROFIBUS DP, ABB Advant Fieldbus, Symphony I/O Bus
Power Supply 24VDC (19.2 – 30VDC operating range)
Power Consumption 5W (typical), 7W (max)
Operating Temperature – 10°C to +55°C
Storage Temperature – 40°C to +70°C
Isolation Channel – to – backplane, channel – to – ground (250V AC)
Dimensions 45.7cm x 5.1cm x 15.2cm (18.0″ x 2.0″ x 6.0″)
Weight 1.2kg (2 lbs 9.0 oz)
Protection Rating IP20 (chassis)

Advantages and Features ABB UFC719AE101 3BHB003041R0101

  1. Multi – Protocol Compatibility: ABB UFC719AE101 3BHB003041R0101 supports ABB proprietary and industry – standard protocols, eliminating extra converters and simplifying system integration.
  2. Dual Ethernet & Serial Connectivity: 2 x 10/100 Mbps Ethernet and RS485 ports enable flexible connection to networks and field devices.
  3. Industrial – Grade Reliability: 24VDC wide – range power, – 10°C to +55°C operation, and vibration resistance (5 – 150Hz, 0.15mm amplitude) ensure long – term stability.
  4. Seamless ABB DCS Integration: Plug – in compatibility with Advant/Symphony backplanes reduces setup time and ensures reliable data flow.
  5. Low – Latency Data Transmission: ≤10ms latency for critical signals meets real – time process control needs.

Application Cases

  1. Thermal Power Plant I/O Expansion: A 1000MW power plant used ABB UFC719AE101 3BHB003041R0101 to connect 20+ temperature/pressure transmitters to its Symphony DCS. The module’s multi – protocol support integrated legacy and new devices, cutting integration time by 30% and avoiding a 2 – day shutdown.
  2. Oil Refinery Process Monitoring: A refinery deployed ABB UFC719AE101 3BHB003041R0101 to link its Advant controller with Modbus – enabled flow meters. Its low – latency data transfer ensured precise batch blending, reducing product waste by 12%.
  3. Chemical Plant DCS Upgrade: A chemical manufacturer replaced outdated I/O boards with ABB UFC719AE101 3BHB003041R0101. The module’s plug – and – play design minimized downtime, and its diagnostic features detected a faulty actuator early, preventing a $80k production loss.

Competitor Comparison

Comparison Item ABB UFC719AE101 3BHB003041R0101 Siemens S7 – 400 CP 443 – 1 Honeywell TDC3000 I/O Link Module
Compatibility ABB Advant/Symphony DCS Siemens S7 – 400 PLC Honeywell TDC3000 DCS
Communication Ethernet, RS485 (Modbus), ABB backplane PROFINET, Ethernet Honeywell Universal I/O Bus
Operating Temp – 10°C to +55°C 0°C to +60°C – 5°C to +50°C
Power Supply 19.2 – 30VDC 24VDC 24VDC
Power Consumption 5W (typical) 8W (typical) 6W (typical)
Estimated Price (USD) ~ $2,100 ~ $1,900 ~ $2,000

Selection Suggestions

  1. Choose ABB UFC719AE101 3BHB003041R0101 for ABB Advant/Symphony DCS users to leverage native backplane integration and multi – protocol support.
  2. Select ABB UFC719AE101 3BHB003041R0101 when integrating ABB controllers with Modbus/PROFIBUS field devices to avoid extra protocol converters.
  3. Opt for ABB UFC719AE101 3BHB003041R0101 in power, oil & gas, or chemical industries needing reliable I/O control in harsh industrial environments.
  4. Use ABB UFC719AE101 3BHB003041R0101 for DCS upgrades to minimize downtime and ensure seamless data transition.

Precautions

  1. Ensure ABB UFC719AE101 3BHB003041R0101 is paired with compatible ABB Advant/Symphony backplane components for proper communication.
  2. Use 19.2 – 30VDC stable power to prevent signal drift or module damage.
  3. Configure RS485/Ethernet settings correctly to match field device protocols and avoid communication failures.
  4. Follow ABB’s installation guidelines for backplane connection to ensure reliable I/O data transmission.
