ABB UFC719AE101

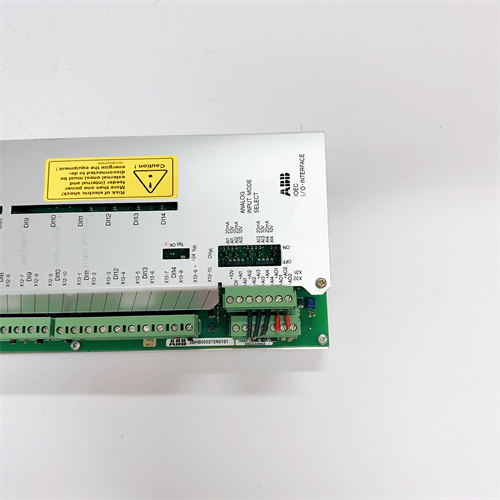

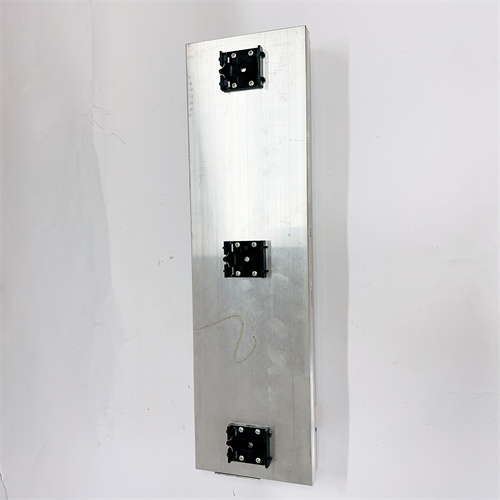

ABB UFC719AE101 (also known as 3BHB003041R0101, IOEC I/O Control Board) is a core I/O control module for ABB Advant/Symphony DCS and ACS 1000/2000 medium – voltage drives, serving as a critical interface between controllers and field I/O devices in heavy – duty industrial automation.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC719AE101 (also known as 3BHB003041R0101, IOEC I/O Control Board) is a core I/O control module for ABB Advant/Symphony DCS and ACS 1000/2000 medium – voltage drives, serving as a critical interface between controllers and field I/O devices in heavy – duty industrial automation. ABB UFC719AE101 supports Masterbus 300 communication protocol, enabling seamless data exchange between the DCS controller and up to 16 I/O modules, which guarantees real – time and reliable transmission of process control signals. With a compact design and a net weight of 0.71 kg, ABB UFC719AE101 is easy to install in standard control cabinets, and its modular structure facilitates quick replacement and maintenance during on – site operations. ABB UFC719AE101 operates on a 24V DC power supply (19.2-30V DC range), with a typical power consumption of 5W and a maximum of 7W, which is energy – efficient and suitable for long – term stable operation in industrial environments. ABB UFC719AE101 also has 2 Ethernet ports (10/100 Mbps, RJ45) for TCP/IP communication, supporting remote monitoring and diagnostics, thus reducing the difficulty of on – site management. The robust industrial – grade design of ABB UFC719AE101 allows it to work normally in the temperature range of – 10°C to +55°C, making it a reliable choice for critical control links in power generation, metallurgy, and petrochemical industries.

Technical Parameters ABB UFC719AE101

Parameter Item Parameter Value
Product Model ABB UFC719AE101 (3BHB003041R0101)
Product Type IOEC I/O Control Board
Core Function I/O signal management, Masterbus 300 communication, controller – I/O interface
Supported Protocols Masterbus 300, TCP/IP (via Ethernet)
Max I/O Modules Supported 16
Communication Ports 2 x 10/100 Mbps Ethernet (RJ45)
Power Supply 24V DC (nominal), 19.2-30V DC (operating range)
Power Consumption 5W (typical), 7W (max)
Operating Temperature – 10°C to +55°C
Storage Temperature – 40°C to +70°C
Net Weight 0.71 kg
Compatible Systems ABB Advant/Symphony DCS, ABB ACS 1000/2000 MV Drives
Mounting Standard DIN – rail

Advantages and Features ABB UFC719AE101

  1. Seamless System Compatibility: ABB UFC719AE101 integrates perfectly with ABB’s Advant/Symphony DCS and ACS medium – voltage drives, minimizing system integration time and costs.
  2. Efficient Communication: The Masterbus 300 protocol and dual Ethernet ports of ABB UFC719AE101 ensure high – speed, real – time data transmission, meeting the requirements of critical process control.
  3. High I/O Expansion Capacity: Supporting up to 16 I/O modules, ABB UFC719AE101 offers flexible expansion options for different – scale automation projects.
  4. Energy – Saving & Compact Design: With a typical power consumption of only 5W and a lightweight structure, ABB UFC719AE101 reduces energy waste and control cabinet space occupation.
  5. Reliable Industrial Performance: The wide operating voltage range and temperature adaptability of ABB UFC719AE101 ensure stable operation in harsh industrial environments.

Application Cases ABB UFC719AE101

  1. Thermal Power Plant DCS Expansion: A 500MW thermal power plant used ABB UFC719AE101 to expand its Symphony DCS I/O system, connecting 64 temperature and pressure transmitters. The module’s Masterbus 300 communication reduced data transmission delay by 40%, and its expansion capacity cut the number of required control boards by 30%.
  2. MV Drive Control in Steel Mill: A large steel mill deployed ABB UFC719AE101 in its ACS 2000 medium – voltage drive system to control 8 rolling mill motors. The module’s real – time communication capability ensured precise speed regulation of the motors, improving production line efficiency by 22%.
  3. Petrochemical Process Monitoring: A petrochemical plant integrated ABB UFC719AE101 into its Advant DCS to manage 96 flow and level I/O points. The dual Ethernet ports enabled remote diagnostics, reducing unplanned downtime caused by I/O failures by 28%.

Competitor Comparison

Feature ABB UFC719AE101 Siemens S7-400 CP 443-1 Rockwell ControlLogix 1756 – EN2T
Communication Protocol Masterbus 300, TCP/IP Profinet, MPI EtherNet/IP
Max I/O Expansion 16 modules 8 modules 12 modules
Power Consumption 5W (typical) 8W (typical) 6W (typical)
Compatible Systems ABB Advant/Symphony, ACS 1000/2000 Siemens S7-400 Rockwell ControlLogix
Ethernet Ports 2 (10/100 Mbps) 1 (10/100 Mbps) 2 (10/100/1000 Mbps)
Operating Temperature – 10°C to +55°C 0°C to +60°C 0°C to +60°C
Price Range Mid Mid – High High

Selection Suggestions

  1. Choose ABB UFC719AE101 for upgrading or expanding ABB Advant/Symphony DCS and ACS 1000/2000 MV drive systems to ensure seamless compatibility and reliable I/O control.
  2. Prioritize ABB UFC719AE101 for projects requiring connection to up to 16 I/O modules, as its high expansion capacity can reduce the number of control boards and save costs.
  3. Select ABB UFC719AE101 for industrial sites with 24V DC power supply and demanding real – time data transmission, leveraging its energy – saving performance and efficient communication.

Precautions

  1. Use ABB UFC719AE101 with ABB – certified I/O modules only to avoid communication failures or module damage due to incompatibility.
  2. Ensure the power supply voltage of ABB UFC719AE101 is within 19.2-30V DC to prevent damage to the power circuit from over – voltage or under – voltage.
  3. Ground the module properly during the installation of ABB UFC719AE101 to enhance anti – interference ability and signal stability.
  4. Perform regular communication link checks on ABB UFC719AE101 via Masterbus 300 and Ethernet to ensure real – time data transmission.
  5. Avoid installing ABB UFC719AE101 in environments with excessive dust, moisture, or corrosive gas, and keep it within the specified operating temperature range.
