ABB UFC718AE101 HIEE3009936R0101

Description

Product Overview

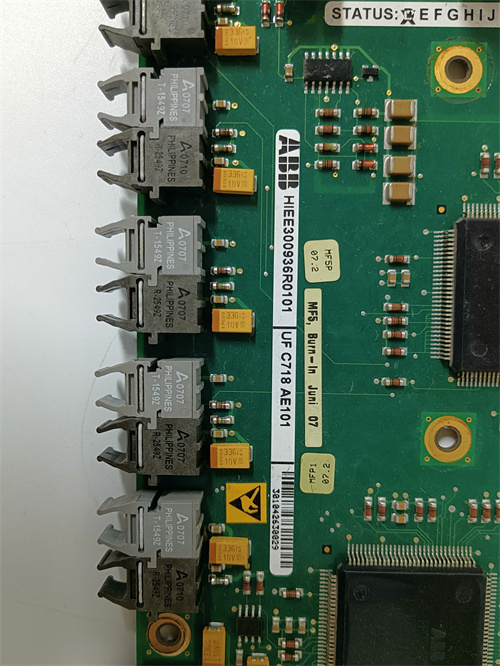

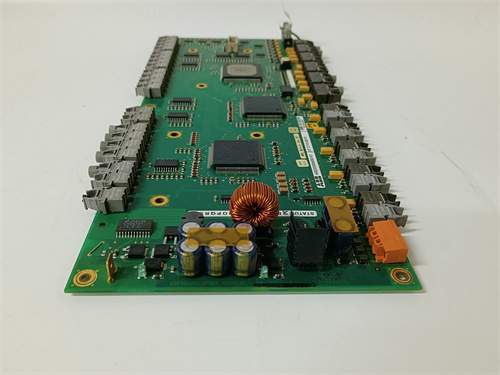

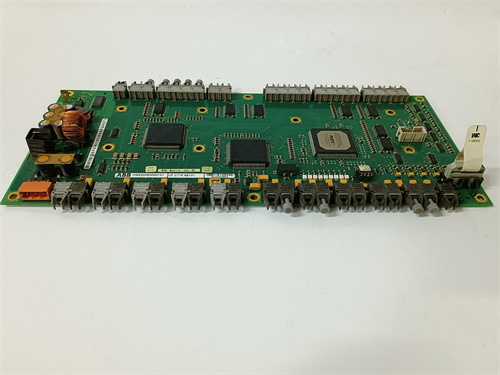

The ABB UFC718AE101 HIEE3009936R0101 is a highly specialized and critical printed circuit board (PCB) assembly, functioning as a Gate Firing Board or Control Interface Module within an ABB power electronic system, most likely for a medium-voltage drive such as the ACS 1000 or a large Static Var Compensator (SVC). This module, identified by the detailed assembly code HIEE3009936R0101, serves as the intelligent interface between the system’s main control unit and the high-power semiconductor switches (such as IGCTs or thyristors). Its primary function is to generate the precisely timed, high-current, and isolated gate pulses required to turn these power devices on and off, while simultaneously monitoring their status and executing hardware-level protection functions. For comprehensive technical schematics, application notes, and safety documentation, please refer to the official product resource: ABB UFC718AE101 HIEE3009936R0101. The reliability of the ABB UFC718AE101 is paramount, as its failure typically results in an immediate system trip and can lead to catastrophic damage to the power stack.

Product Parameters and Specifications

• Function: Gate Drive / Firing Control Board for High-Power Semiconductors.
• System Compatibility: Designed for a specific power cell or phase leg within a large ABB converter system (e.g., ACS 1000, SVC Light).
• Core Technology: Contains high-speed logic, fiber-optic transceivers for receiving firing commands from the central controller, isolated DC/DC power supplies, and high-power gate drive amplifiers for devices like IGCTs or high-voltage IGBTs.
• Protection Functions: Implements nanosecond-level hardware protection, including desaturation detection, short-circuit (over-current) protection, gate monitoring, and temperature monitoring for the power semiconductors.
• Isolation: Provides reinforced isolation (several kilovolts) between the low-voltage control electronics and the high-voltage power circuit, which is essential for safety and noise immunity.
• Feedback: Provides diagnostic feedback (via fiber optics or other means) to the main controller regarding gate command execution, module health, and fault status.
• Form Factor: A complex, multi-layer PCB assembly designed to mount in a specific location adjacent to the power semiconductor module, often with a metal heatsink or housing.

Advantages and Key Features

The ABB UFC718AE101 HIEE3009936R0101 offers the critical advantage of being a genuine, system-optimized interface that guarantees the performance and safety of the power conversion system. It ensures precise, synchronized, and robust switching of the power semiconductors, which is fundamental for system efficiency, output waveform quality, and electromagnetic compatibility (EMC). The module’s integrated ultra-fast hardware protection acts as the ultimate safeguard for expensive power devices, operating faster than any software-based protection loop could. Its use of fiber-optic communication ensures complete immunity to the extreme electromagnetic interference (EMI) present in the power cabinet. Utilizing this exact ABB assembly is the only reliable method to restore original system performance, protection coordination, and reliability, as third-party alternatives cannot replicate the proprietary timing, drive characteristics, and safety margins.

Application Cases in Industry

This gate firing board is used exclusively inside the power cabinets of ABB’s highest-power industrial systems. Key applications include:

• Medium-Voltage Drives (ACS 1000): For controlling motors in mining (gearless mill drives), metals (rolling mills), oil & gas (compressors, pumps), and power generation (boiler feed pumps).
• Static Var Compensators (SVC/SVC Light): For dynamic reactive power compensation and voltage stability in electrical transmission networks and at heavy industrial sites (e.g., arc furnaces, rolling mills).
• High-Power DC Links.
  The failure of a UFC718AE101 module can cause an immediate and costly shutdown of these multi-megawatt systems.

Comparison with Competing Products

1. Genuine ABB System Spare (this board): Guarantees 100% compatibility with the system’s control algorithms, power semiconductor characteristics, cooling, and mechanical layout. It is the only ABB-supported solution.
2. Third-Party “Compatible” or Refurbished Board: Carries extreme and unacceptable risk. Subtle differences in gate pulse timing, shape, protection thresholds, or component quality can lead to uneven current sharing between devices, excessive switching losses, electromagnetic interference (EMI), or a failure to protect during a fault. This can trigger a cascade failure, destroying the power stack.
3. Power Stack or System Replacement: The alternative is to replace the entire power cell or system. This is a monumental capital and engineering project compared to a board-level repair.

The ABB UFC718AE101 HIEE3009936R0101 exists in a domain where the only valid comparison is between certified OEM performance and high risk of catastrophic failure.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Match is Non-Negotiable: The codes UFC718AE101 and HIEE3009936R0101 must be identical to those on the failed module. These define the specific application, voltage level, and hardware revision.
  2. System and Cell Identification: Document the complete system model (e.g., ACS 1000-67-0600, SVC), serial number, and the exact power cell or cabinet designation from which the board was removed.
  3. Root Cause Analysis: A failure at this level is often symptomatic. Investigate for root causes like cooling failure, busbar contamination, insulation breakdown, or external network faults before replacement to prevent immediate re-failure.
  4. Procurement Source: Purchase this component only from ABB’s Power Grids or Industrial Automation services division or their most trusted, authorized global spare parts channel. Authenticity is absolutely critical.
• Important Precautions:
  1. Lethal Voltages Present: These systems operate at medium voltages (2.3kV to 10kV+). Strict, multi-step lock-out/tag-out (LOTO) procedures are mandatory. The DC bus capacitors retain a lethal charge for a long time. Only qualified personnel following ABB’s specific safety procedures may perform this work.
  2. ESD and Contamination Control: The board contains highly static-sensitive components. Use full ESD protection (wrist strap, grounded mat). Maintain a clean environment during replacement to prevent conductive dust from causing future shorts.
  3. Fiber-Optic Handling: Handle fiber-optic cables with extreme care. Do not bend them beyond their minimum radius. Keep connectors impeccably clean. A dirty or damaged fiber will cause communication loss and a system fault.
  4. Post-Replacement Commissioning: After installation, the system must undergo a rigorous commissioning procedure supervised by ABB field engineers. This includes insulation tests, gate pulse verification with an oscilloscope, and low-voltage functional tests before gradually ramping up to full power. Do not energize the system without this professional validation.
