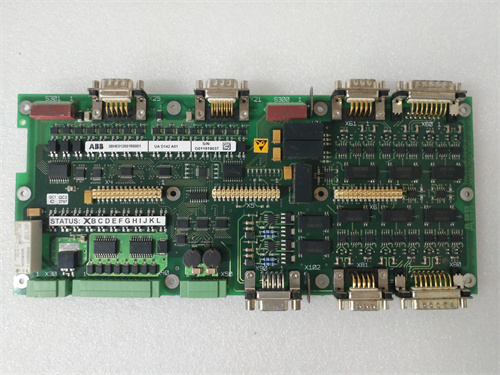

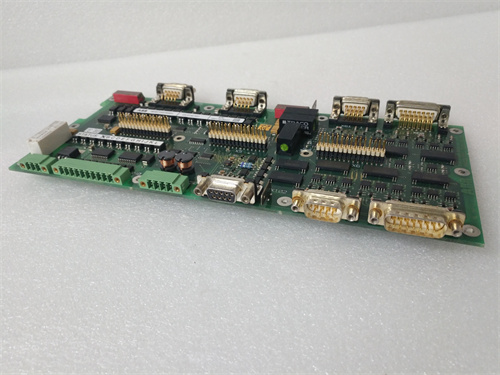

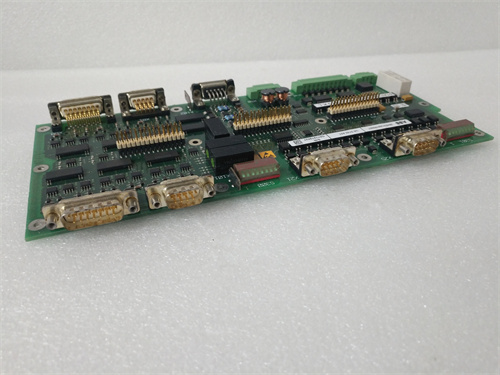

ABB UAD142A01 3BHE012551R0001

Description

Product Overview

The ABB UAD142A01 3BHE012551R0001 is a sophisticated digital output module designed for the AC 800M High Integrity and Safeguard safety controllers, integral to the ABB Ability™ System 800xA. This module is specifically engineered for safety-critical applications, providing high-integrity, fault-tolerant digital outputs to control final elements like solenoid valves, motor contactors, and alarm devices within a Safety Instrumented System (SIS). The primary function of the ABB UAD142A01 3BHE012551R0001 is to convert safety logic commands from the safety controller into isolated and diagnosed switching actions, ensuring a high level of diagnostic coverage to detect dangerous failures. For comprehensive safety manuals, certification documents, and configuration guides, please refer to the official product resource: ABB UAD142A01 3BHE012551R0001. The deployment of this module is critical in processes where a failure to correctly execute a shutdown or safety action could lead to a hazardous event.

Product Parameters and Specifications

• Function: High-Integrity / Safety Digital Output Module for AC 800M HI/Safeguard.
• Safety Standard: Designed and certified according to IEC 61508, suitable for use in Safety Instrumented Systems (SIS) up to SIL 3.
• Architecture: Typically based on a 1oo2D (one-out-of-two with diagnostics) or similar redundant architecture with continuous self-testing to achieve a high Safe Failure Fraction (SFF).
• Output Type: Provides solid-state (transistor) outputs or relay outputs with diagnostics. Solid-state outputs are common for their fast response and diagnostic capabilities.
• Number of Channels: Commonly configured with 8 or 16 safety-rated output channels.
• Diagnostic Coverage: Very High (typically >90%). Diagnostics include cross-circuit monitoring, load current monitoring, short-circuit detection, open-circuit (wire-break) detection, and internal circuit supervision.
• Output Rating: Each channel is rated for a specific voltage (e.g., 24V DC) and current (e.g., 2A), with appropriate ratings for switching inductive loads.
• Isolation: Provides galvanic isolation between the field side and the controller’s internal safety bus.
• Response Time: Fast and deterministic de-energization time, which is a critical parameter for achieving the required Safety Instrumented Function (SIF) process safety time.
• Configuration: Configured using ABB’s Safeguard Designer or Control Builder M Professional safety engineering tools.

Advantages and Key Features

The ABB UAD142A01 3BHE012551R0001 offers significant advantages for safety applications. Its foremost feature is its certified safety integrity (SIL 3 capability) achieved through redundant internal channels and comprehensive diagnostics, ensuring dangerous faults are detected and the module can be brought to a safe state. The advanced diagnostic suite goes beyond simple on/off detection, identifying failures such as welded contacts, shorted outputs, or open wiring that could prevent a safety action. The module supports flexible and safe output configurations, including pulsed testing of outputs to verify health without changing the output state. Seamless integration within the System 800xA and Safeguard environment allows for unified engineering, operation, and maintenance of both basic process control and safety systems. Using the genuine ABB UAD142A01 module ensures preservation of the overall SIS’s safety certification and full support from ABB.

Application Cases in Industry

This safety output module is deployed in SIS and Emergency Shutdown (ESD) systems across high-hazard industries. In Oil & Gas, the UAD142A01 operates emergency shutdown valves (ESDVs) and blowdown valves on offshore platforms and in refineries. Within Chemical and Petrochemical Plants, it controls isolation valves for reactor feeds or initiates deluge systems. In Power Generation, it acts on fuel shut-off valves in turbine protection systems. The module is also used in Burner Management Systems (BMS) and in any process where a safety controller must reliably de-energize equipment to achieve a safe state.

Comparison with Competing Products

• vs. Standard PLC Digital Output Modules: Standard modules are designed for control, not safety. They lack the redundant architecture and high diagnostic coverage required for SIL 2/3 applications. The UAD142A01 is in a specialized class for safety instrumented functions.
• vs. Dedicated Safety Relays: Traditional safety relays are hardwired for specific functions. The UAD142A01 is a programmable, modular component of a safety PLC, offering greater flexibility, more sophisticated diagnostics, and easier integration into a centralized safety system.
• vs. Other Safety System Vendor I/O (e.g., HIMA, Triconex): These are direct competitors. The ABB UAD142A01 is differentiated by its native integration with the AC 800M HI/Safeguard controller and the 800xA ecosystem, offering a unified engineering experience for combined DCS/SIS environments. Competitors may offer different diagnostic methods or form factors.

Selection Suggestions and Precautions

• Selection Advice:
  1. Safety Loop Classification: Select the ABB UAD142A01 when the Safety Instrumented Function (SIF) requires a SIL 2 or SIL 3 classification. Verify its PFDavg (Probability of Failure on Demand) and SFF values are suitable for your SIF’s target.
  2. Controller Compatibility: Ensure the module is compatible with your specific AC 800M High Integrity or Safeguard controller and firmware version.
  3. Load Characterization: Analyze the field device (e.g., solenoid valve) for inrush and holding current. Ensure the module’s output rating is sufficient and plan for external fusing.
  4. Diagnostic Requirements: Understand the diagnostic features (like pulsed test) and ensure they are compatible with your field devices to avoid unintended operation during testing.
• Important Precautions:
  1. Safety Lifecycle Compliance: Installation, configuration, and validation must be performed by qualified safety personnel within a certified functional safety management process.
  2. External Fusing: Each output or group of outputs must be protected by an external, properly rated fuse as specified in the manual to protect the module’s internal electronics from field-side short circuits.
  3. Inductive Load Suppression: When switching inductive loads, use appropriate suppression devices (flyback diodes for DC, RC snubbers for AC) installed at the load to protect the module’s outputs from voltage transients.
  4. Proof Testing: Despite high diagnostics, a periodic proof test of the entire safety loop (including the UAD142A01 output and the final element) is required at intervals defined by the safety validation to reveal dangerous undetected faults.
